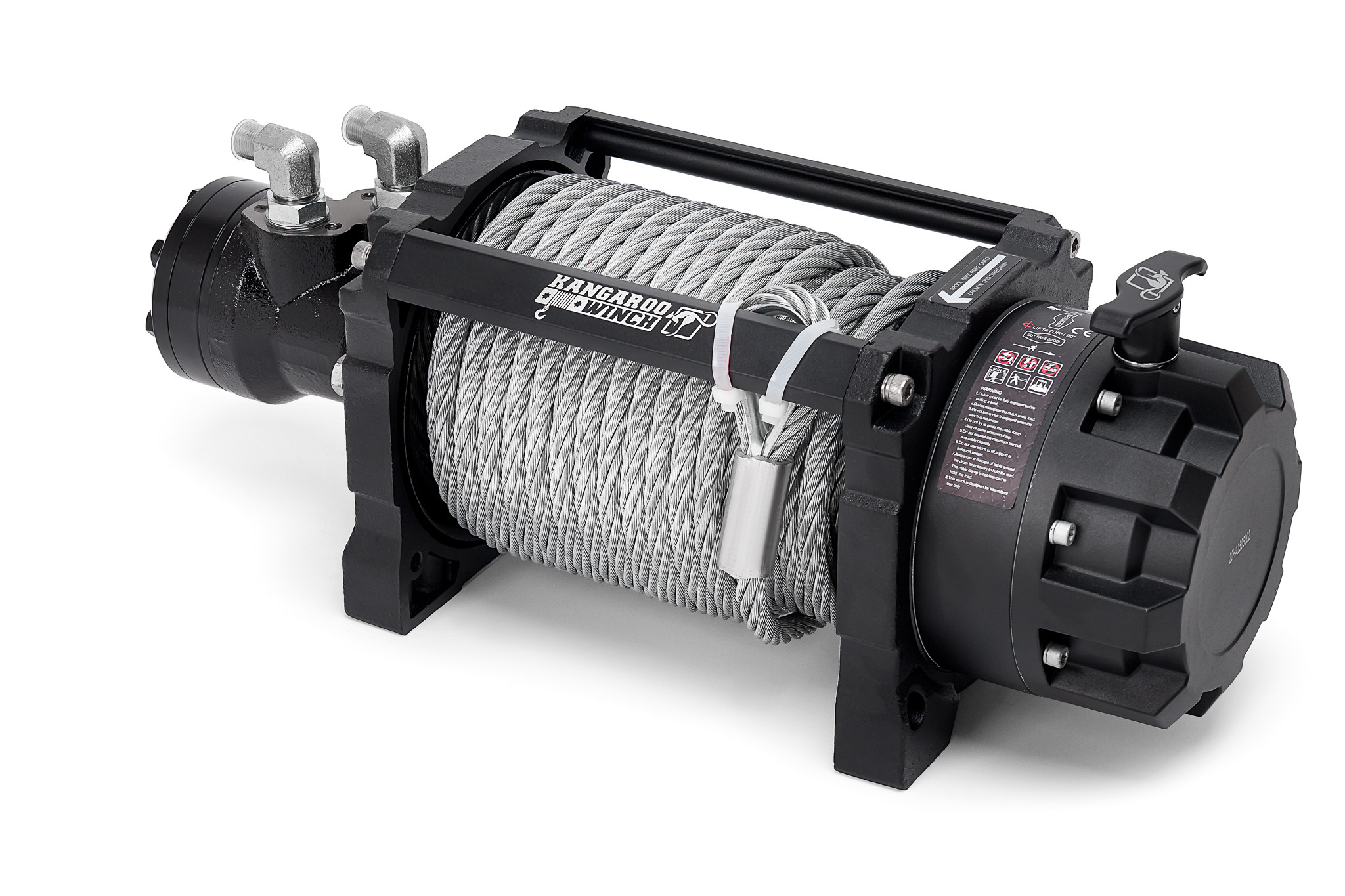

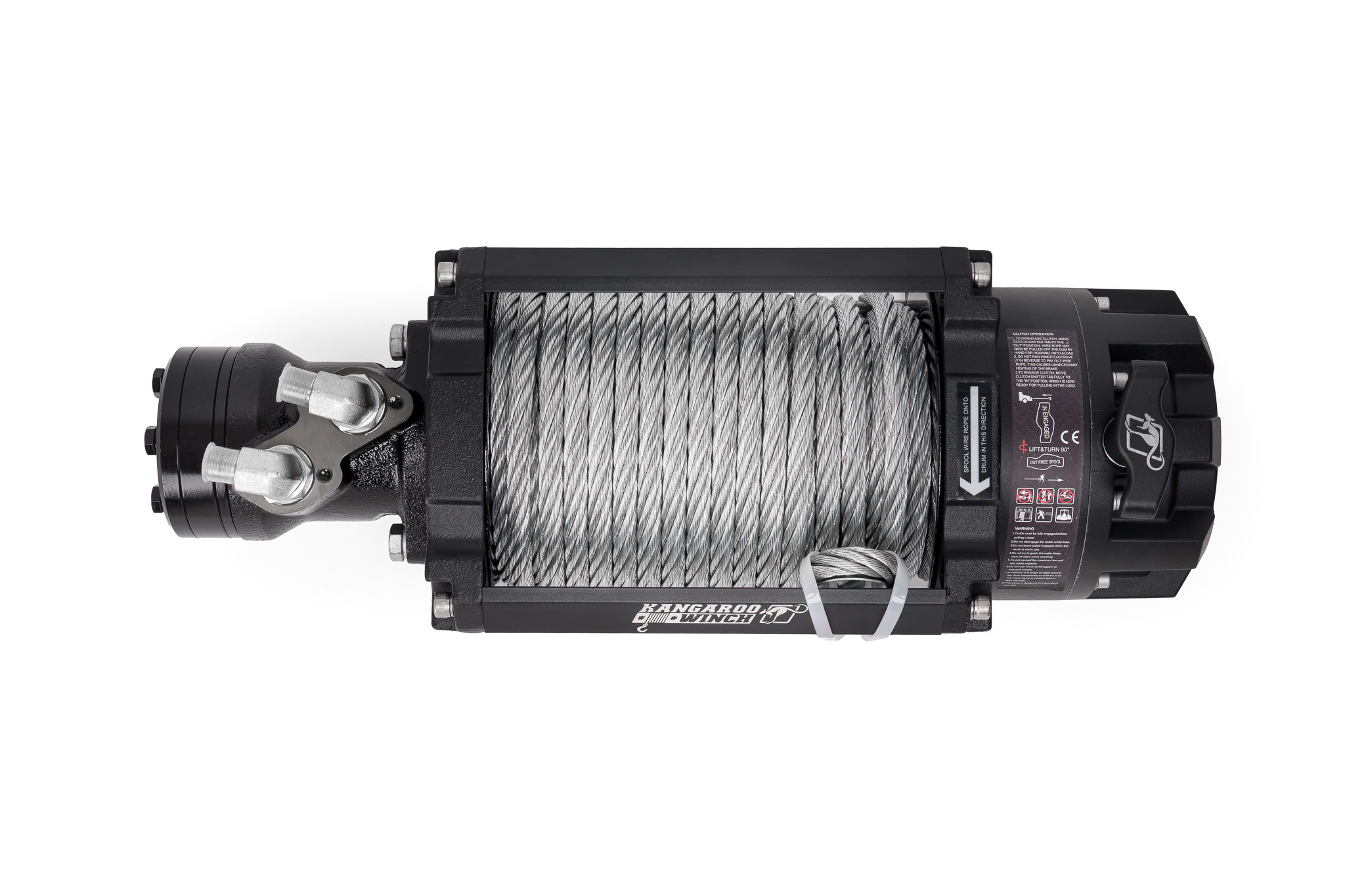

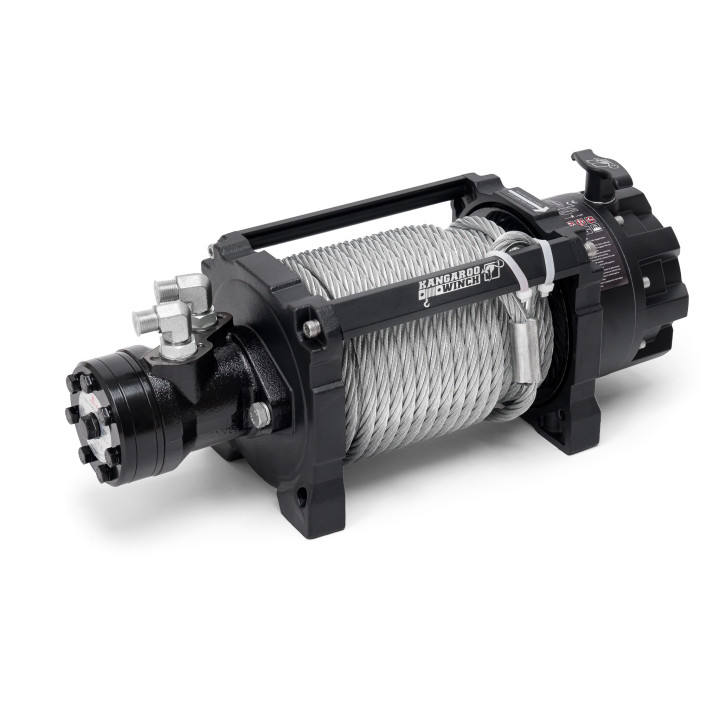

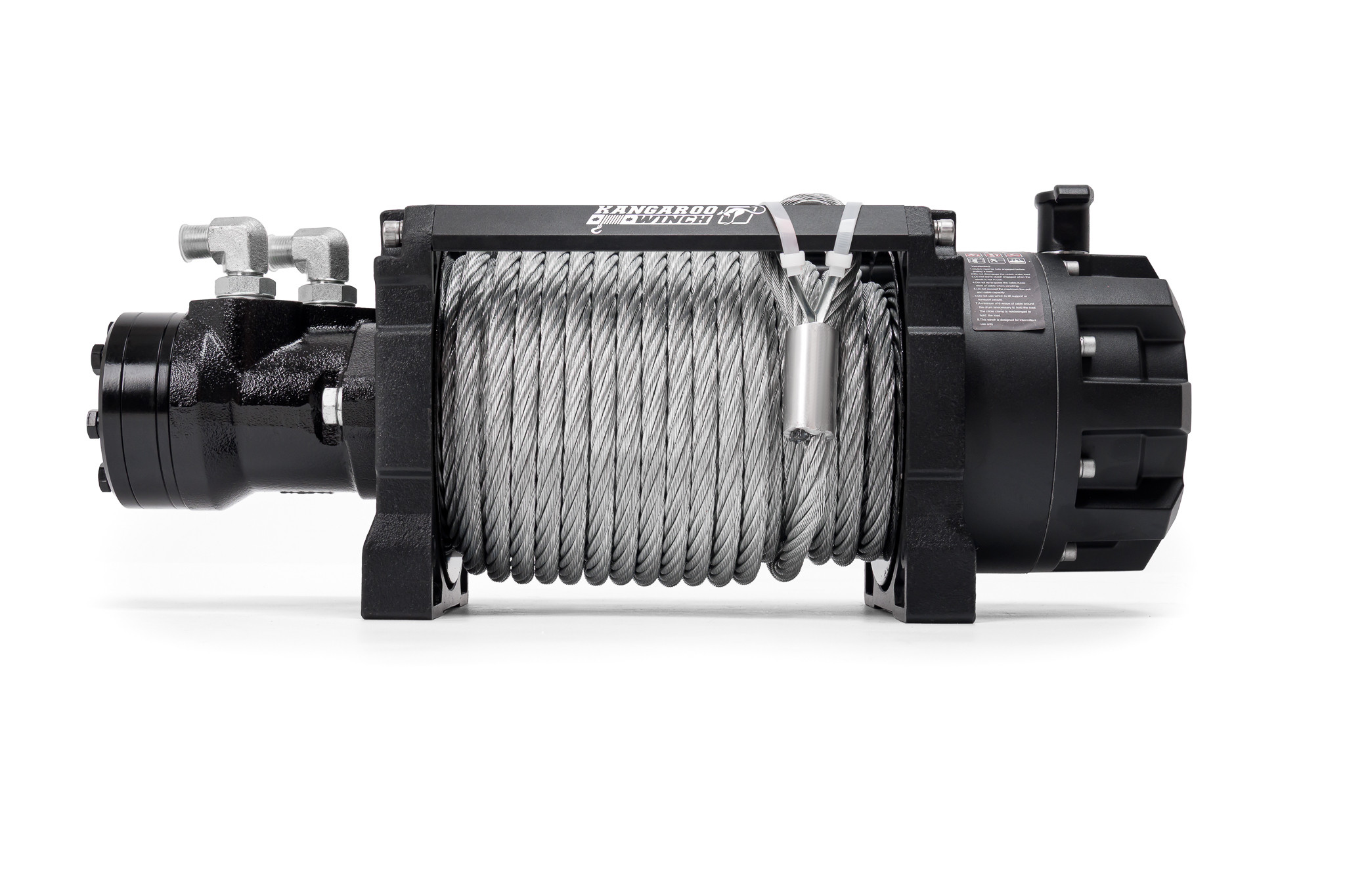

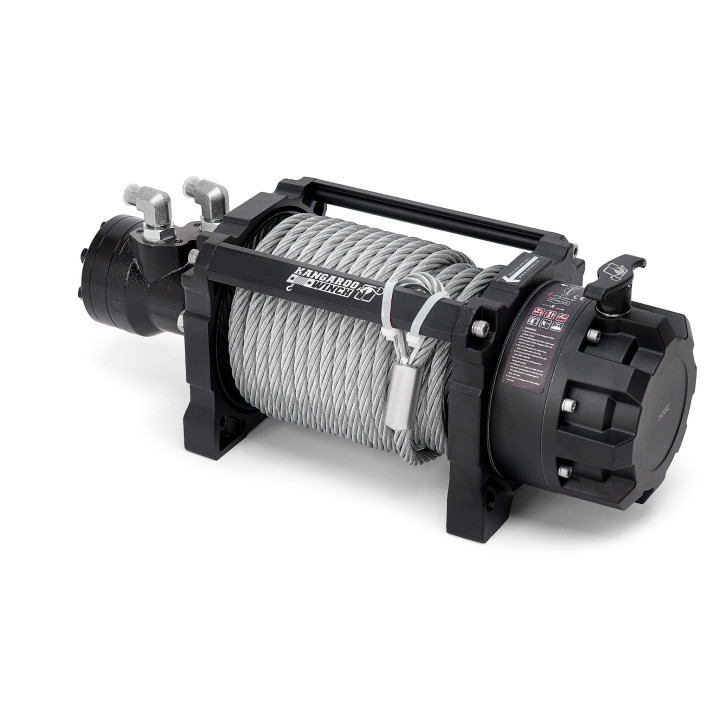

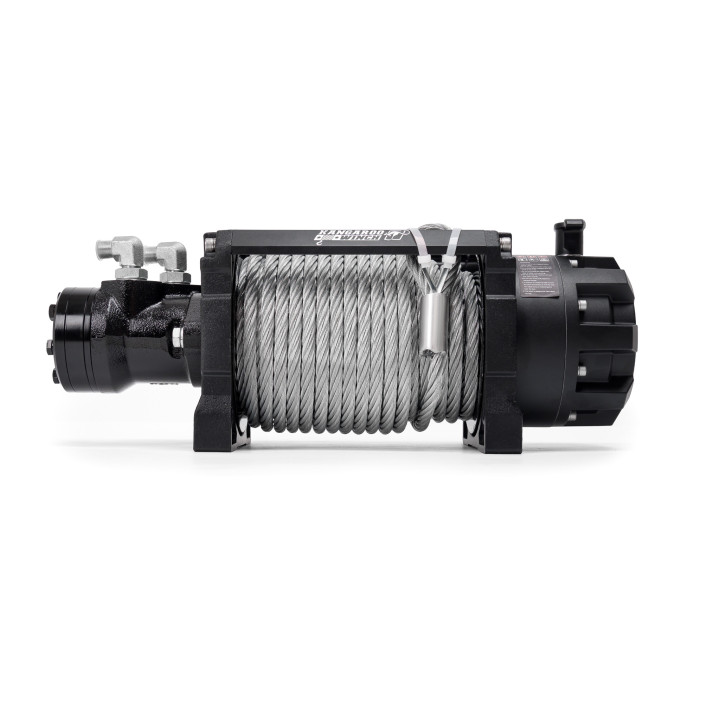

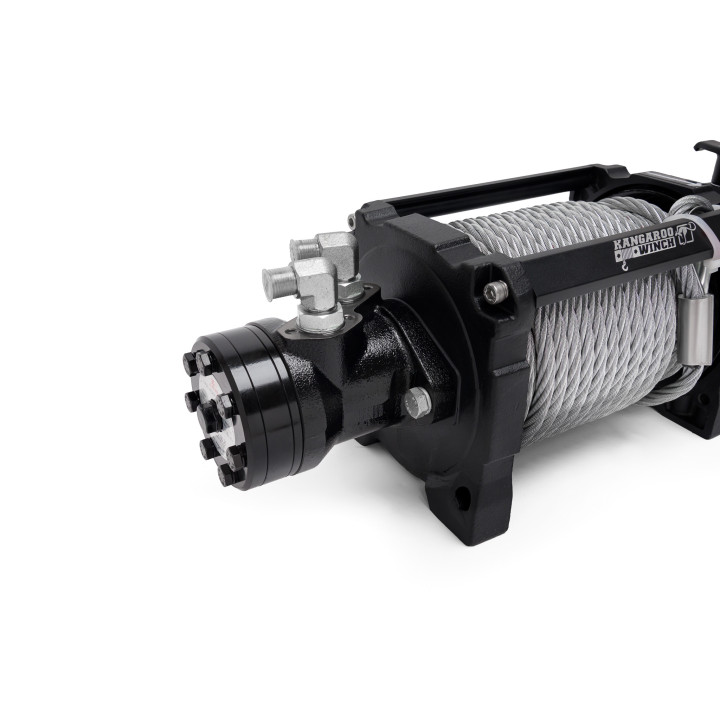

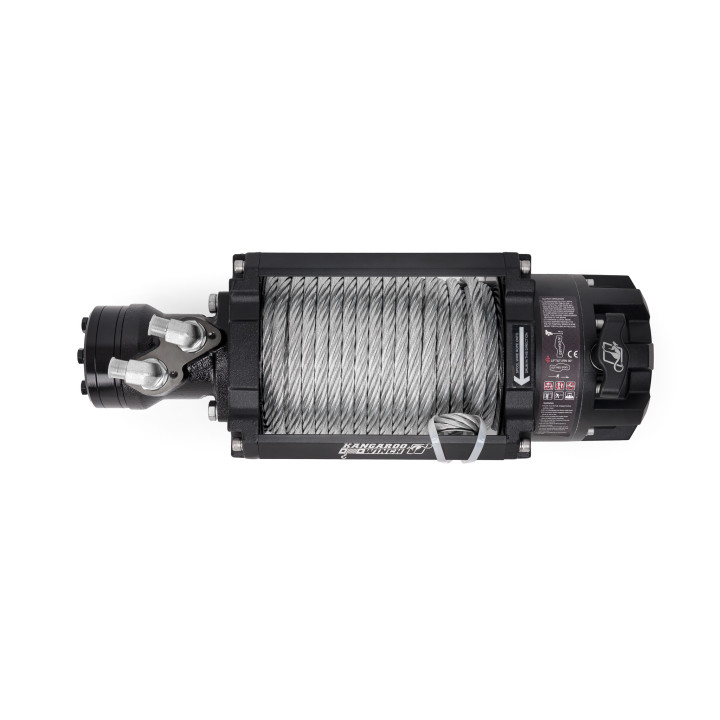

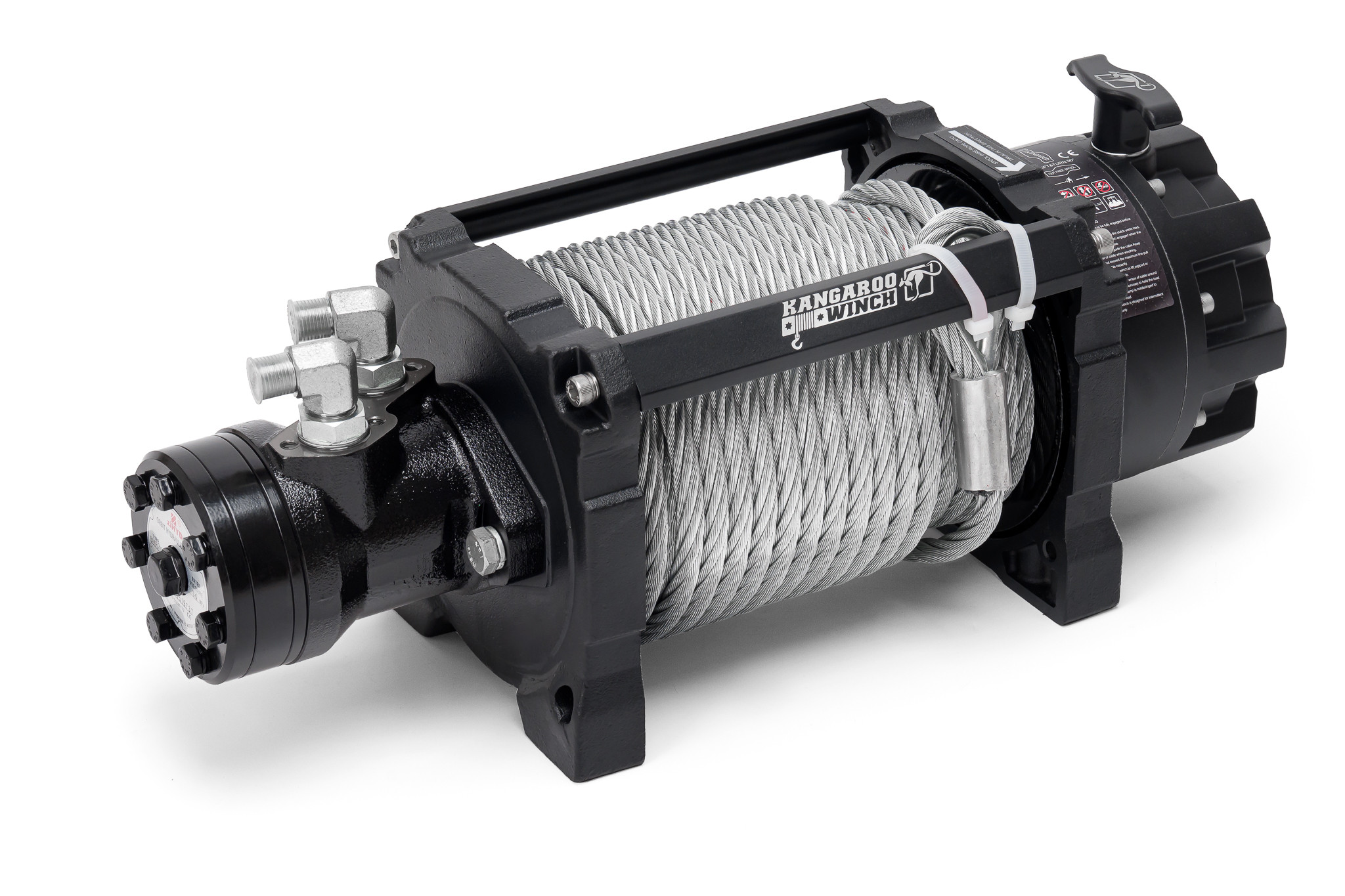

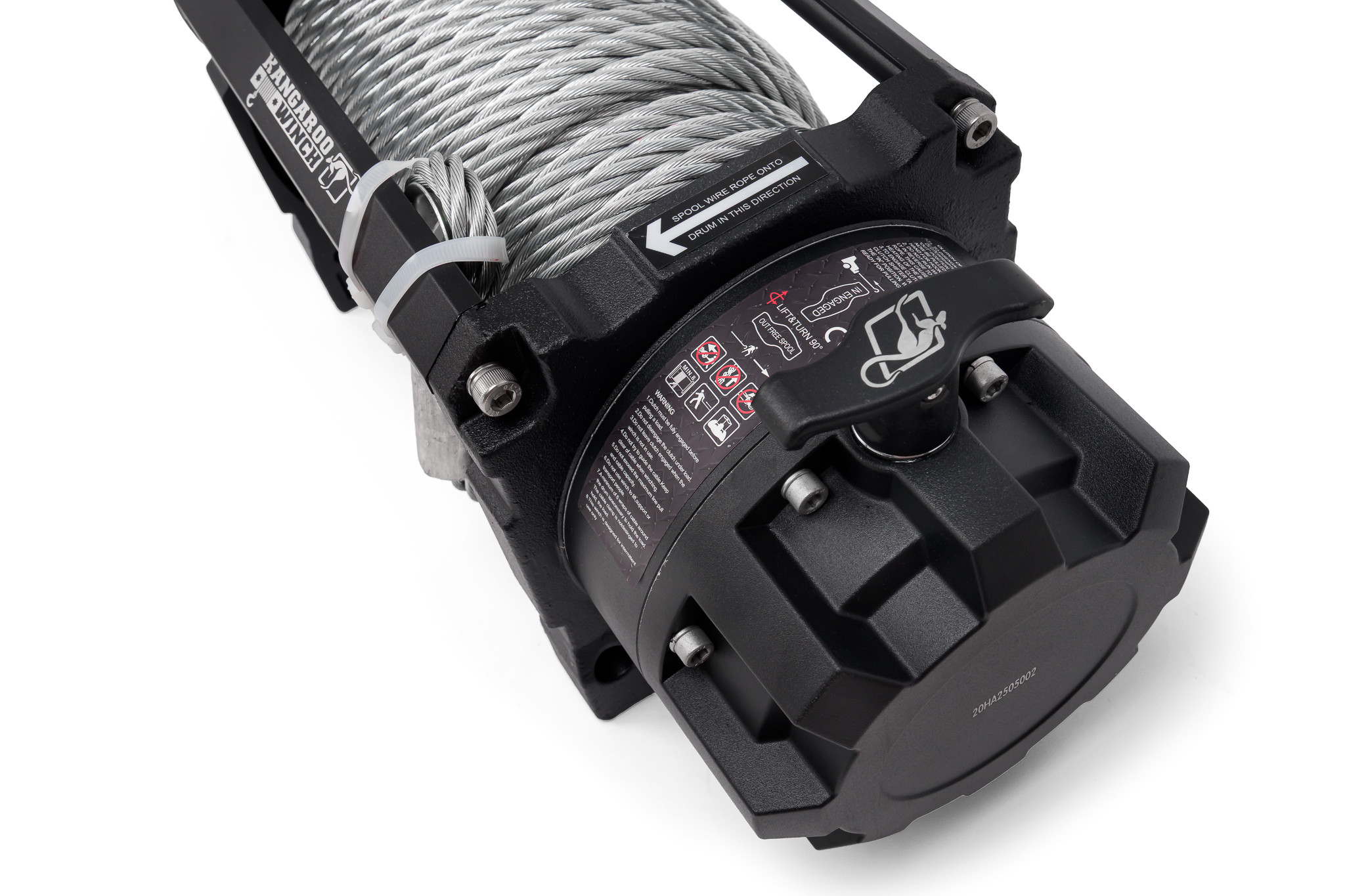

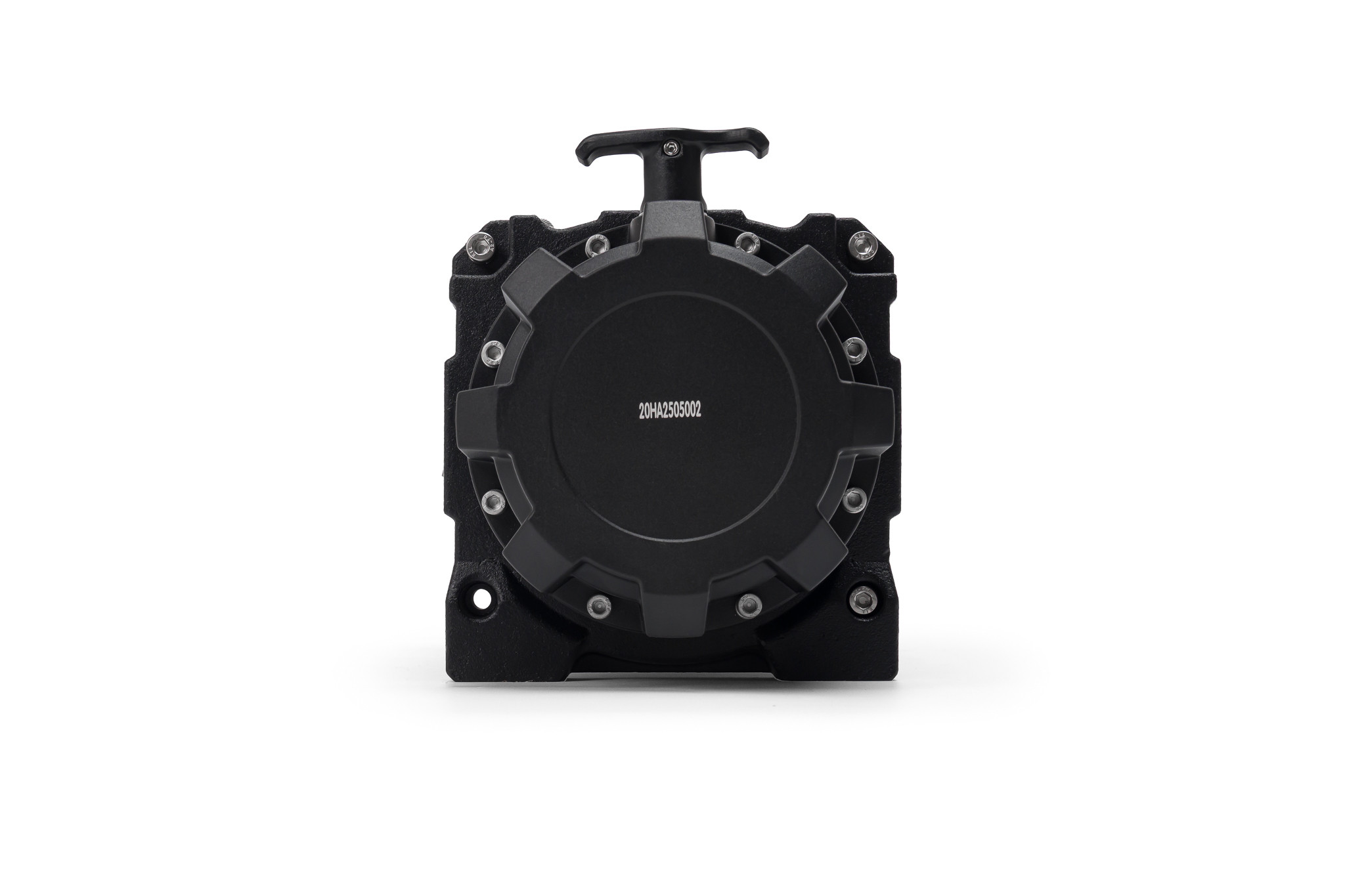

Kangaroo Winch K20000H-XP-12 Hydraulic Winch 9,080kg 24V

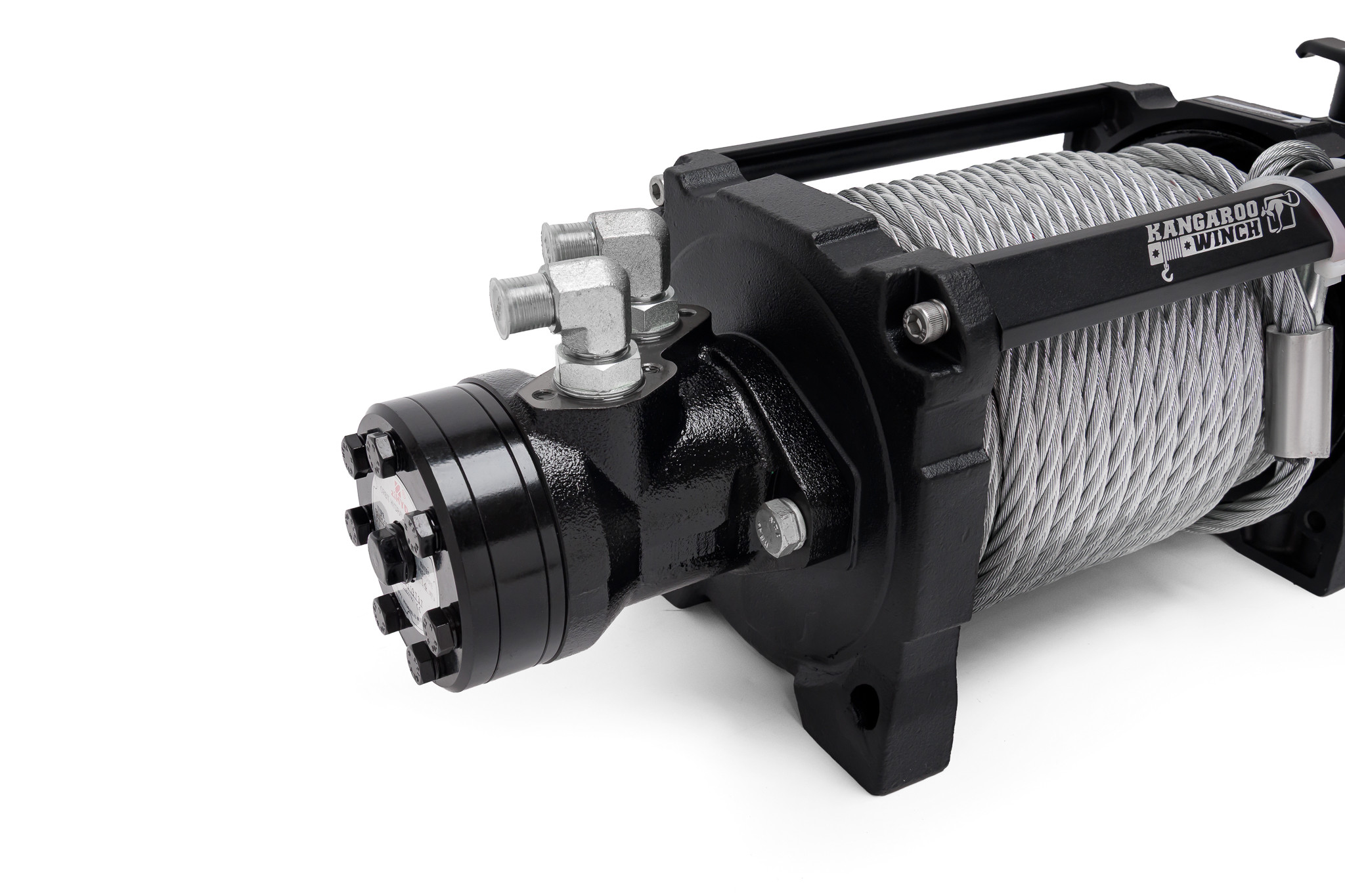

The Kangaroo Winch K20000H-XP-24 hydraulic winch is built for trucks, construction and agricultural machinery, and special-purpose vehicles with a 24V electrical system, operating in the most demanding conditions. Powered directly by the vehicle's hydraulic circuit, it can run continuously with no cooldown periods and no risk of draining the battery. Oil-flow direction (rope in/out) is controlled by a 24V DC solenoid valve, compatible with the electrical system of trucks, working machinery and special-purpose vehicles.

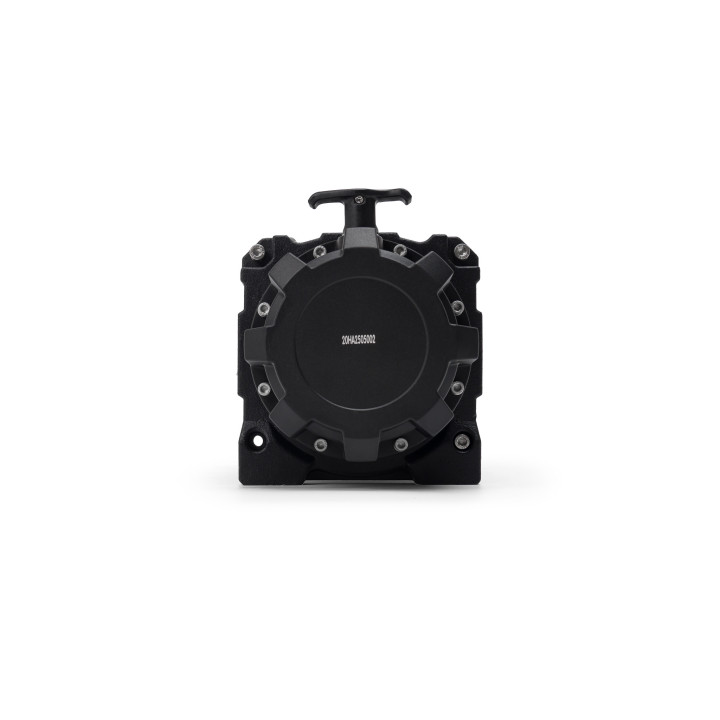

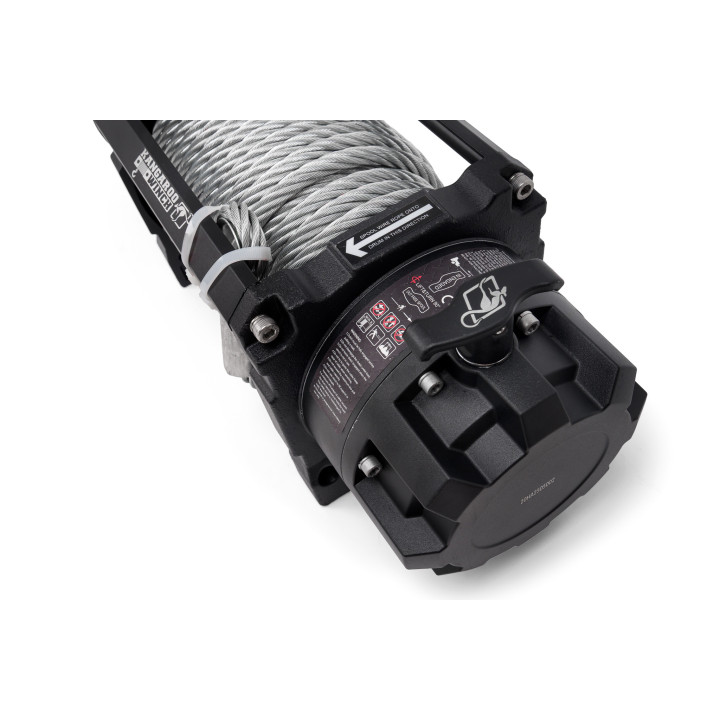

With a rated pull of 20,000 lb (9,080 kg), it safely recovers heavy vehicles, while the 2-stage planetary gear train with a 22:1 ratio delivers strong pulling force in a compact housing. A fully automatic brake, engaged under load, keeps the rope securely locked at every stage of operation, and the rotating ring-gear clutch allows quick free-spooling of the drum.

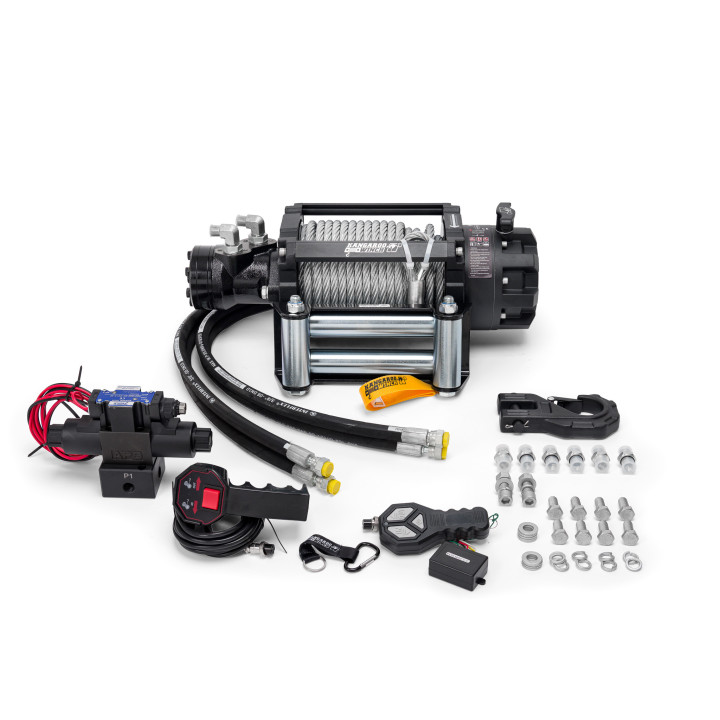

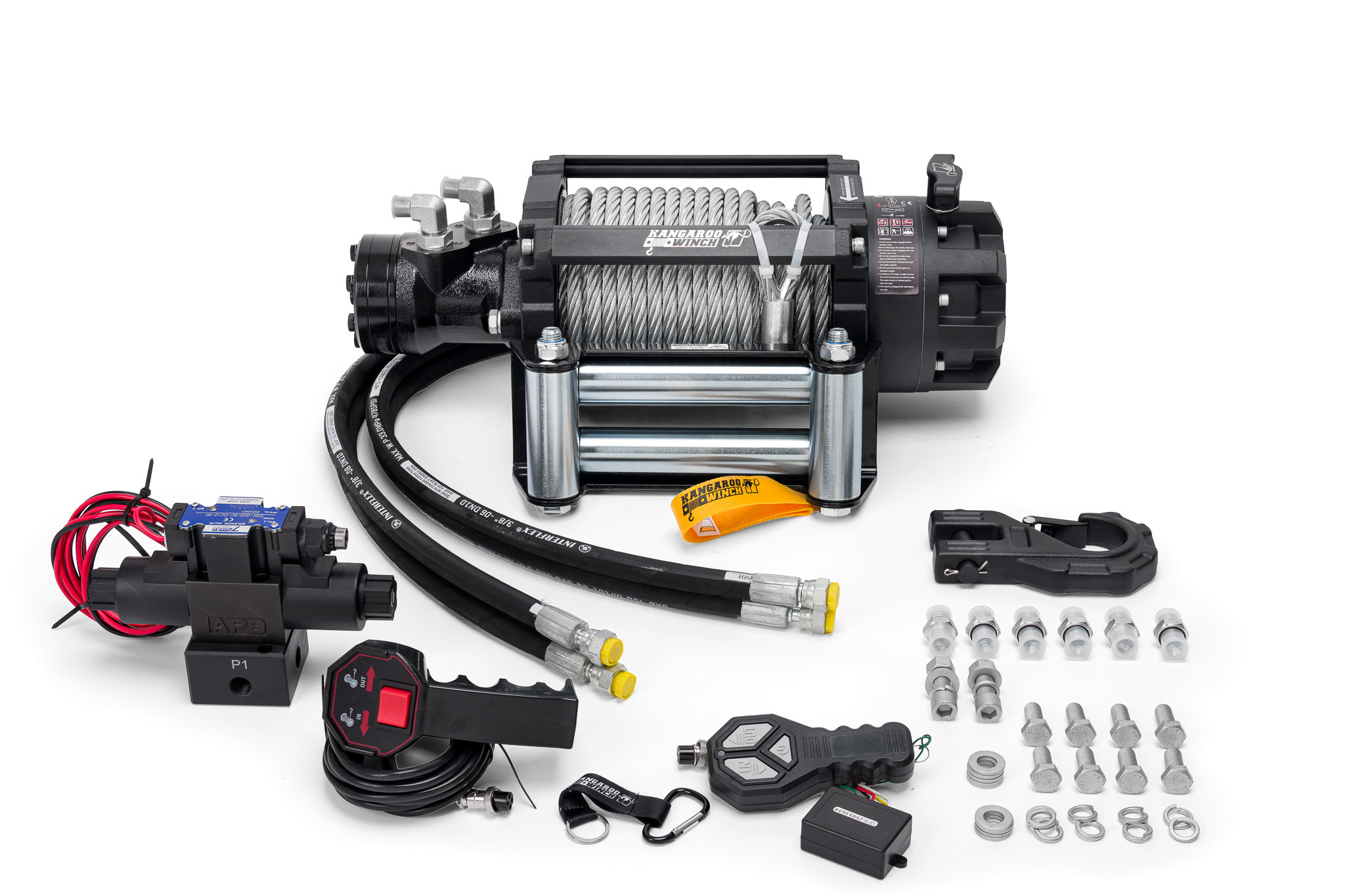

The winch comes fitted with a 12 mm x 26 m steel rope guided through a 4-way roller fairlead, and offers two independent control options — a wired control panel and a wireless remote.

Technical specifications:

• Model: Kangaroo Winch K20000H-XP-24
• Control solenoid valve: 24V DC
• Rated pull: 20,000 lb (9,080 kg)

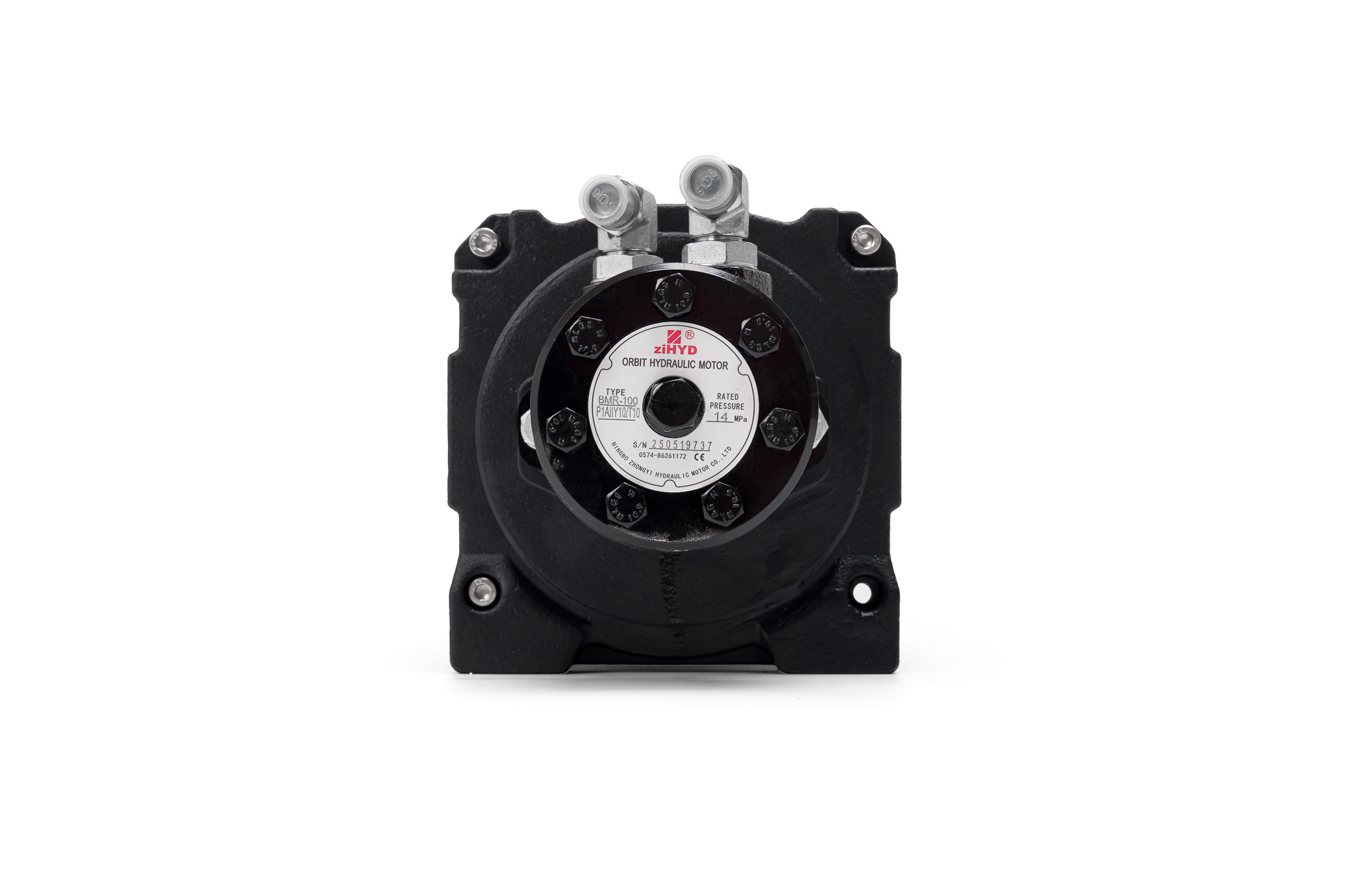

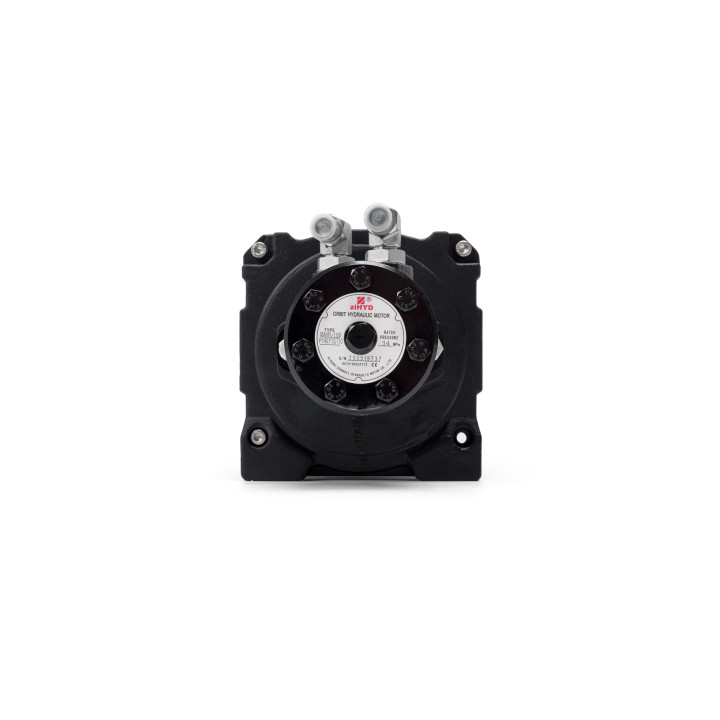

• Hydraulic motor: 100 cc/rev
• Max pressure: 14 MPa
• Oil flow: 5–60 L/min
• Gear train: 2-stage planetary, 22:1 ratio
• Clutch: rotating ring gear
• Brake: fully automatic, load-holding
• Drum size: Ø88 x 224 mm
• Rope: 12 mm x 26 m steel cable
• Fairlead: 4-way roller
• Control: wired and wireless (remote)
• Weight: 69 kg
• Overall dimensions: 550 x 192 x 224 mm
• Mounting bolt pattern: 254 x 114.3 mm / 254 x 165.1 mm, 8 bolts
