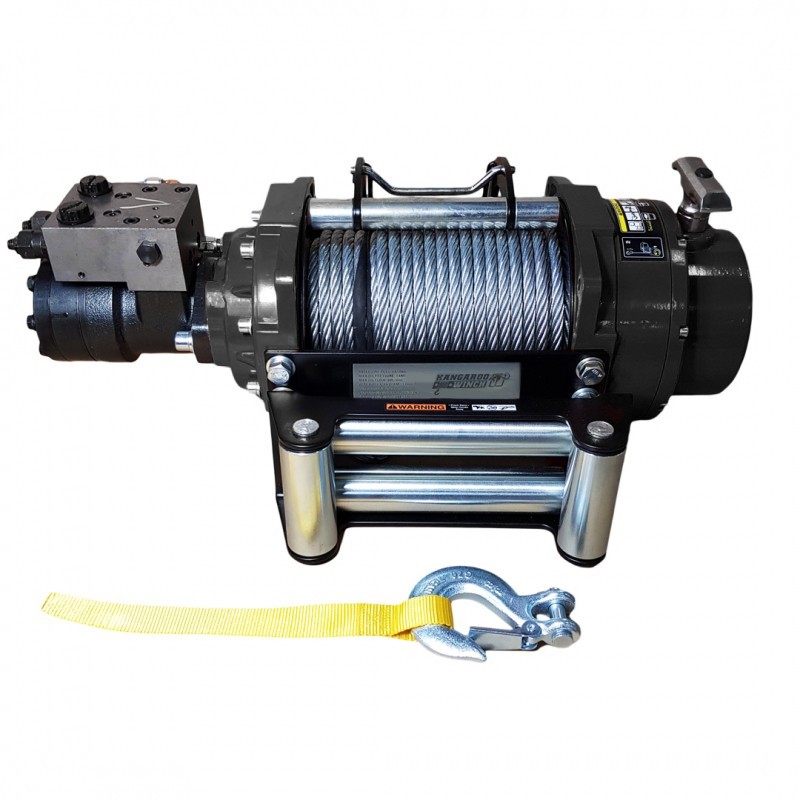

Hydraulic winch PWH8000 PRO EN14492-1 with steel rope, hook and tensioner
Reference: PWH8000 PRO
EAN: 2010000030080
Podmiot odpowiedzialny za ten produkt na terenie UE:
Terenowiec Sp. z o.o. Zobacz adres
Description
Hydraulic winch PWH8000 PRO EN14492-1 with steel rope, hook and tensioner
The hydraulic winch, in contrast to the electric one is designed to handle much heavier elements at which precision and power are the most important.
Hydraulic winches are powered by hydraulic drive from electric or combustion engines. Depending on their purpose, their size may vary. In our store there are Powerwinch products, reliable hydraulic winches from a manufacturer with over 20 years of experience in the industry. Due to the purpose, winches should be equipped with steel ropes and appropriate hooks.
The hydraulic winch is the basic equipment for special service vehicles - ambulance, fire brigade, road assistance, as well as off-road vehicles. In this aspect, it is not only forest and rescue service vehicles, but also private 4x4 vehicles. In each of these cases, the hydraulic winch is a key piece of equipment that can not only save your life, but in the sport dimension will allow you to overcome the planned route and all the problems on it. Winches are built in accordance with all standards of the EU Commission on Standardization, including the latest EN 14492-1 standard.
# | Spec | Value |
---|---|---|
1 | Rated line pull | 3632 kg |
2 | Warranty | 2 years |
3 | Gearing | Planetary |
4 | Gear ratio | 16,9:1 |
5 | Brake | Automatic, hydraulic |
6 | Line | steel |
7 | Fairlead | Not included |
8 | Dimensions | 627 x 250 x 240 mm |
9 | Drum dimensions | 90x 220 mm |
10 | Mounting bolt pattern | 254 x 114,3 mm / 254 x 165,1 mm |
11 | Weight | 72 kg |
12 | Max pressure | 14 Mpa |
13 | MaxFlow | 60 l/min. |
