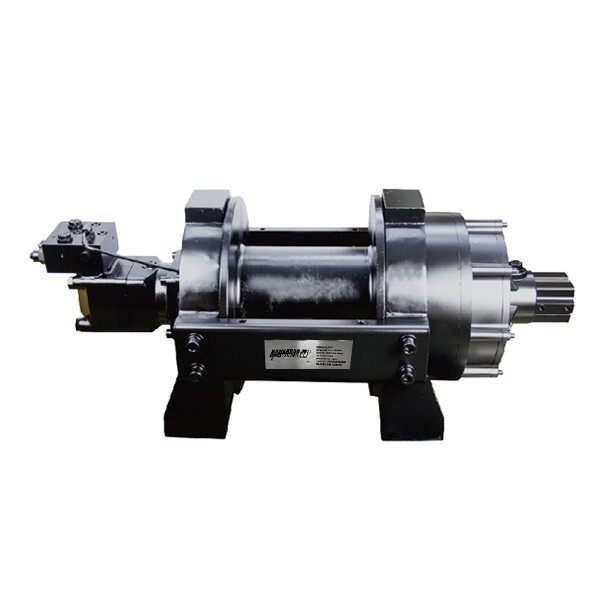

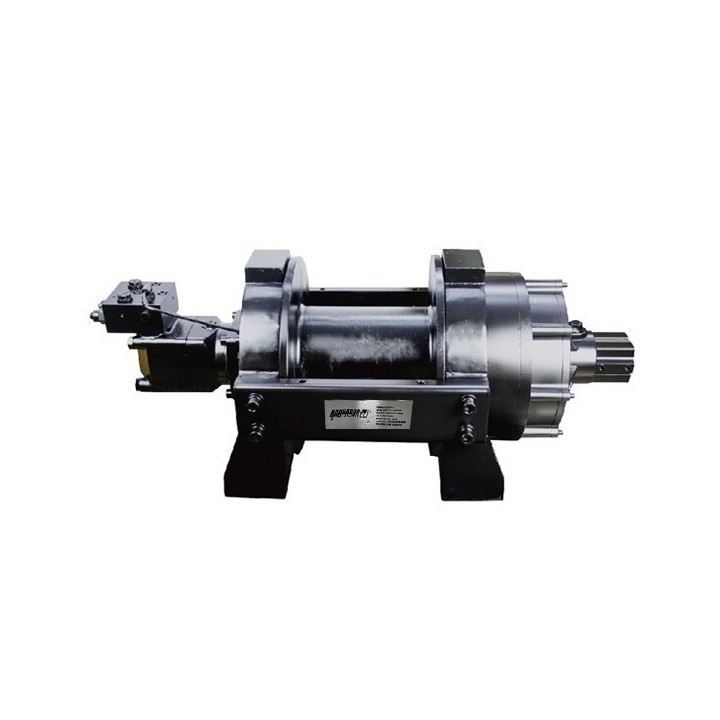

Hydraulic winch KWH30000 PRO EN14492-1 with tensioner
Reference: KWH30000 PRO
Description
Hydraulic winch KWH30000 PROEN14492-1 with tensioner
The hydraulic winch, in contrast to the electric one is designed to handle much heavier elements at which precision and power are the most important.
Hydraulic winches are powered by hydraulic drive from electric or combustion engines. Depending on their purpose, their size may vary. In our store there are Kangaroowinch products, reliable hydraulic winches from a manufacturer with over 20 years of experience in the industry. Due to the purpose, winches should be equipped with steel ropes and appropriate hooks.
The hydraulic winch is the basic equipment for special service vehicles - ambulance, fire brigade, road assistance, as well as off-road vehicles. In this aspect, it is not only forest and rescue service vehicles, but also private 4x4 vehicles. In each of these cases, the hydraulic winch is a key piece of equipment that can not only save your life, but in the sport dimension will allow you to overcome the planned route and all the problems on it. Winches are built in accordance with all standards of the EU Commission on Standardization, including the latest EN 14492-1 standard.
# | Spec | Value |
---|---|---|
1 | Rated line pull | 13608 kg |
2 | Warranty | 2 years |
3 | Gearing | Planetary |
4 | Gear ratio | 30.4:1 |
5 | Brake | Automatic, hydraulic |
6 | Line | Not included |
7 | Fairlead | Not included |
8 | Dimensions | 947 x 486 x 408 mm |
9 | Drum dimensions | 190 x 254 mm |
10 | Mounting bolt pattern | 342.9 x 292 mm / 457.2 x 292 mm |
11 | Weight | 260 kg |
12 | Max pressure | 12 Mpa |
13 | MaxFlow | 70 l/min. |
