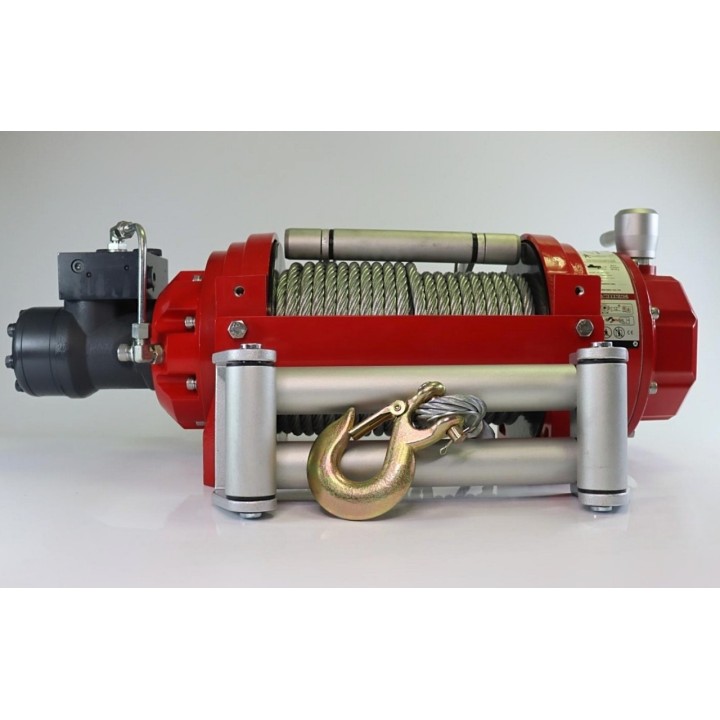

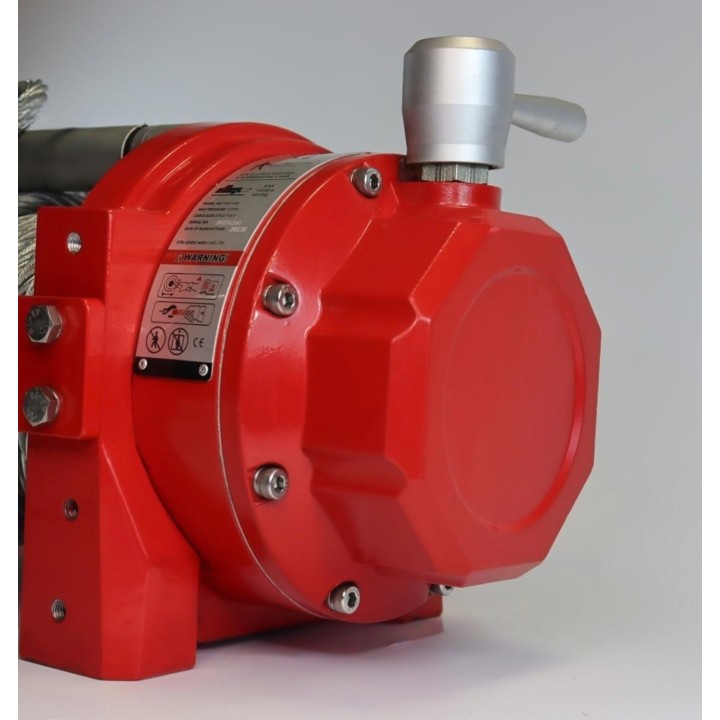

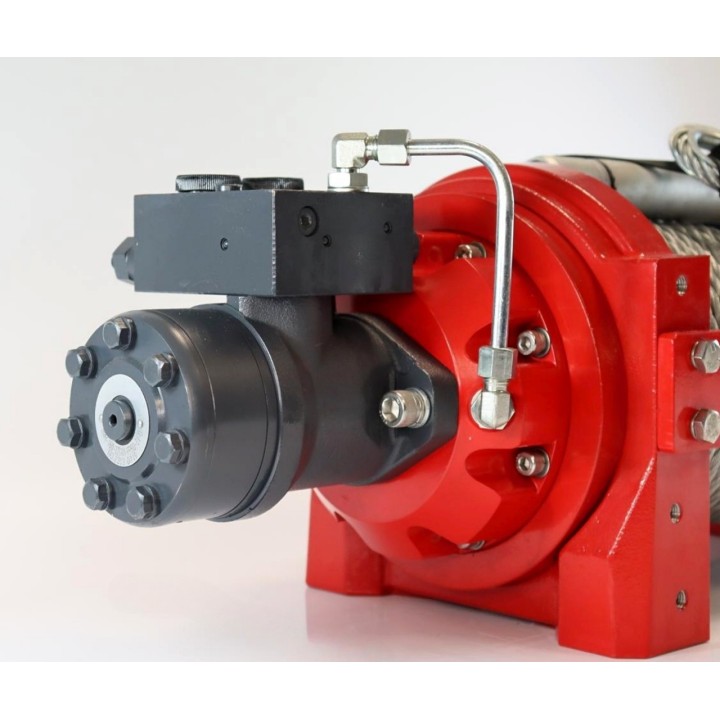

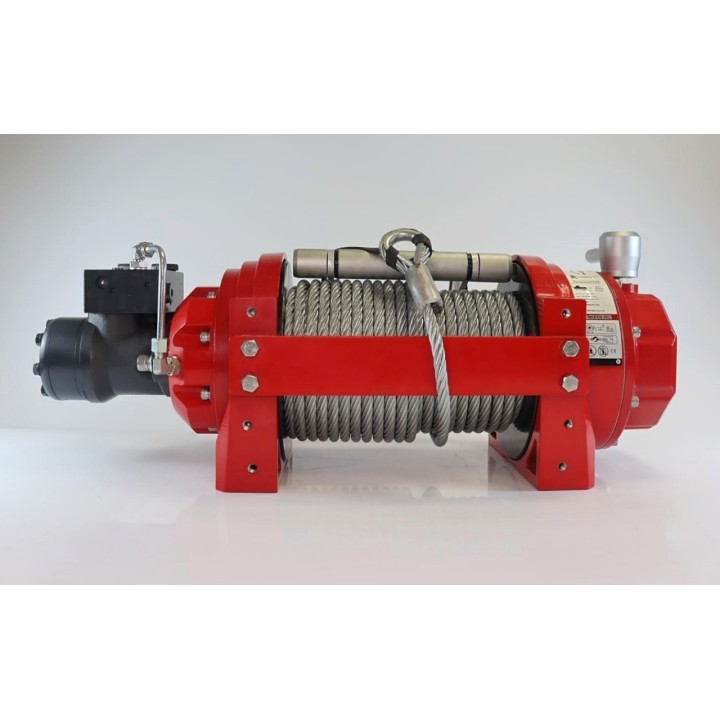

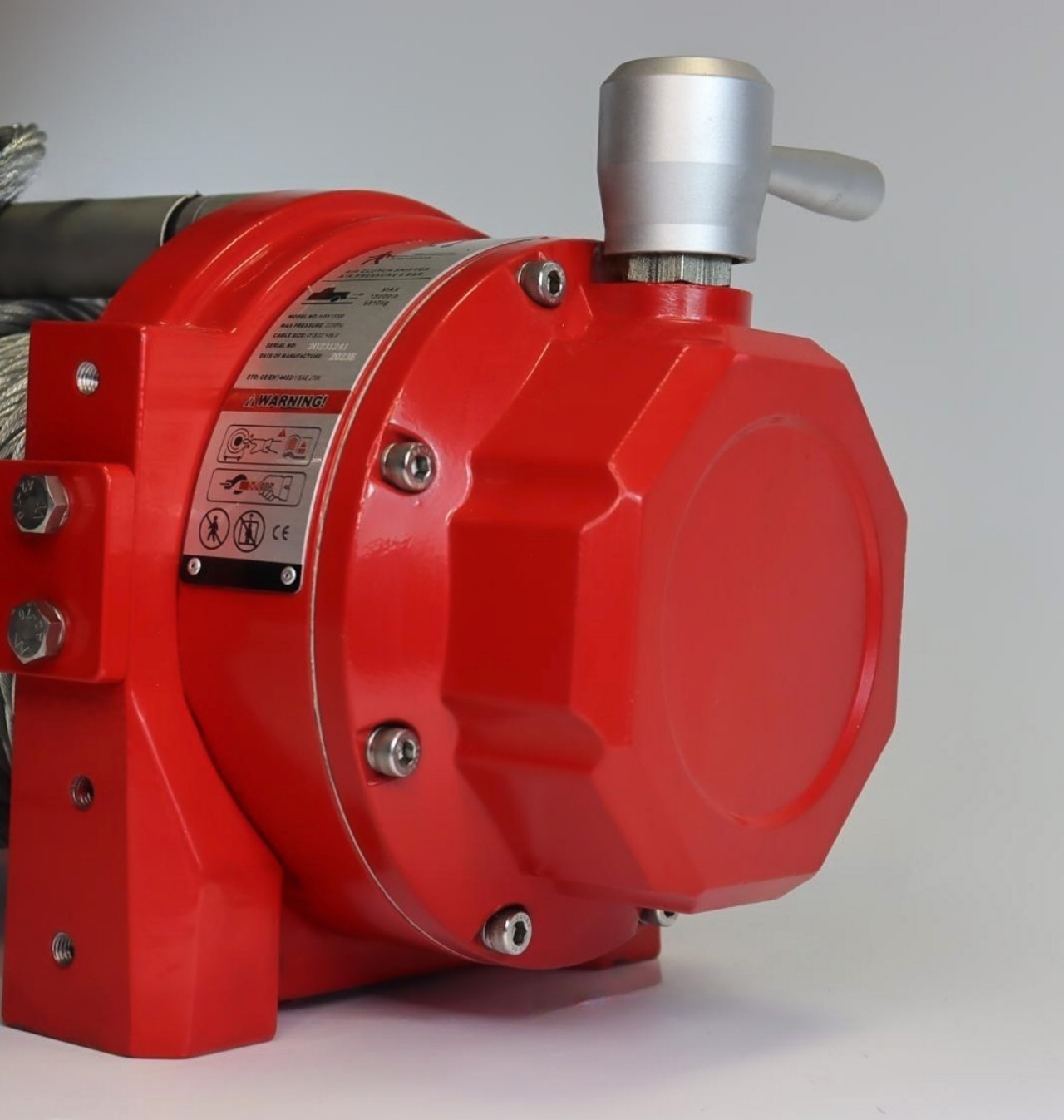

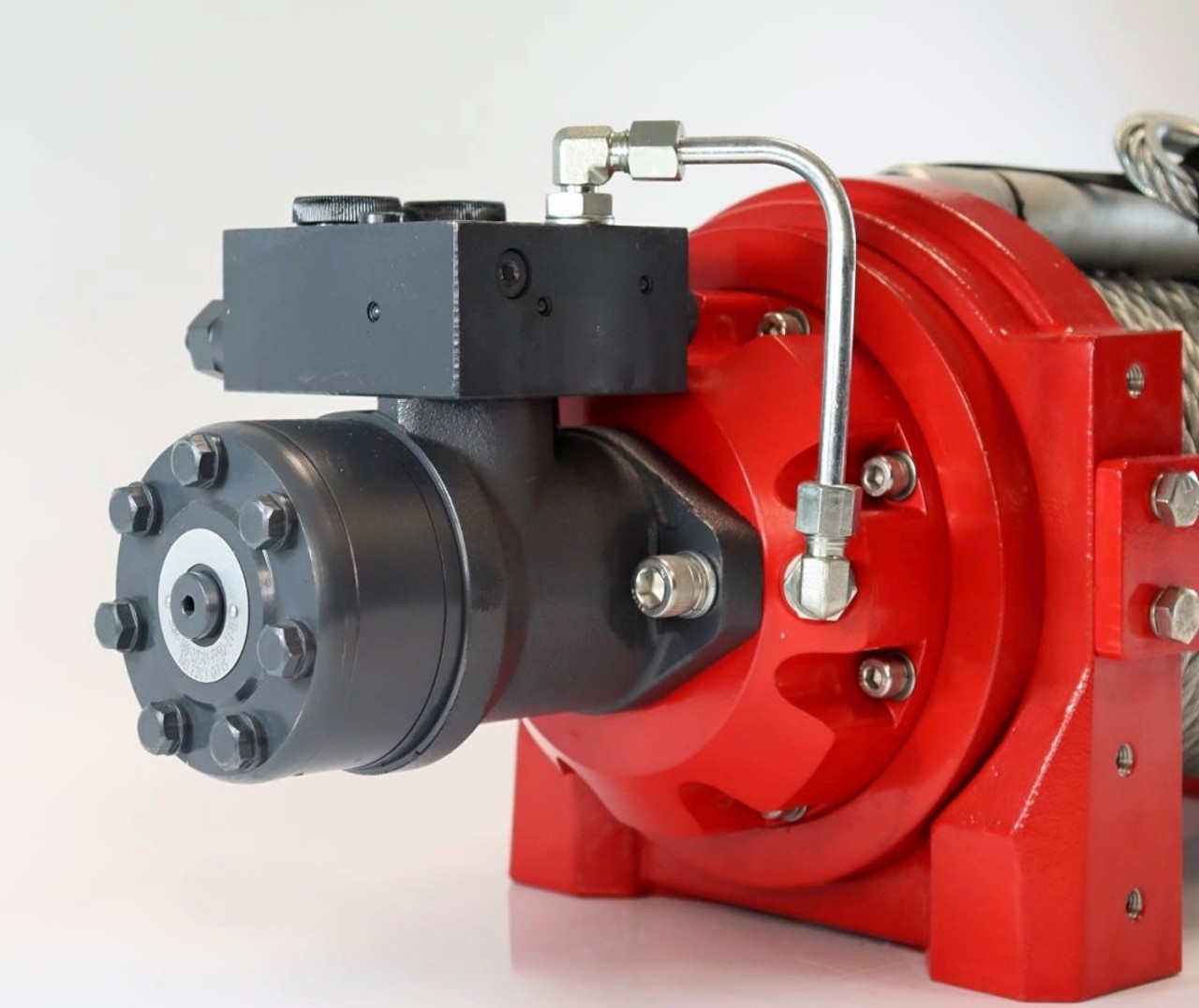

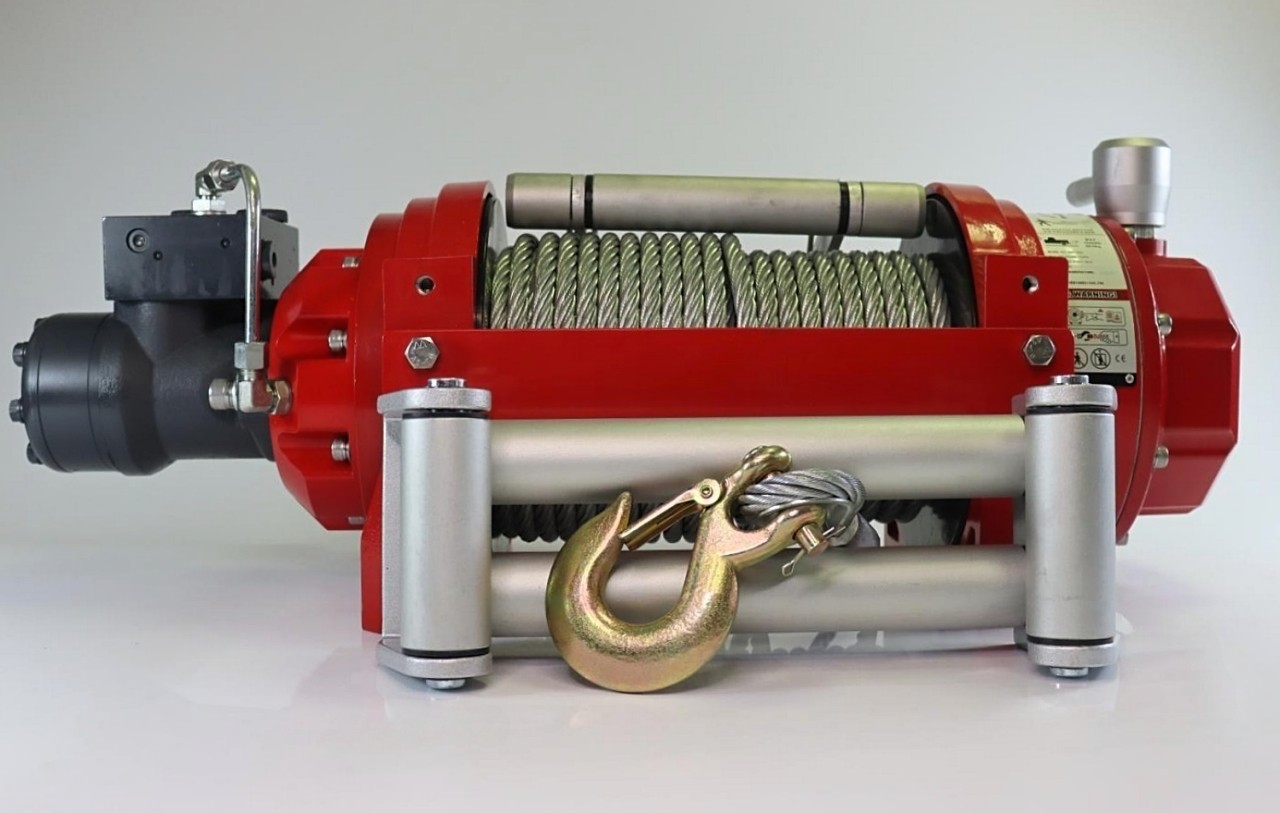

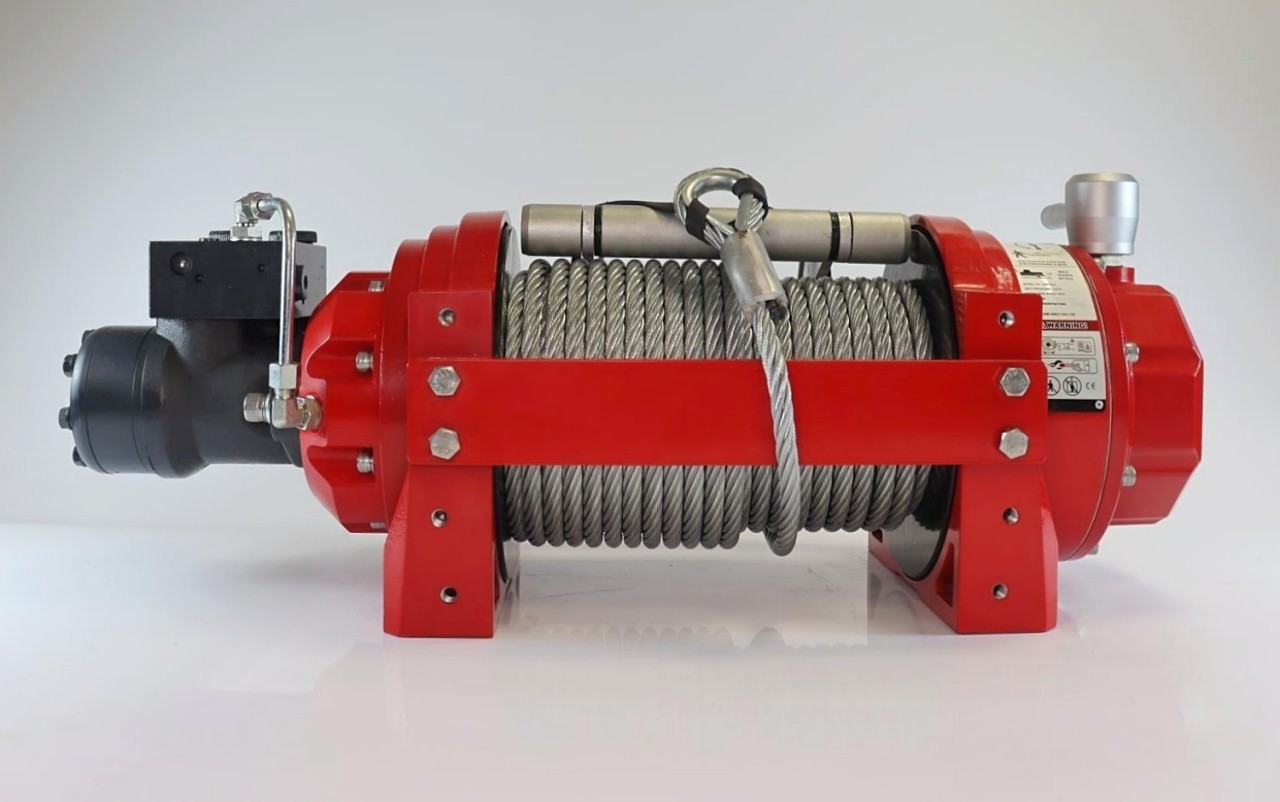

Hydraulic winch KWH15000 PRO EN14492-1 with tensioner, wire rope and hook
Reference: K15000H
EAN: 5905527760855
Description
Hydraulic winch KWH15000 PRO EN14492-1 with tensioner, wire rope and hook
The hydraulic winch, in contrast to the electric one is designed to handle much heavier elements at which precision and power are the most important.
Hydraulic winches are powered by hydraulic drive from electric or combustion engines. Depending on their purpose, their size may vary. In our store there are Powerwinch products, reliable hydraulic winches from a manufacturer with over 20 years of experience in the industry. Due to the purpose, winches should be equipped with steel ropes and appropriate hooks.
The hydraulic winch is the basic equipment for special service vehicles - ambulance, fire brigade, road assistance, as well as off-road vehicles. In this aspect, it is not only forest and rescue service vehicles, but also private 4x4 vehicles. In each of these cases, the hydraulic winch is a key piece of equipment that can not only save your life, but in the sport dimension will allow you to overcome the planned route and all the problems on it. Winches are built in accordance with all standards of the EU Commission on Standardization, including the latest EN 14492-1 standard.
# | Spec | Value |
---|---|---|
1 | Rated line pull | 6810 kg |
2 | Warranty | 2 years |
3 | Gearing | Planetary |
4 | Gear ratio | 17.3:1 |
5 | Brake | Automatic, hydraulic |
6 | Line | Wire rope 13mm |
7 | Fairlead | - |
8 | Dimensions | 630 x 304 x 265 mm |
9 | Drum dimensions | 126x 208 mm |
10 | Mounting bolt pattern | 254 x 114,3 mm / 254 x 165,1 mm / 254 x 215.9 mm |
11 | Weight | 80 kg |
12 | Max pressure | 14 Mpa |
13 | MaxFlow | 60 l/min. |
