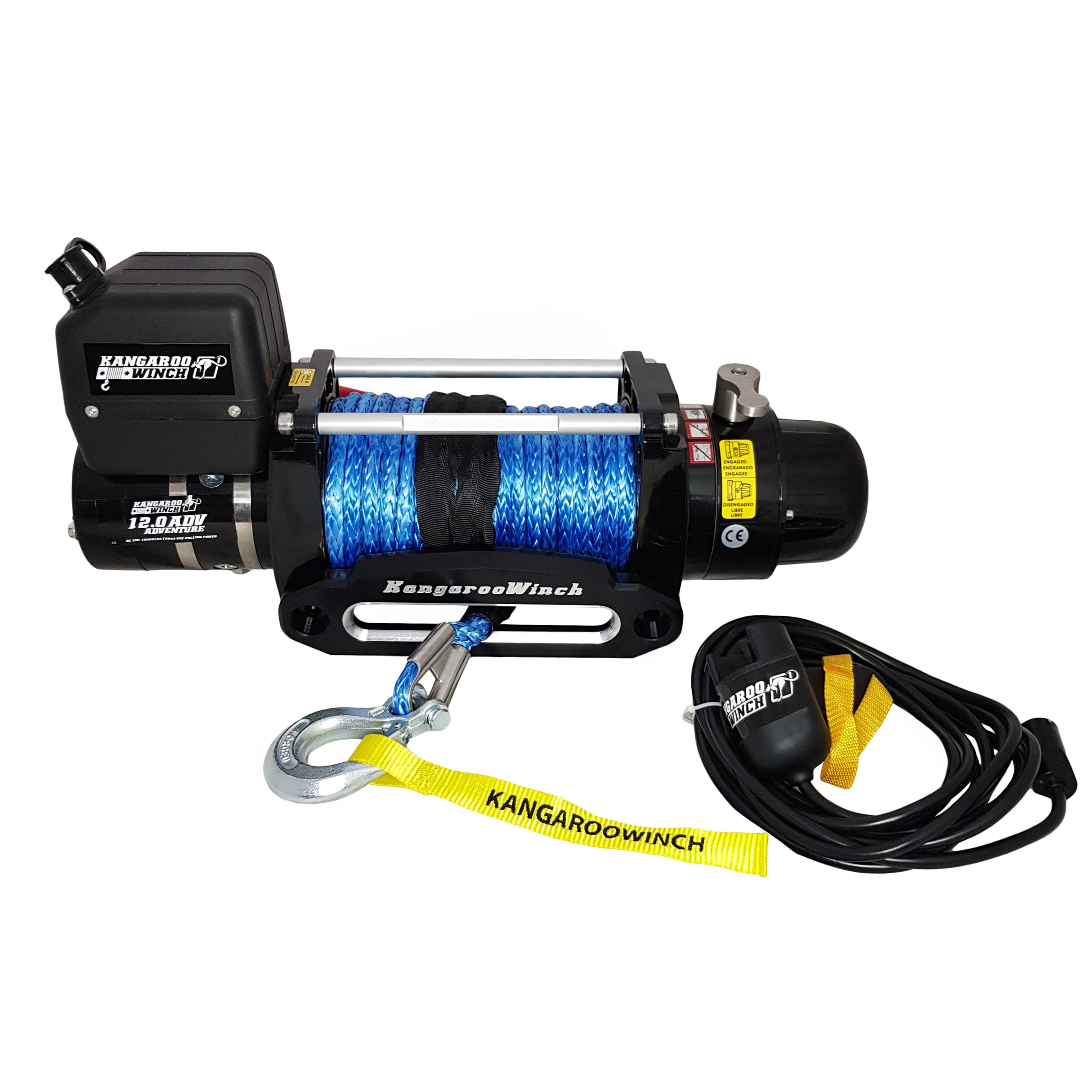

Kangaroowinch Adventure 12.0 12V with synthetic rope

Reference: K12ADV-SR-12V

2 865 85
Out-of-Stock
Quantity

If you are not sure how to choose the best product, call us and we will advise you.+48 122662754

Description

Kangaroowinch Adventure 12.0 – premium class winch

Adventure winch is one of the best in the market. Ideal for extreme applications, designed with care of the smallest detail, made of the highest quality materials.

The planetary gear ratio of 254: 1 allows the rope to be rolled up to 9 meters per minute. At the same time, even with maximum load, the winch needs only 285 Amperes.

The Powerwinch Panther also features a unique double cone brake, mounted on the end of the gear unit. This solution greatly increases the resistance to overload and minimizes the drum warming.

With the winch you will find:

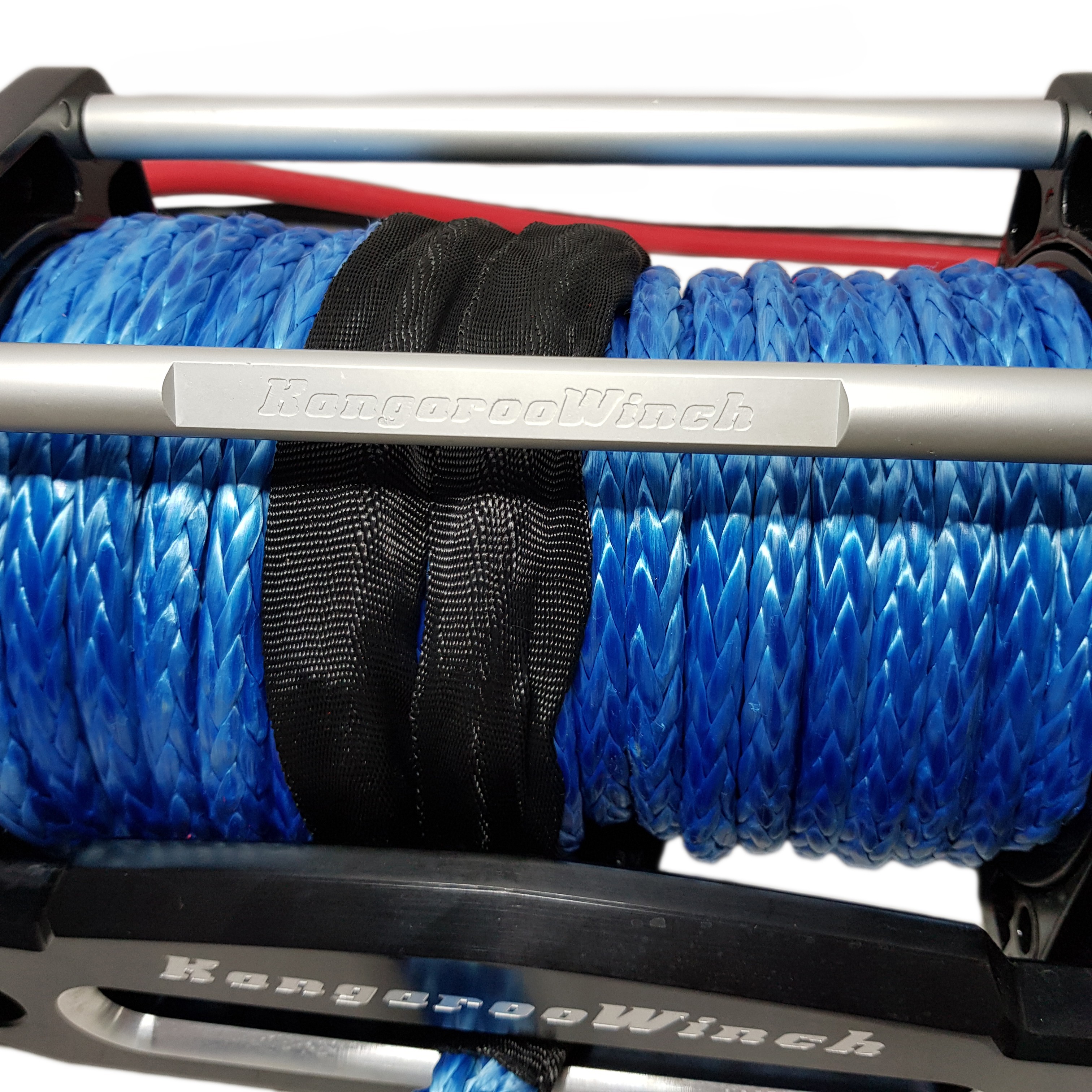

– synthetic rope 9.5 mm x 30 m.

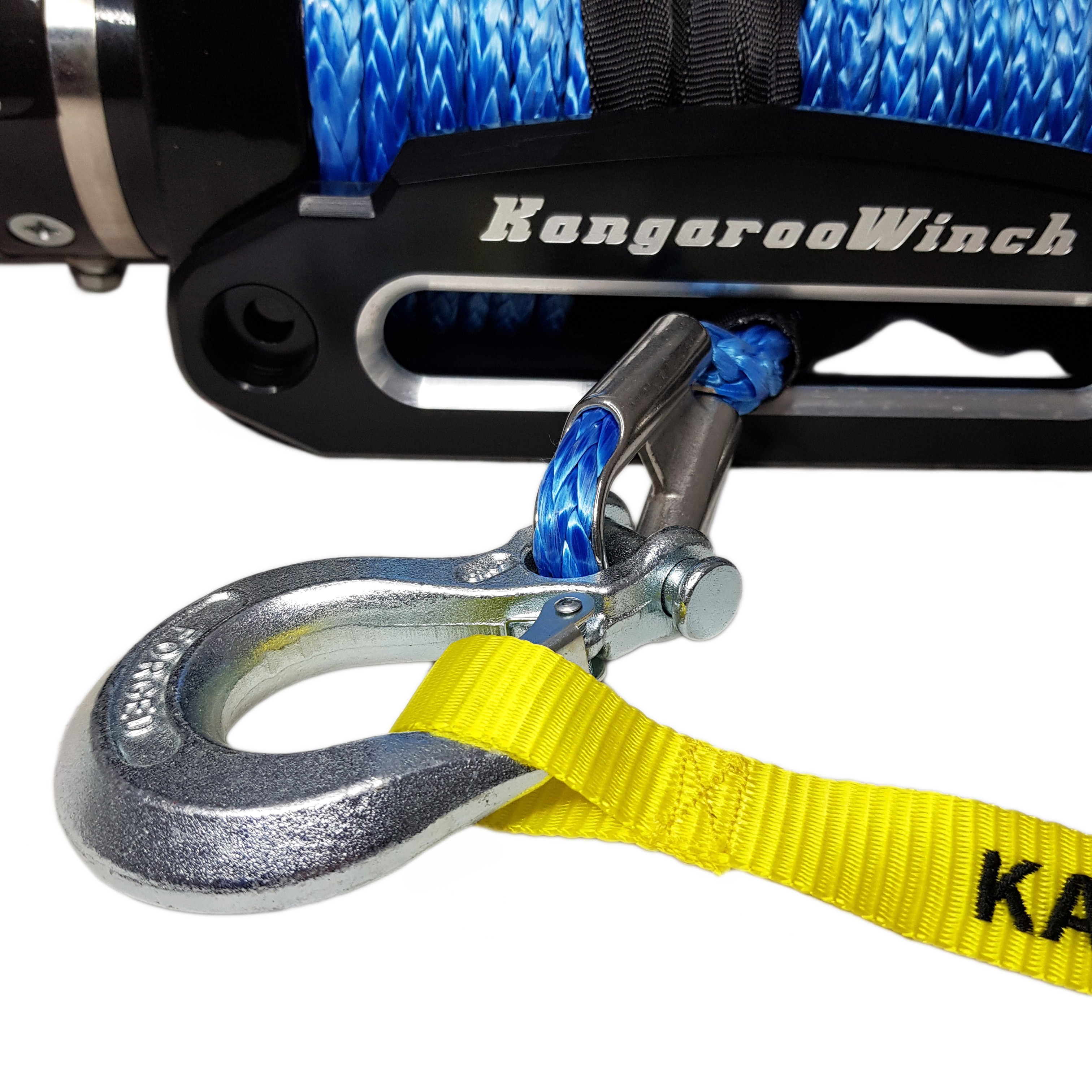

– hook
– aluminum hawse
– remote control
– box with relay
– mounting screws
– wires

#SpecsValue
1 Rated line pull 5442 kg
2 Motor 6 HP
3 Gearing 3-st. planetary
4 Gear ratio 254:1
5 Voltage 12V
6 Solenoid 500A
7 Brake Automatic
8 Rope Synthetic 10 mm x 30 m
9 Fairlead Aluminum hawse
10 Dimensions 612 mm x 165 mm x 266 mm
11 Drum dimensions 63,5 mm x 229 mm
12 Mounting bolt pattern 254 mm x 114,3 mm
13 Weight 32 kgs
14 Current draw 12V 0kg – 60A, 5442 kg – 285A
15 Line speed 0 kg – 9 m/min, 5442 kg – 1,4 m/min
