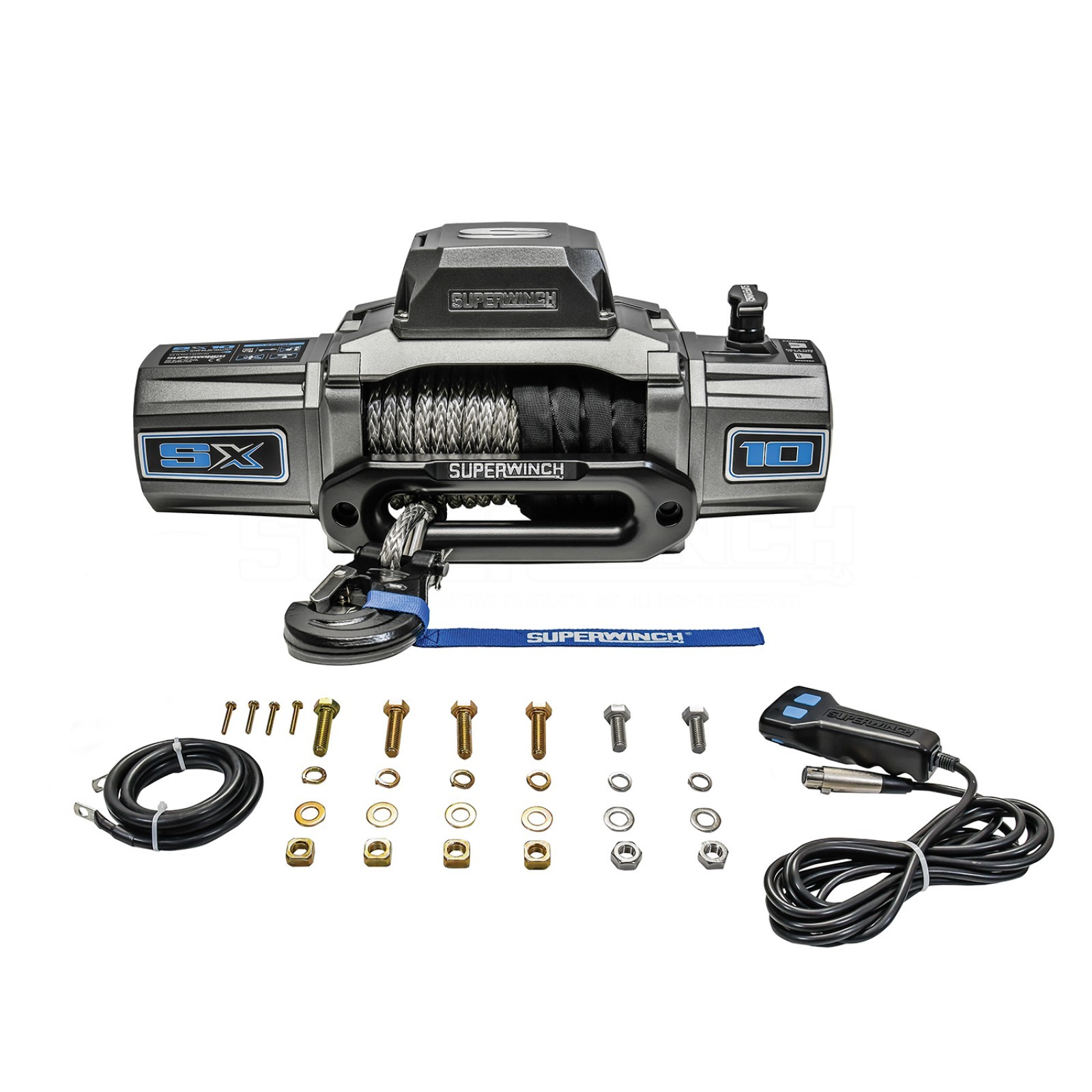

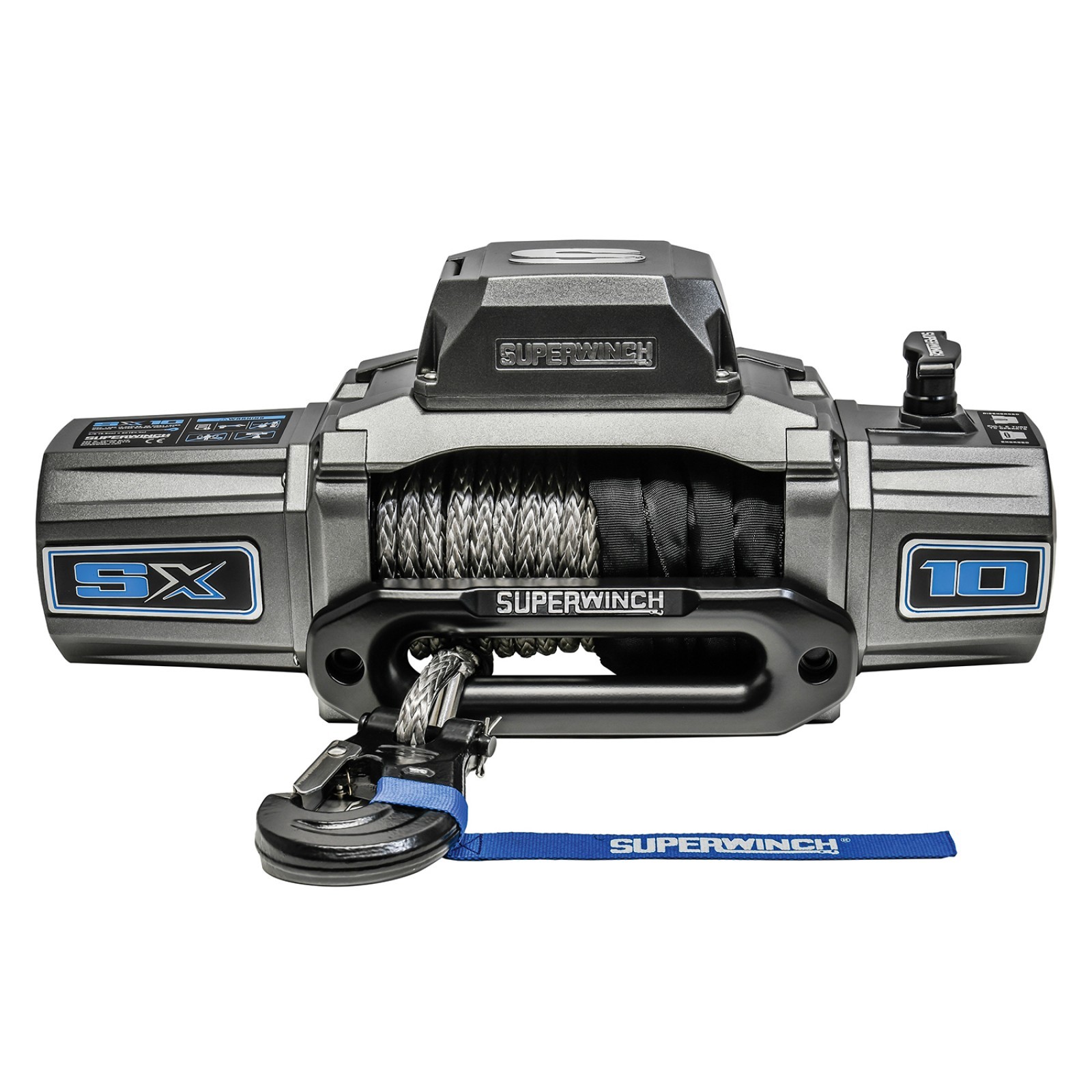

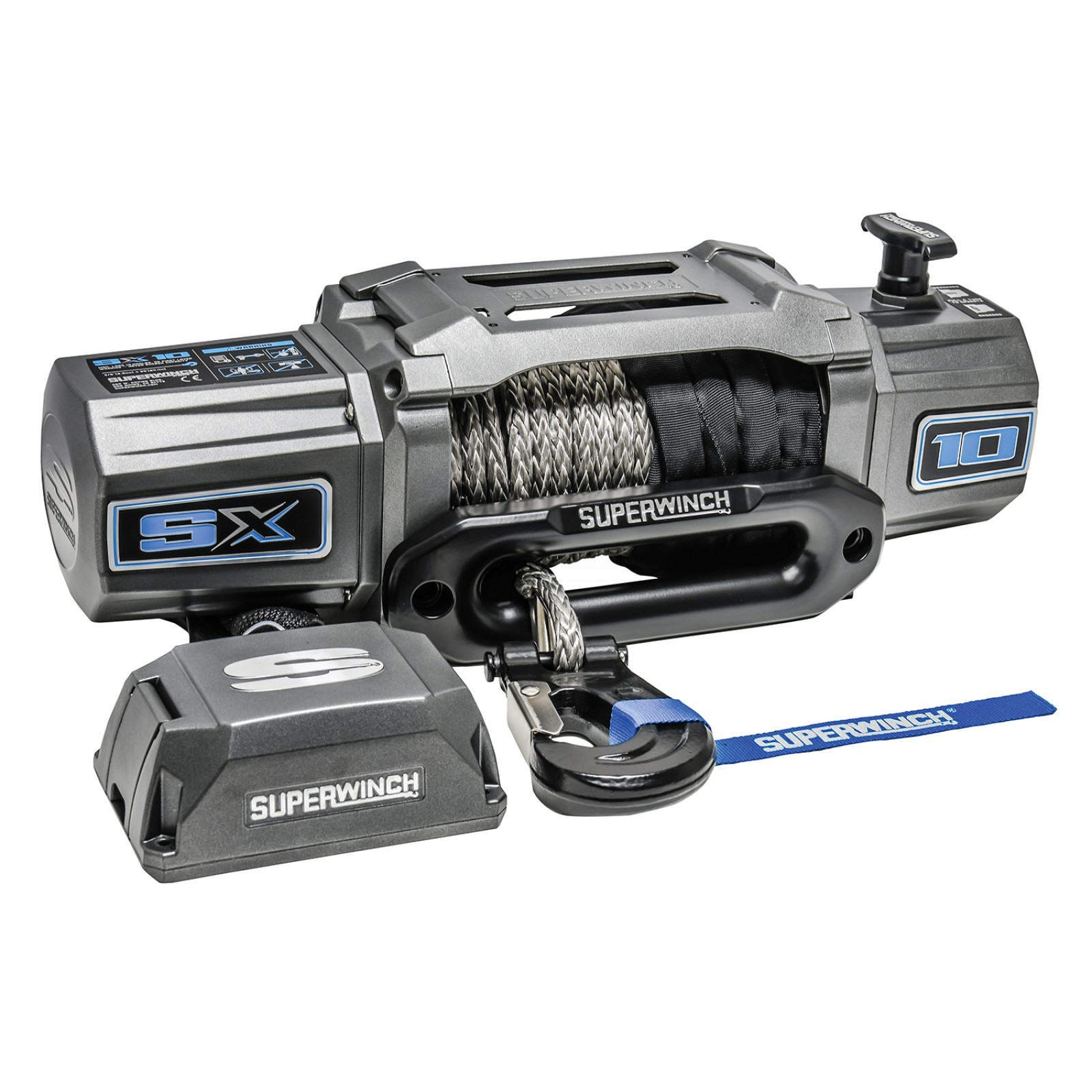

Superwinch SX10SR 12V with synthetic rope
Reference: SUP1710201
EAN: 022705003889
Description
Product Details
The SX10SR winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminium control box, 3/8in diameter synthetic rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today's modern vehicles while delivering an affordable and stylish design that incorporates many class-leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation and a durable metallic graphite powder-coated finish, this winch has it all.
- 12V DC 10,000 lbs rated line pull
- 5.5 HP sealed motor

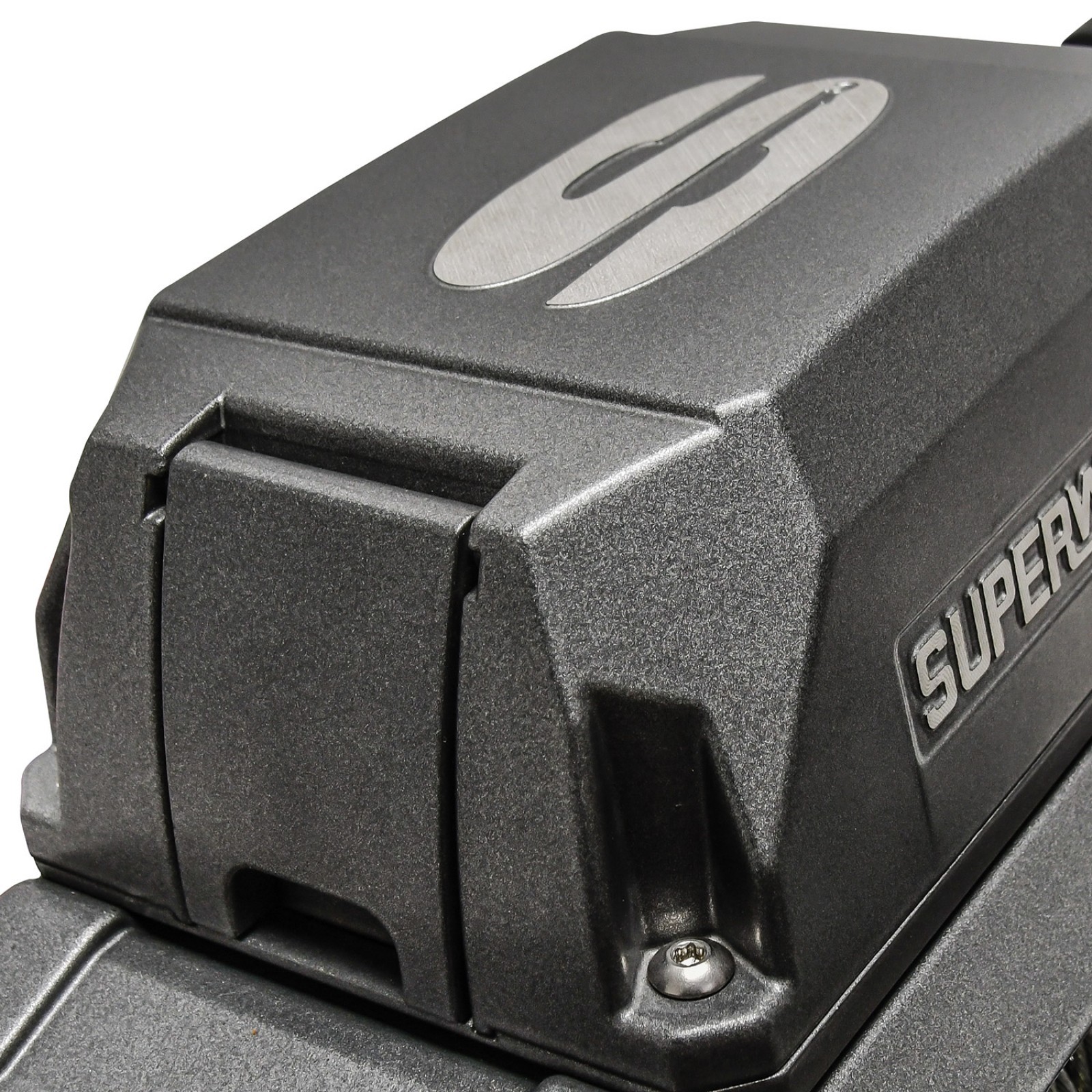

- Relocatable die-cast aluminum control box
- Wireless handheld remote and 12 ft handheld wired remote with rechargeable flashight

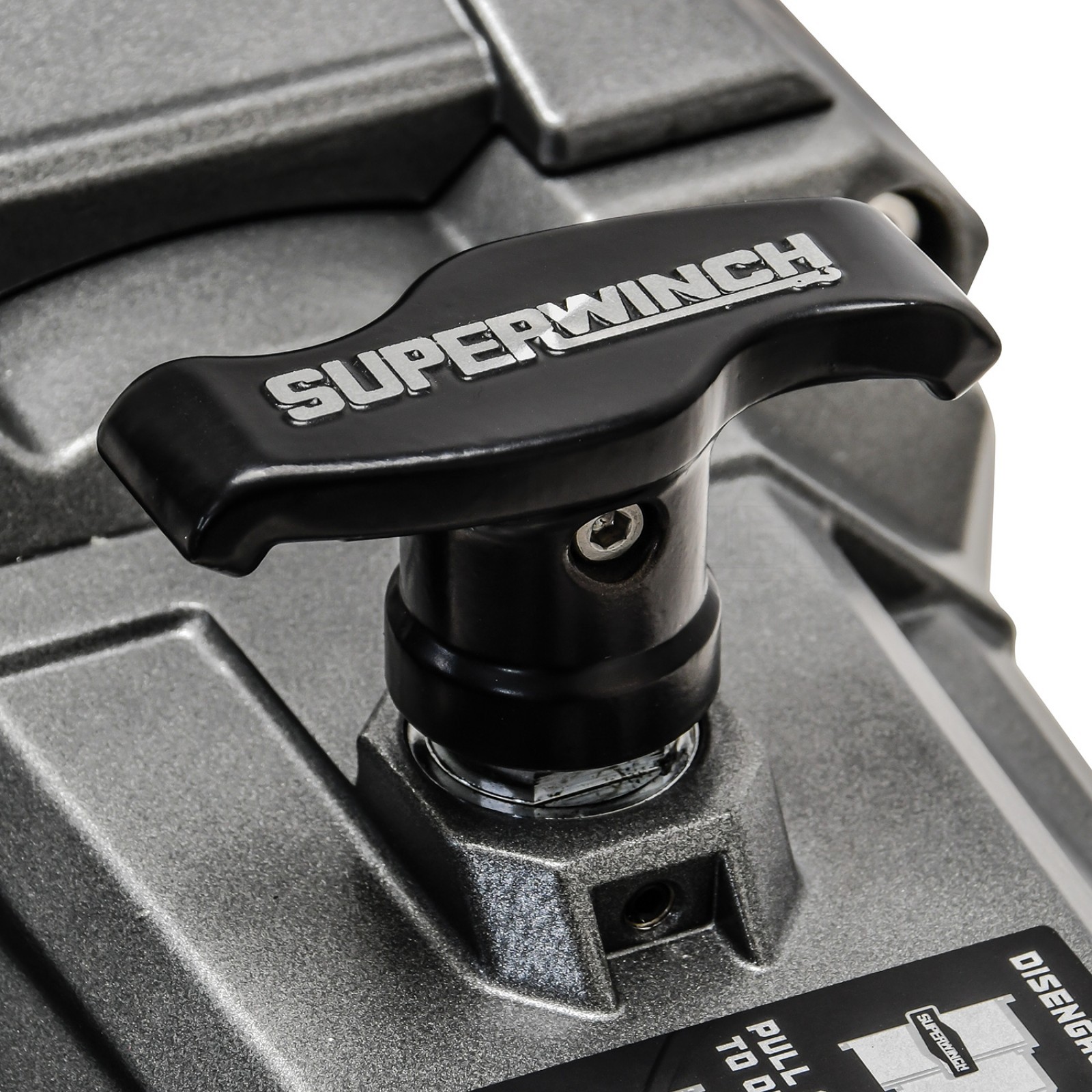

- Pull-and turn clutch handle
- 3-stage planetary gearing with 218:1 ratio

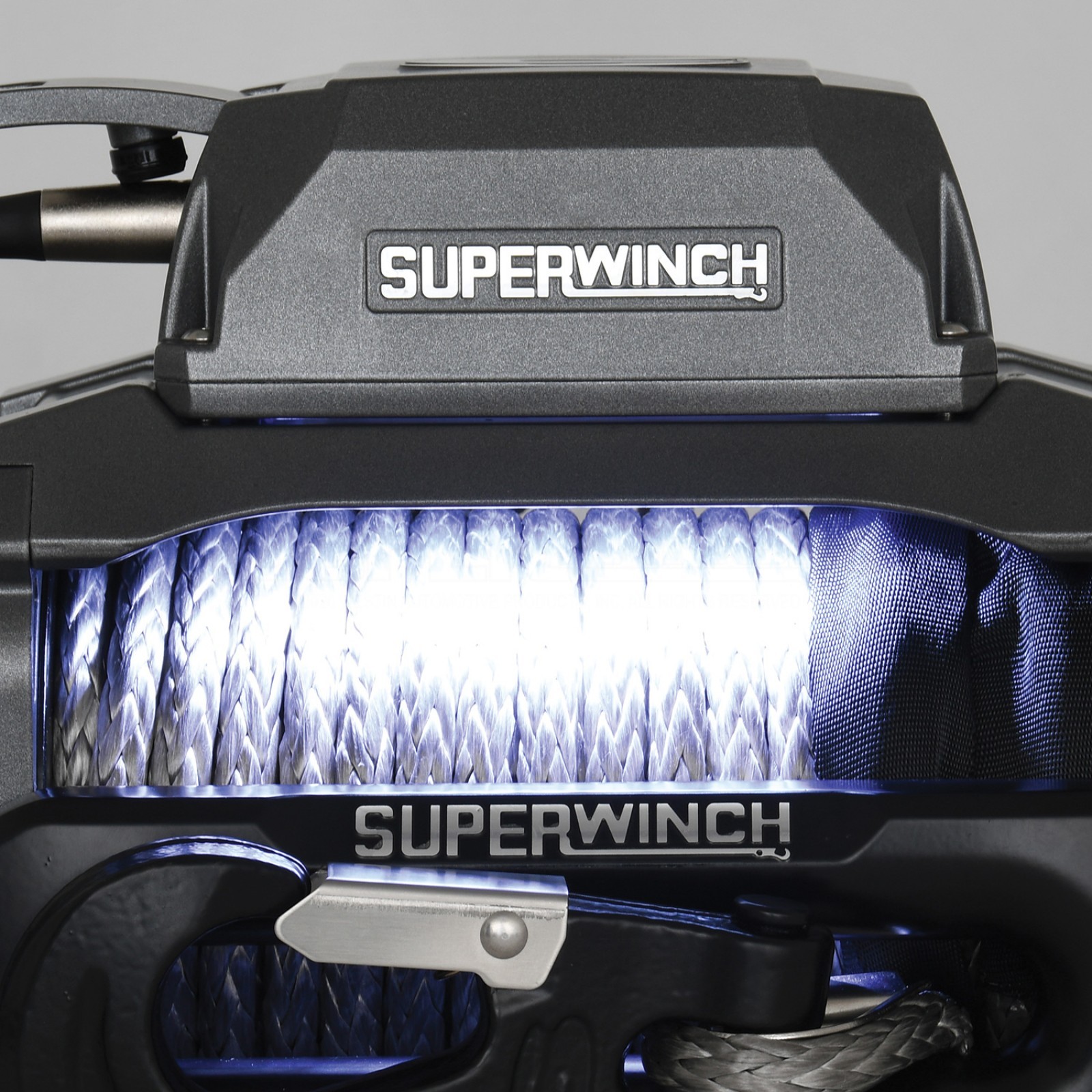

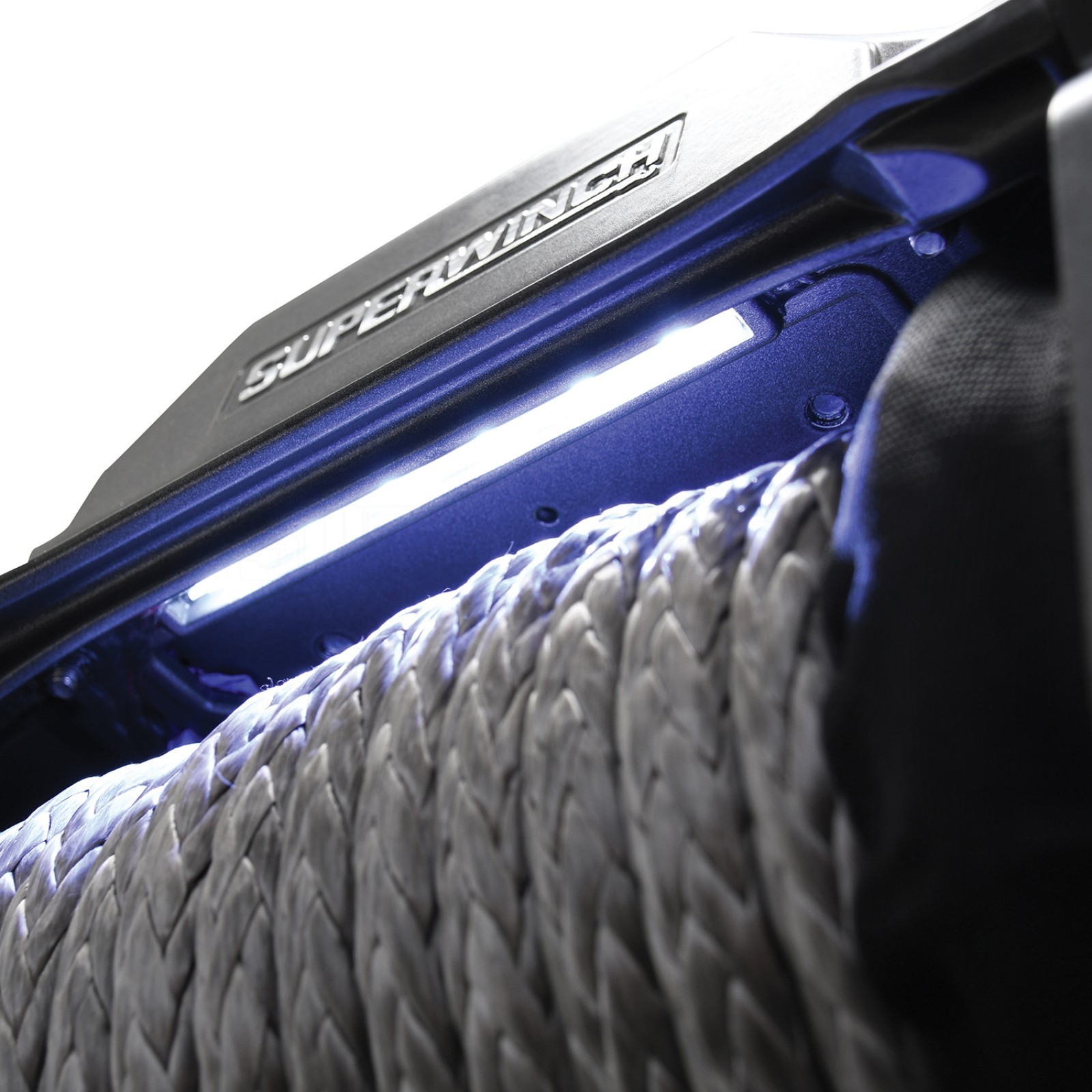

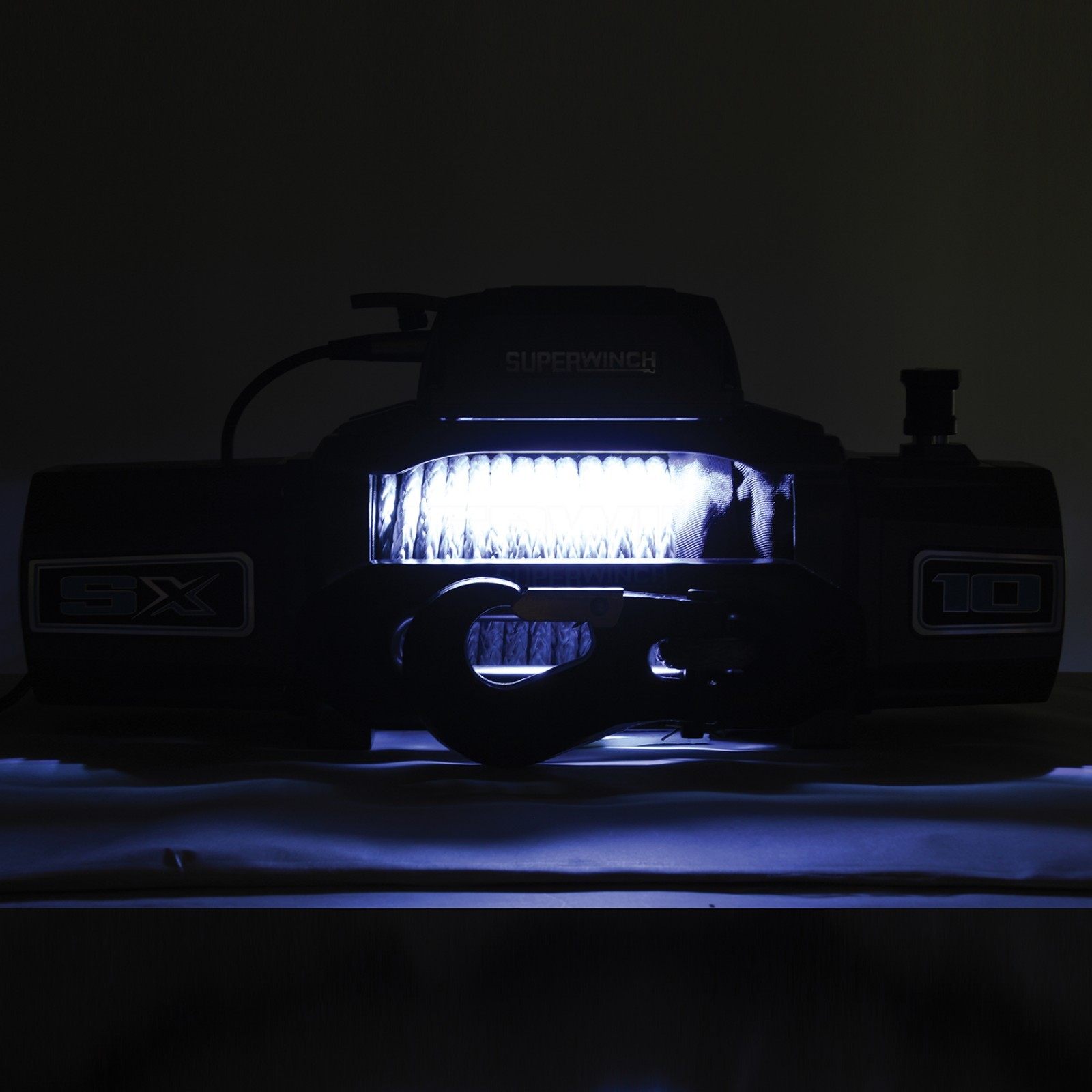

- Patented drumlight
- 3/8 in x 80 ft synthetic rope
- Heavy duty clevis winch hook
- Aluminium hawse fairlead
- 100% full load holding automotic mechanical brake
- IP68-rated waterproof and dustproof winch
# | Specifications | Value |
---|---|---|
1 | Brake | automatic, 100% load-holding mechanical |
2 | Clutch | pull and turn, ergonomic free spoiling |
3 | Dimensions | 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H) |
4 | Drum diameter | 2.5 in (64 mm) |
5 | Drum length | 8.75 in (223 mm) |
6 | Fairlead | heavy duty stainless 4-way roller |
7 | Gear ratio | 218:1 |
8 | Gearing | 3-stage planetary |
9 | Motor | sealed 5.5 HP series wound |
10 | Mounting bolt pattern | 10 in. x 45 in. (254 mm x 114.3 mm) |
11 | Rated line pull | 10000 lbs (4535.9 kg) |
12 | Remote | sealed ergonomic hand-held with 10 ft. (3.3 m) cord |
13 | Rope | synthetic wire 3/8 in. x 85 ft (9.5 mm x 25.9 mm) |
14 | Weight | X |
15 | Warranty | 2 years |
