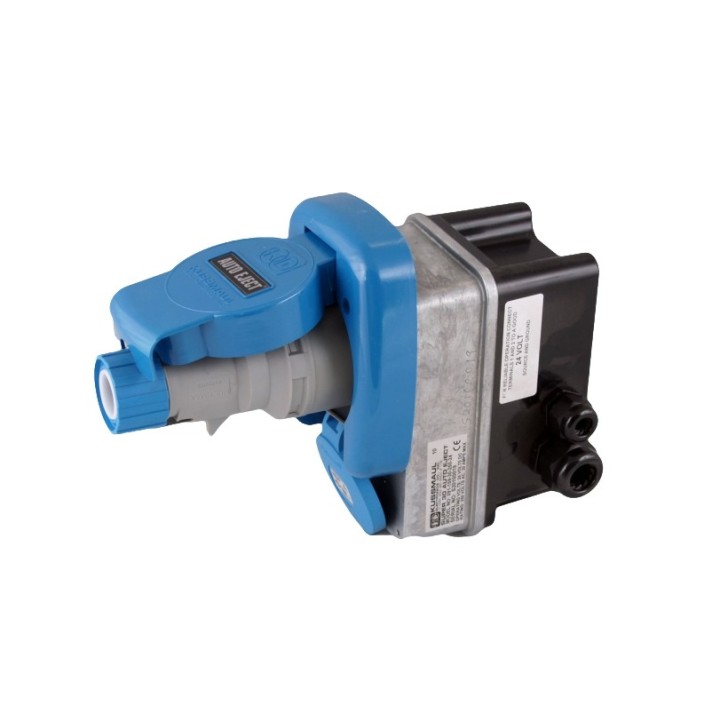

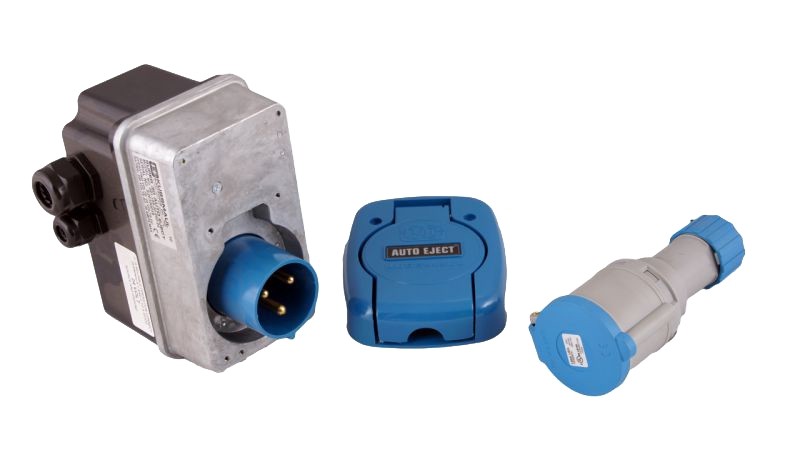

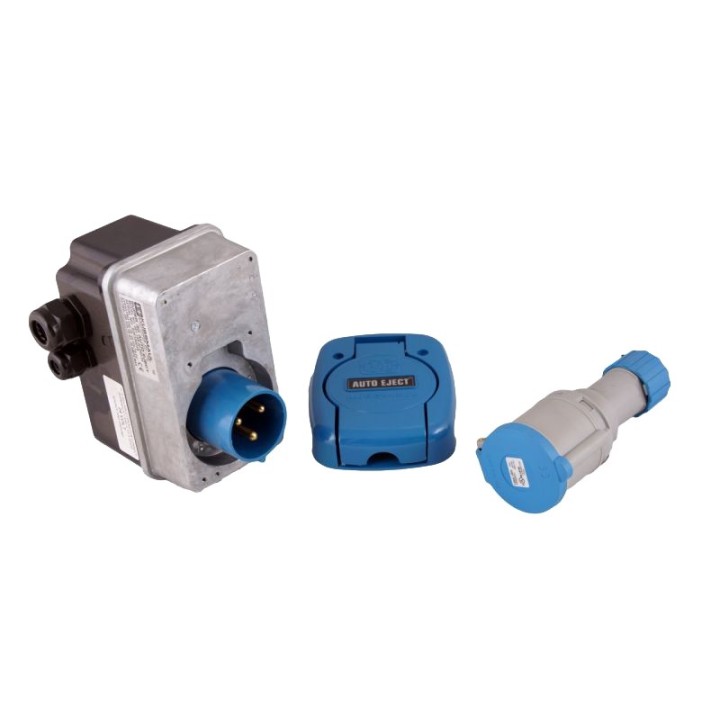

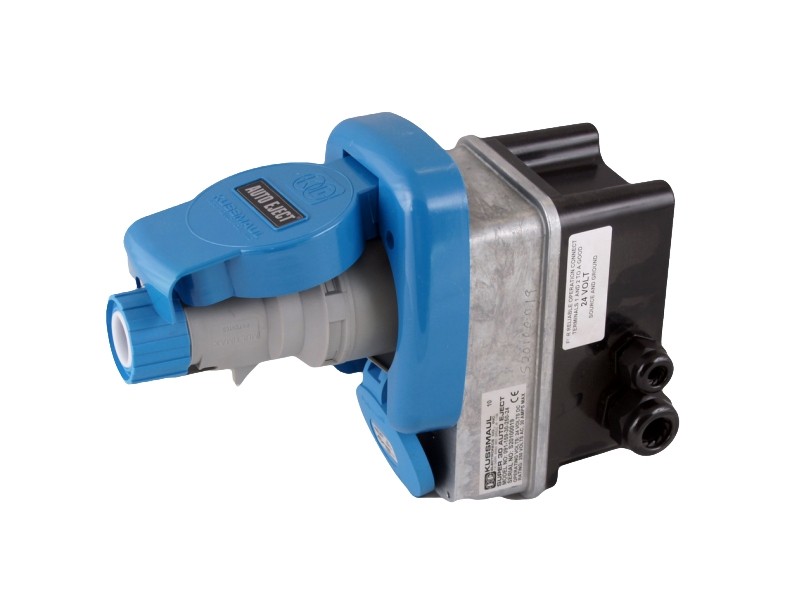

Quick Disconnect KUSSMAUL Super 30 Auto Eject – automatic plug and socket, 230V AC, 30A, 24V DC

Quick Disconnect KUSSMAUL Super 30 Auto Eject – automatic plug and socket, 230V AC, 30A, 24V DC

Auto-eject plugs are the best solution for power management systems in emergency and special-purpose vehicles. They are essential wherever a vehicle must be kept in 100% operational readiness at all times.

When the vehicle’s engine is started, the power cord is automatically ejected from the socket, a spring-loaded cover drops down, and the inlet is sealed.

Auto-eject plugs are completely sealed, ensuring long-lasting, trouble-free operation even in the harshest conditions.
The system automatically opens the 230V AC circuit upon connection and closes it just before disconnection – preventing contact arcing and prolonging connector life.

Key Features:

• Automatic disconnection upon engine start

• Arc-free operation

• Compliant with IEC 60309 European standard

• Hermetically sealed housing

• Can be used in DC-DC configurations

Technical Data:
Voltage: 24V
Power Supply: 30A / 230V
Warranty: 24 months
Ingress Protection: IP64 (with closed cover); IP42 (with plug inserted)
Input Voltage: 24V DC
Output Voltage: 230V AC
Output Current: 30A
