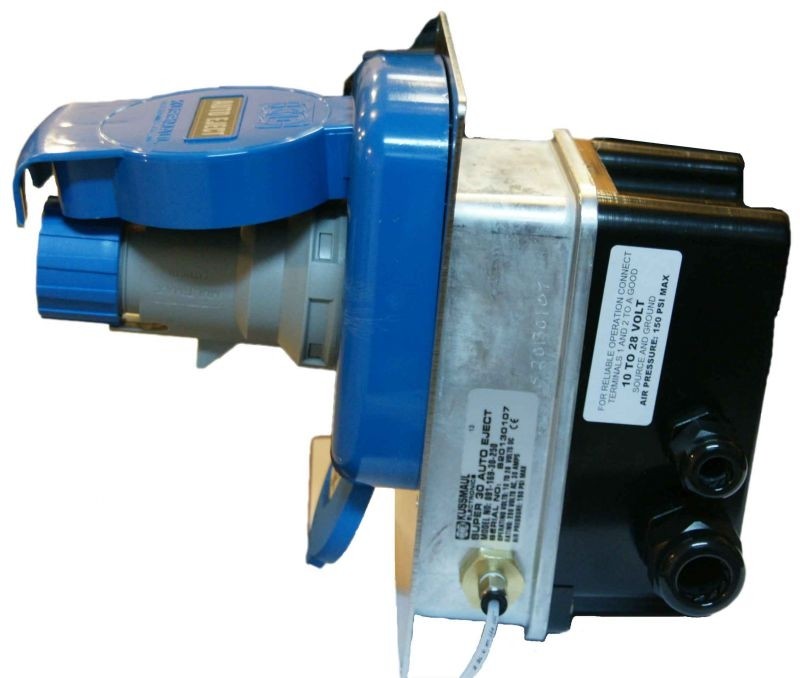

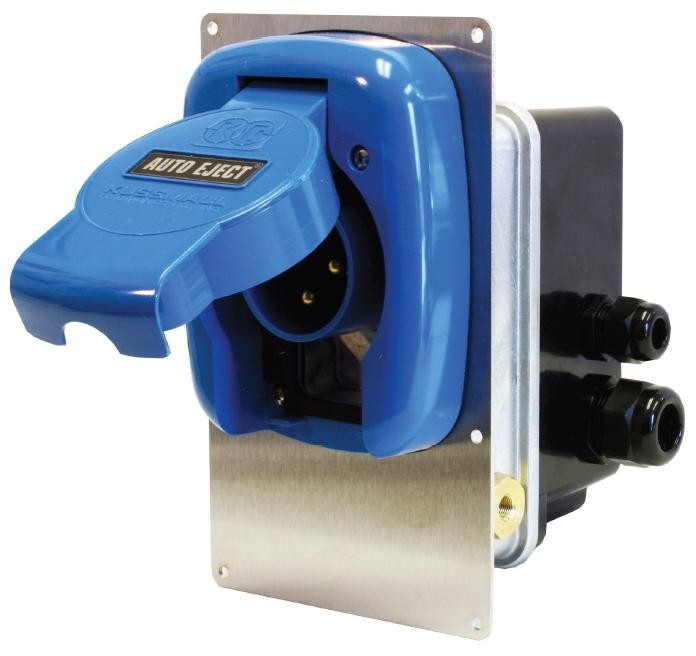

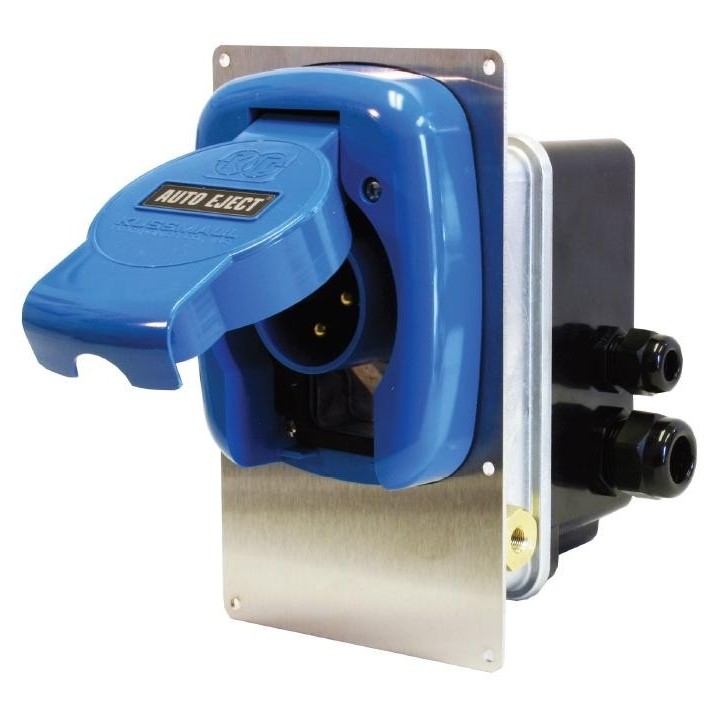

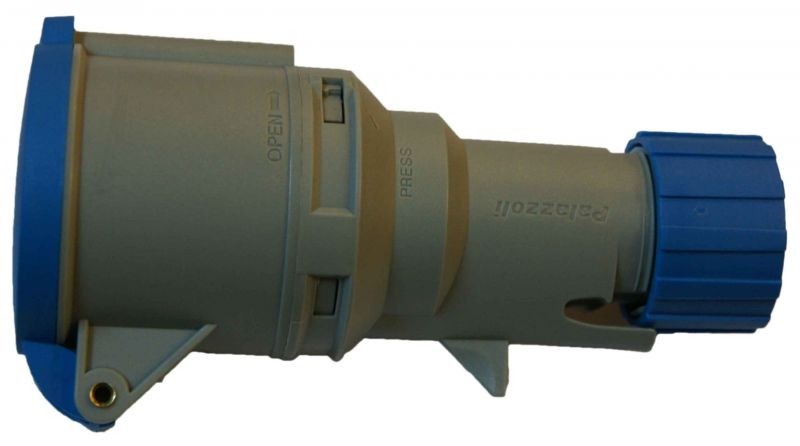

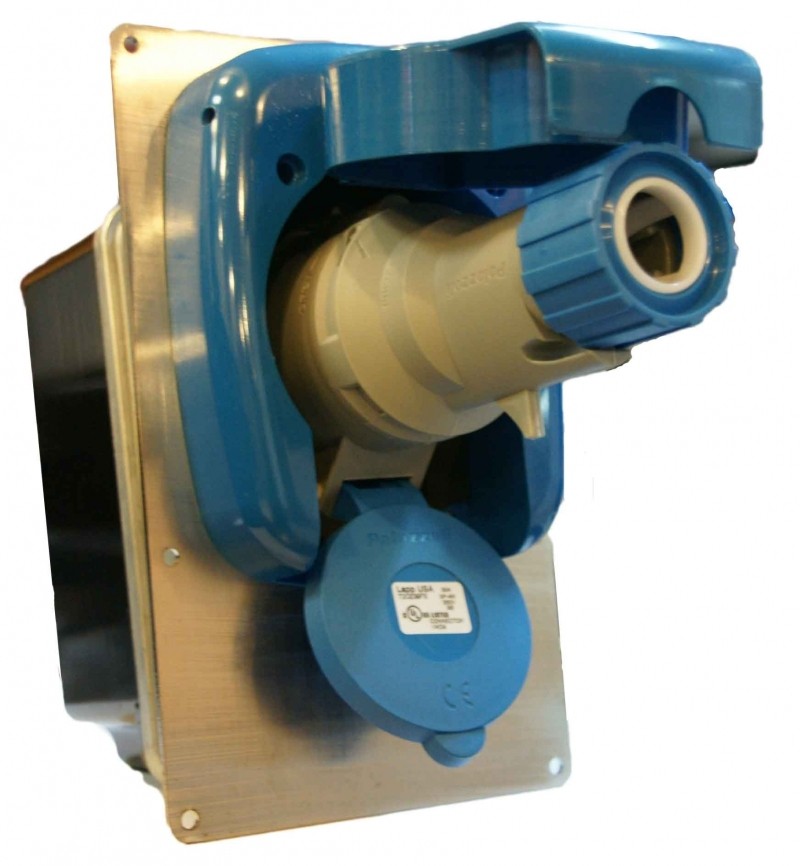

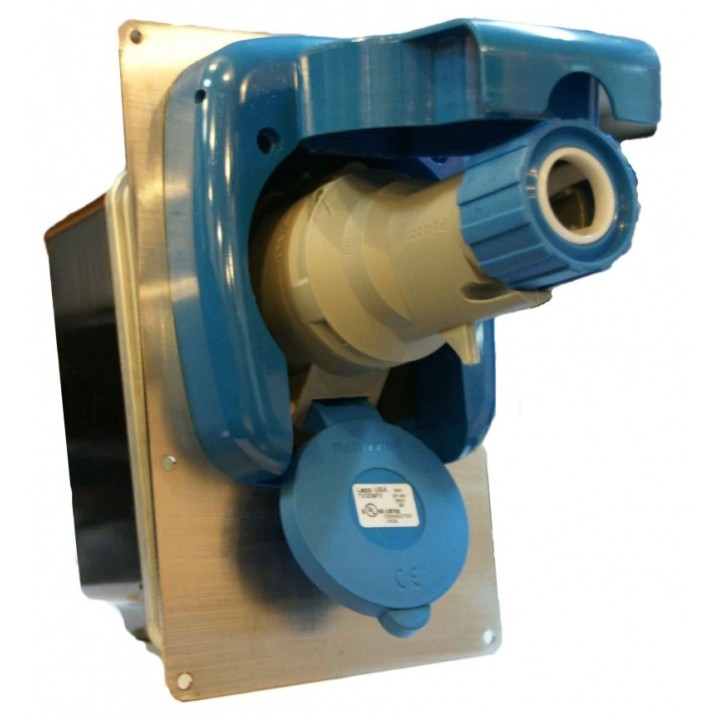

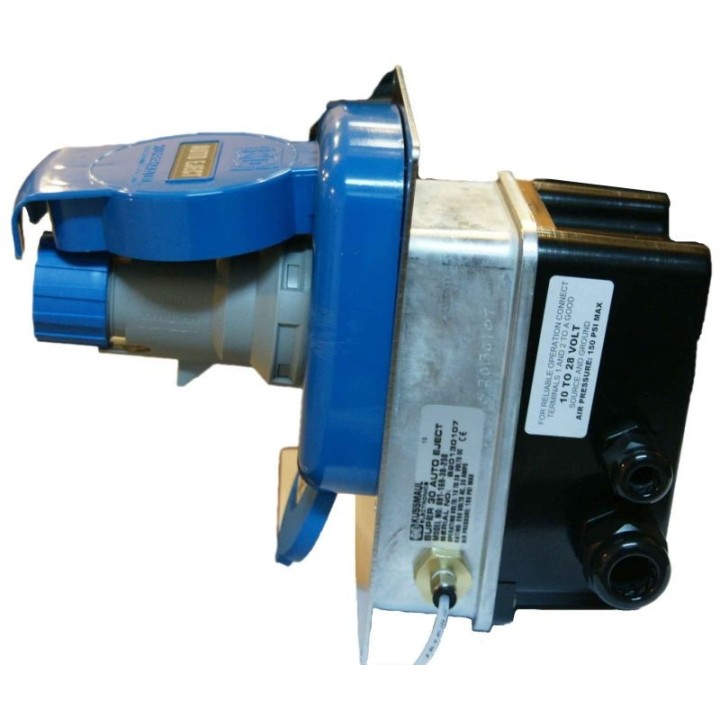

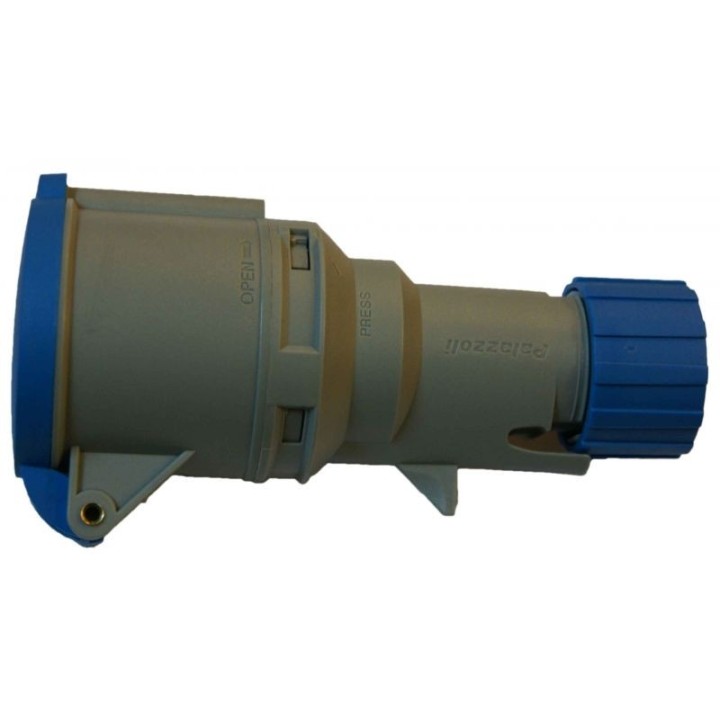

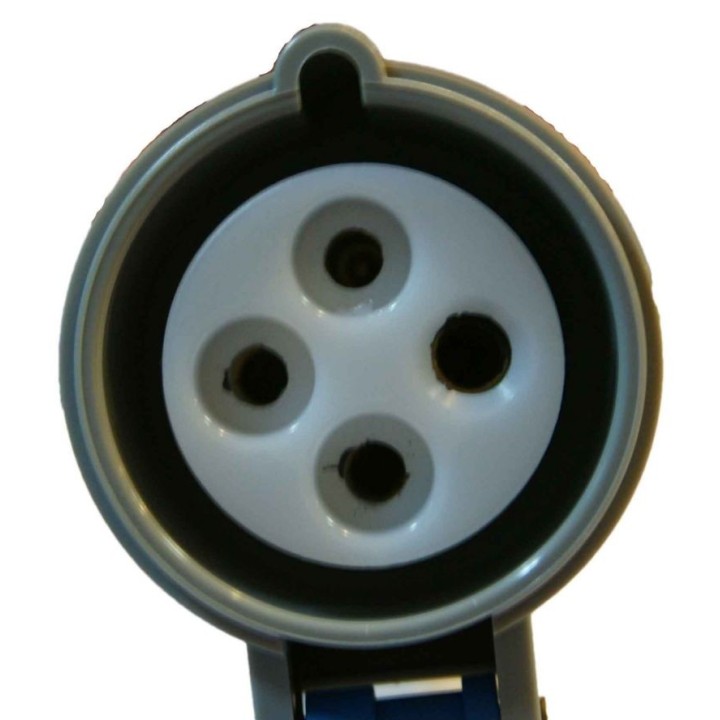

KUSSMAUL Super 30 Auto Eject AE COMBO Plug and Socket 230V AC, 30A, 12/24V, 12,07 BAR

Reference: K091-169-30-250-BL

3 343 09
Out-of-Stock
Quantity

If you are not sure how to choose the best product, call us and we will advise you.+48 122662754

Description

KUSSMAULSuper 30 Auto Eject AE COMBO Plug and Socket 230V AC, 30A, 12/24V, 12,07 BAR

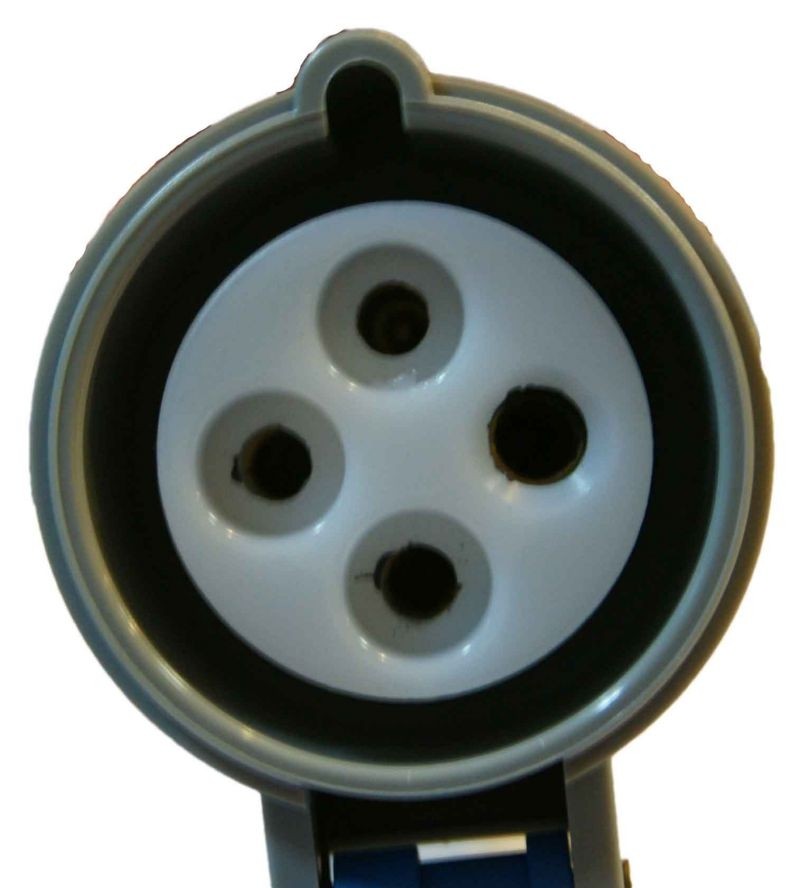

- Heavy duty pin and sleeve contacts provide reliable
connection over years of insertion/eject cycles
- Air connection made through a brass fitting
containing a shut-off valve
- Shut-off valve opens when plug is inserted to
supply air pressure to the vehicle
- Shut-off valve closes automatically when plug is
ejected sealing off the air supply air
- Upon sensing engine start, the plug ejects from
receptacle and away from vehicle path; eliminating
dangerous severing of cord
- Air-Electric energizing is delayed until detector pin
senses plug is inserted, eliminating terminal arcing
- After eject, weatherproof cover snaps into position
over inlet
- Smooth sculpted cover, no sharp edges
- Weatherproof back enclosure with watertight cable
fittings protects mechanism from road contamination

Input Voltage (Volts DC): 12/24

Input Current (Amps): 1.6 max

Output Voltage (Volts AC): 120

Output Current (Amps): 30

Output Air Rating (PSI): 175

Warranty: 2 Years
