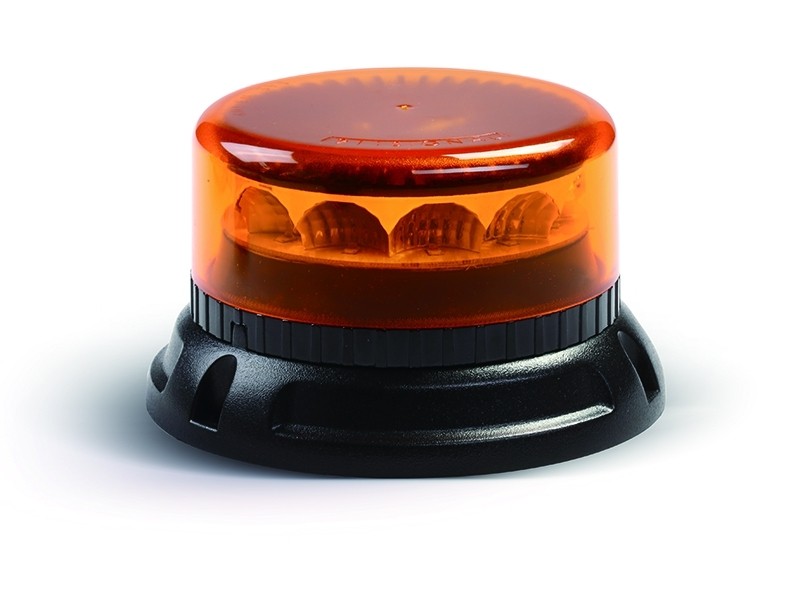

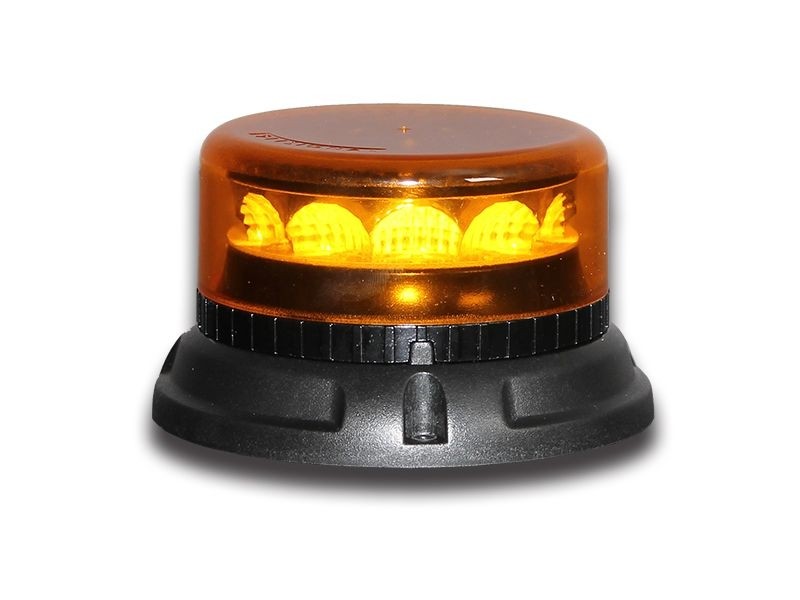

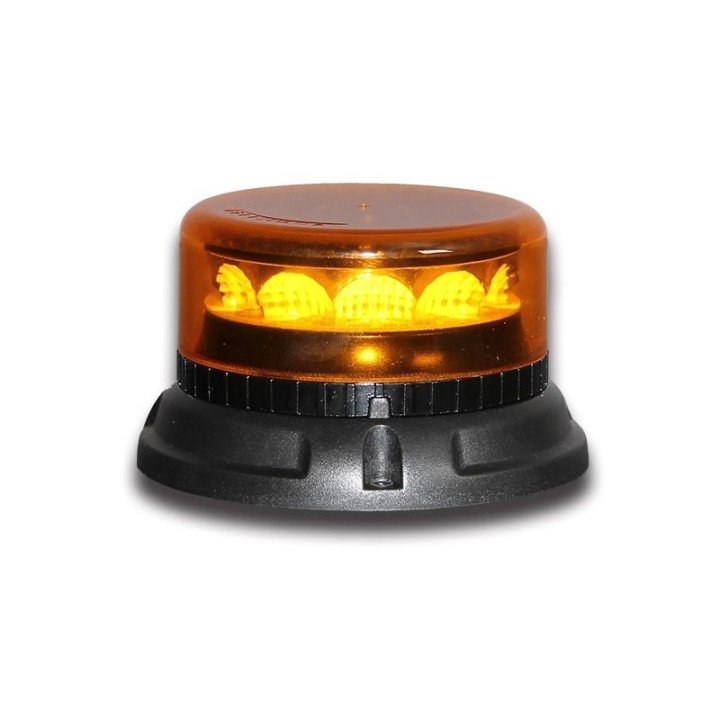

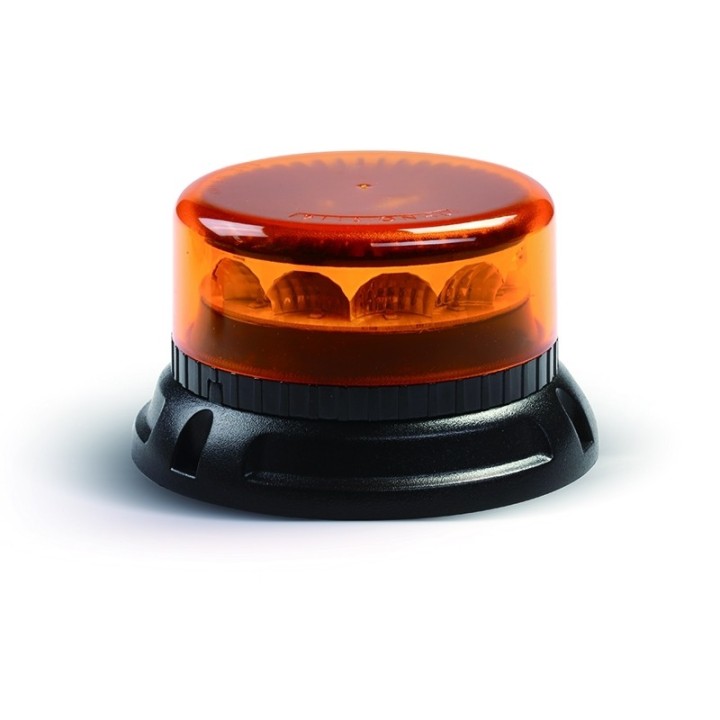

Warning Beacon LED C12 MIRAGE, orange, 3 point fix mouting, 12/24V, R65

LED C12 MIRAGE, orange, 3 points mouting, 12/24V, R65

The C12 is a beacon with the newes reflex lence design for highest LED brightness intensity. The certificate covers R65 amber and blue market. It is suitable for every kinds of road safety vehicles. For example trucks, police and ambulance cars, and fire fight trucks.

Light Characteristics

LED Power: 12PCS 3W LED

LED Lifespan: 100,000H

Flash settings: 1-4HZ

LENS: Reflex

Electrical Characteristics

Voltage: DC 10-33V

Max Power: 19W

Physical Characteristics

Colour Available: Amber, Blue

Ambient temperature: -20--+65℃

Waterproof: IP67

Mounting

080405: Sucker with Magnet Mount;

080402: Permanent Mount

Flash patterns: 22

Meet and Exceeds: ECE R65 TA1 00 0041, ECE R65 TB1 00 0042, ECE R10 04 12749, SAE W3-1 09

Product Dimension: 3" High x 5.2" Base Diameter x 4.3" Lens Diameter

WIRE

080405: 6m long spring line with A13-E163 cigarette lighter.

080402: 50cm long 4-core wire
