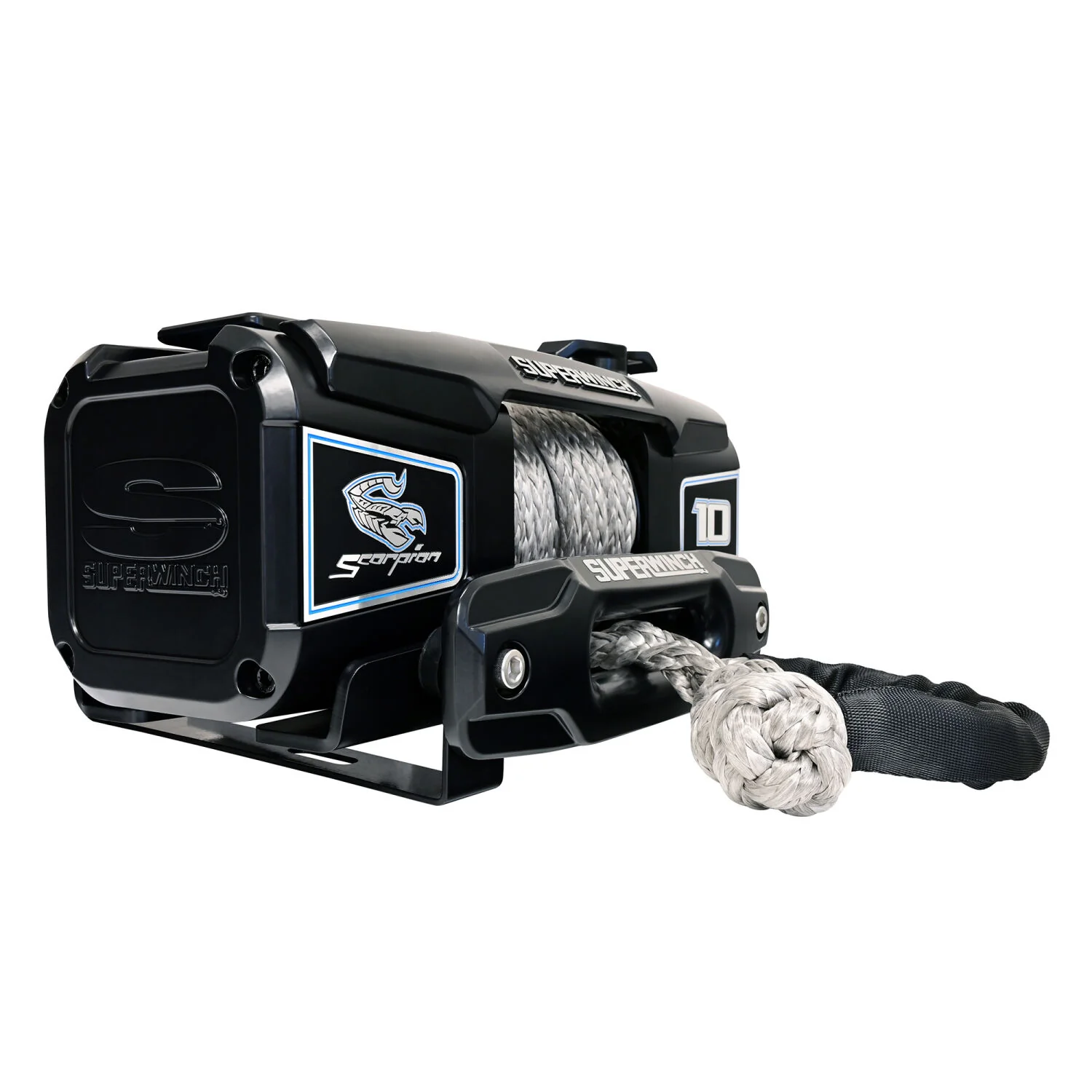

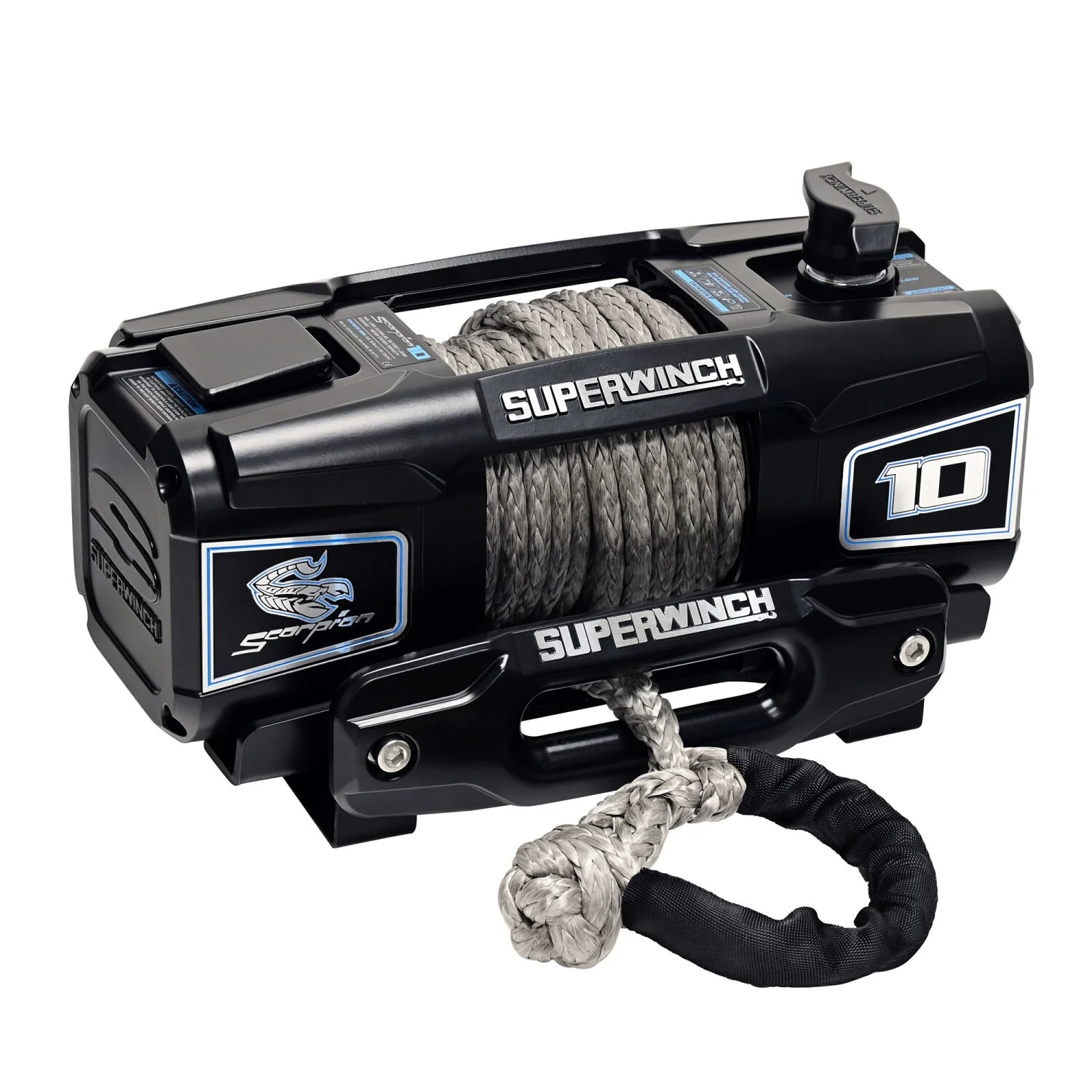

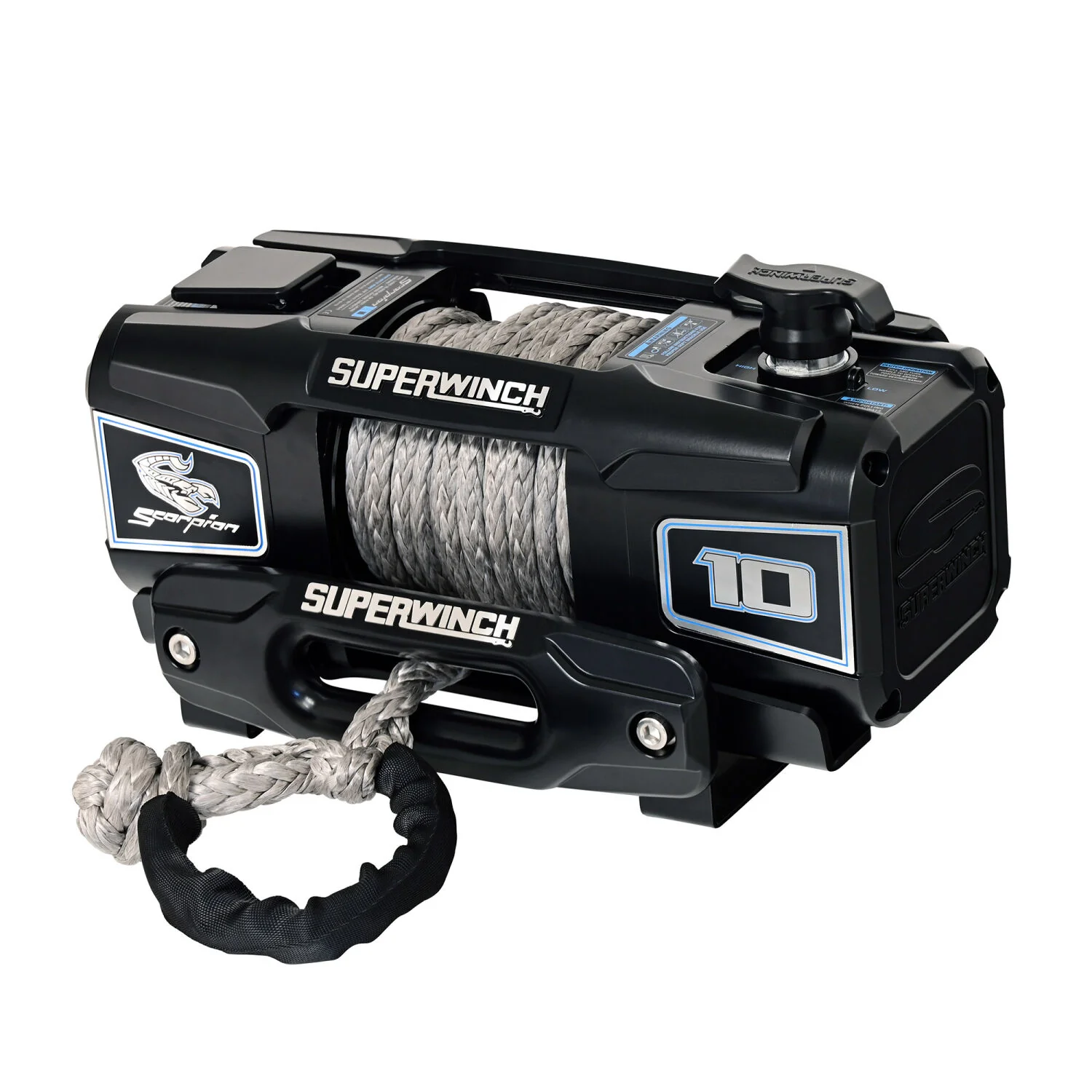

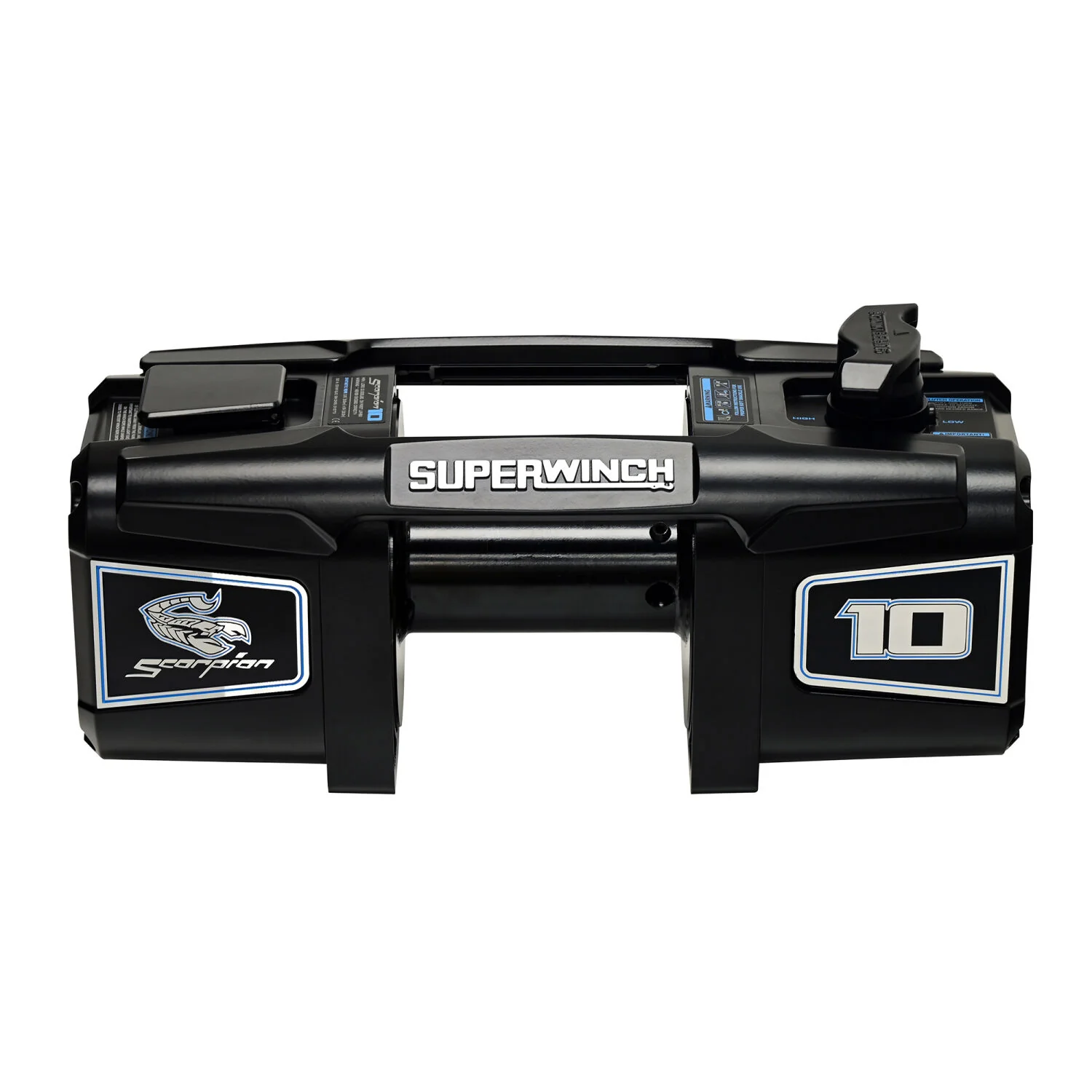

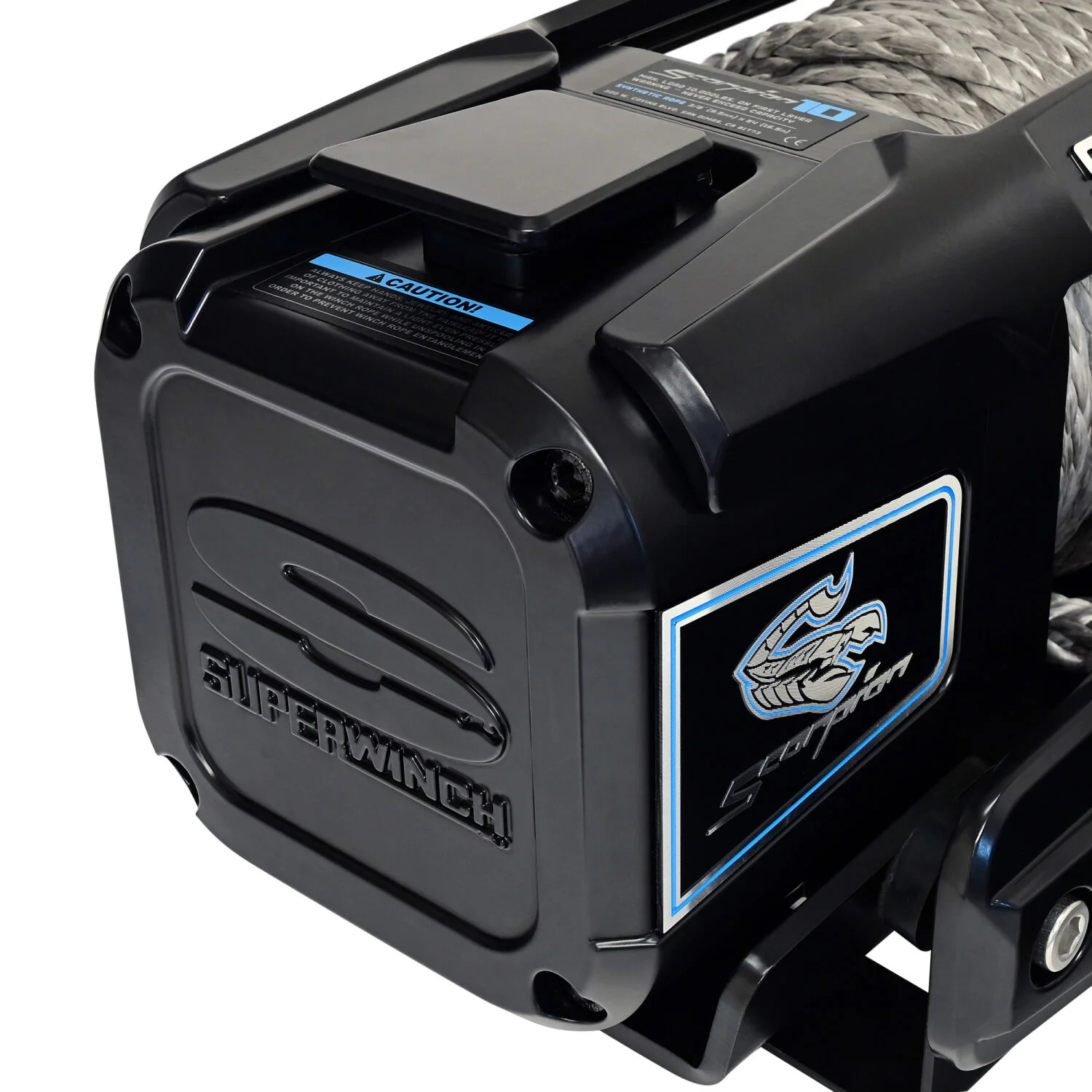

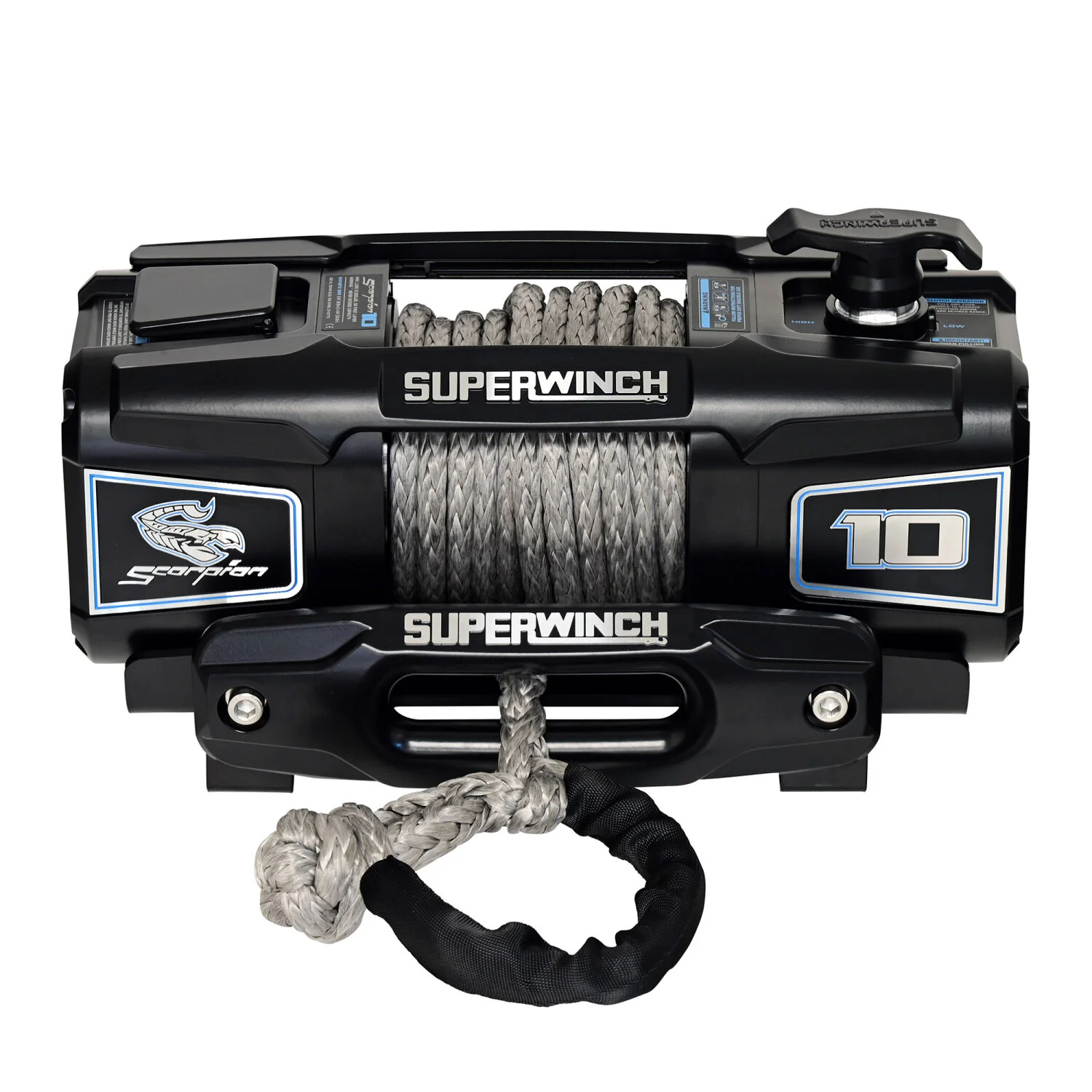

Superwinch Scorpion 10000SR 12V Two-Speed Winch – Up to 4536 kg Pull, 9.5 mm Synthetic Rope

The Superwinch Scorpion 10000SR is a compact, two-speed 12V winch engineered for vehicles that require strong pulling power without the bulk of a traditional winch. Its lightweight design reduces stress on the vehicle while delivering a maximum pull of up to 4,536 kg. At its core is a 4-stage planetary gear system with two distinct speeds: a fast gear at a 156:1 ratio for quick, no-load spooling of the rope in and out, and a slow gear at a 437:1 ratio that delivers maximum pulling force during an actual winching pull. This lets the winch combine fast rope handling with full power exactly when it's needed. A 12V DC permanent-magnet motor rated at 1.4 kW (1.9 HP) and a fully welded steel drum round out the rugged build. It ships with a durable synthetic rope measuring 9.5 mm in diameter and 16.5 m in length, fitted with an integrated soft shackle. Additional features include a hawse fairlead, a pull-and-turn free-spool clutch, and a fully automatic mechanical load-holding brake. Control is available via wired or wireless remote, and the entire unit carries an IP68 rating for water and dust resistance.

Technical data:

• Maximum pull: 4,536 kg
• Voltage: 12V DC
• Motor: 1.4 kW (1.9 HP), 12V DC, permanent magnet
• Gear system: 4-stage planetary, two-speed
• Gears: fast 156:1 (no-load spooling) / slow 437:1 (maximum pulling force)

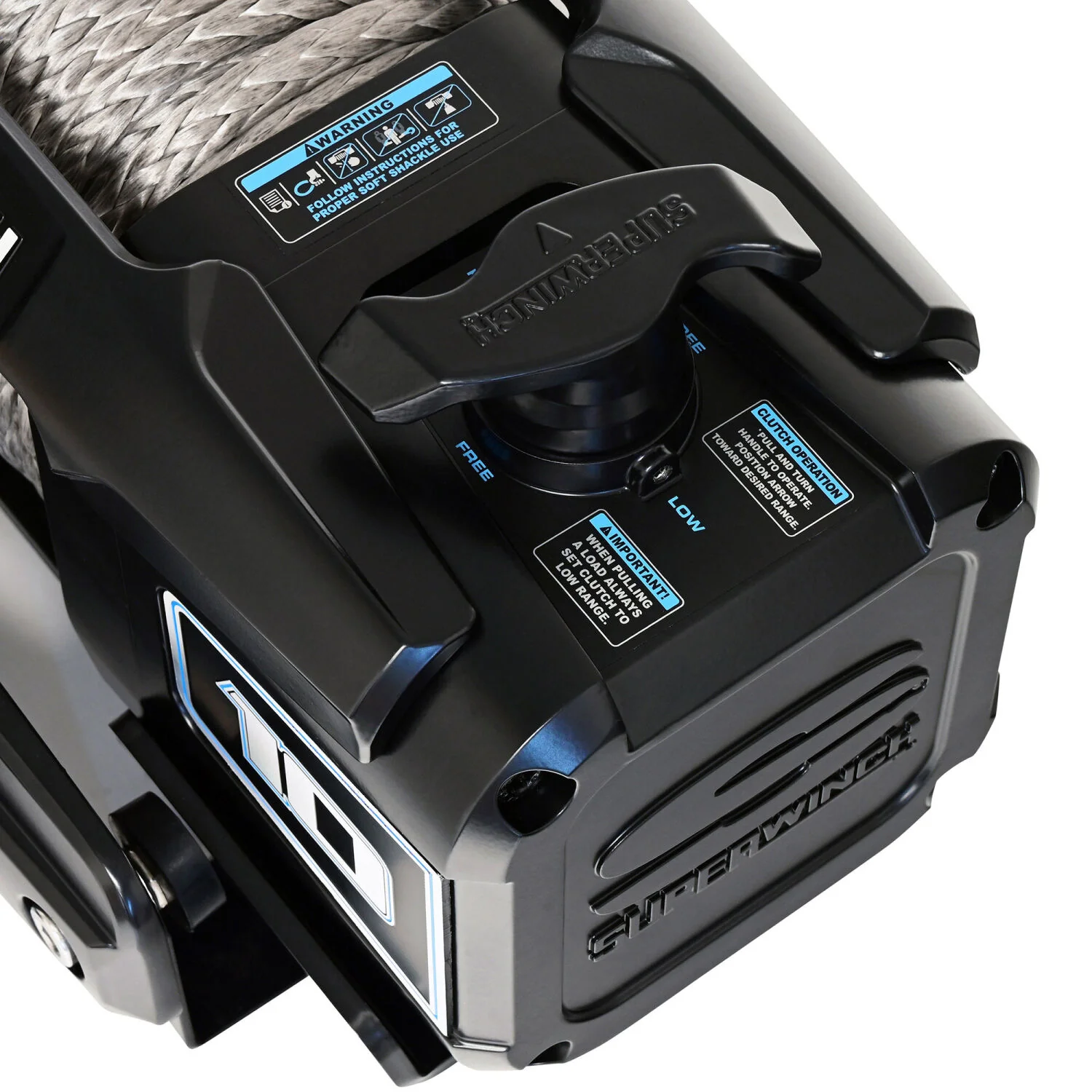

• Clutch: pull-and-turn free-spool
• Brake: automatic mechanical, full load-holding

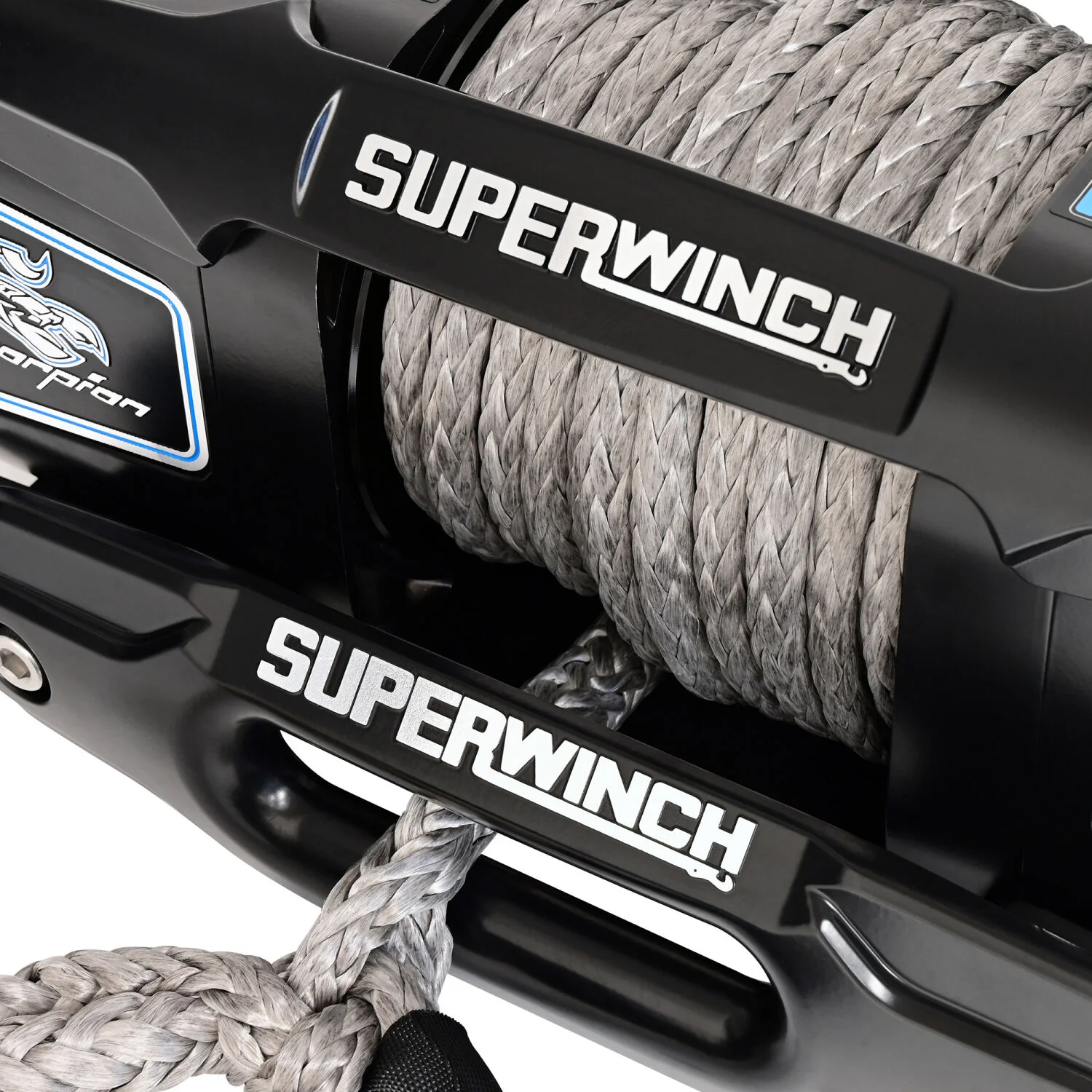

• Rope: synthetic, 9.5 mm diameter, 16.5 m length
• Hook: integrated soft shackle

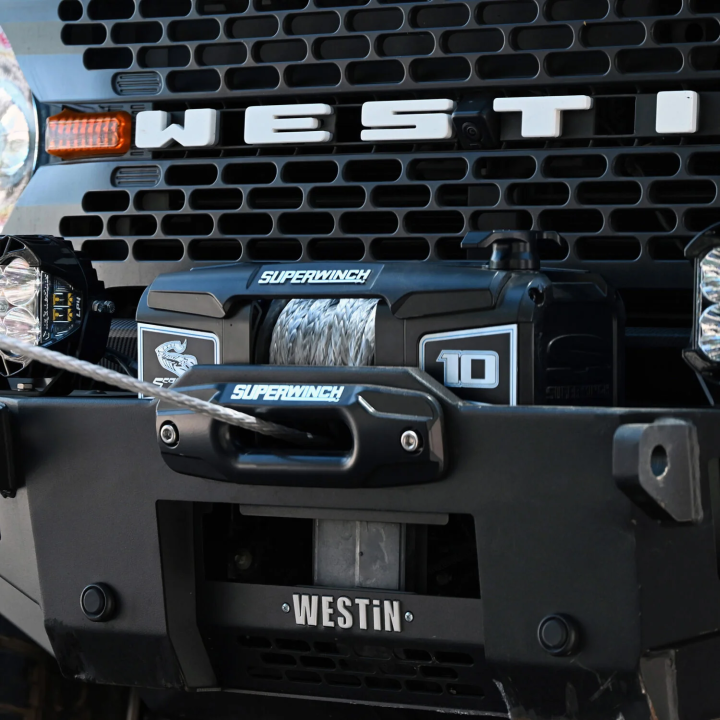

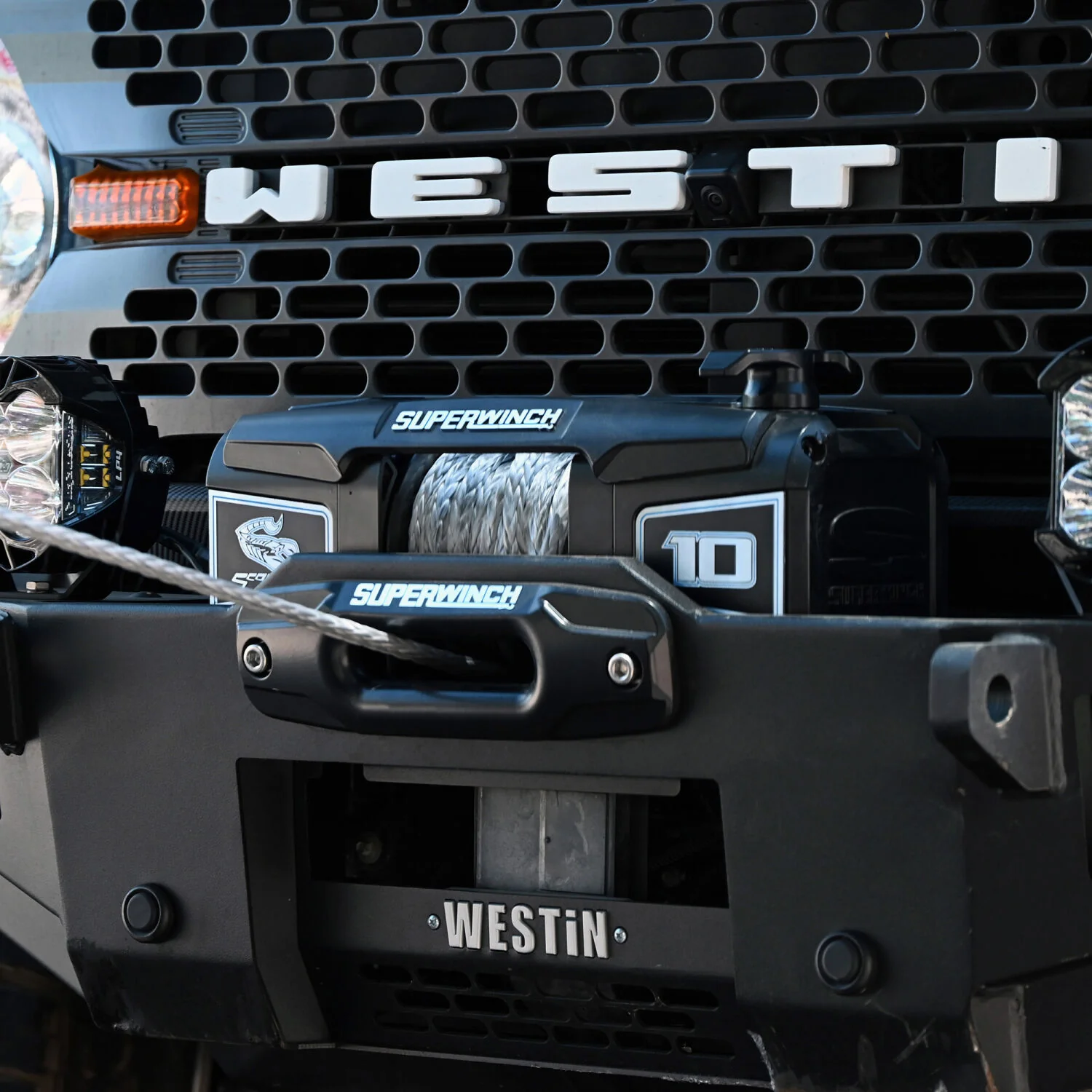

• Fairlead: hawse type

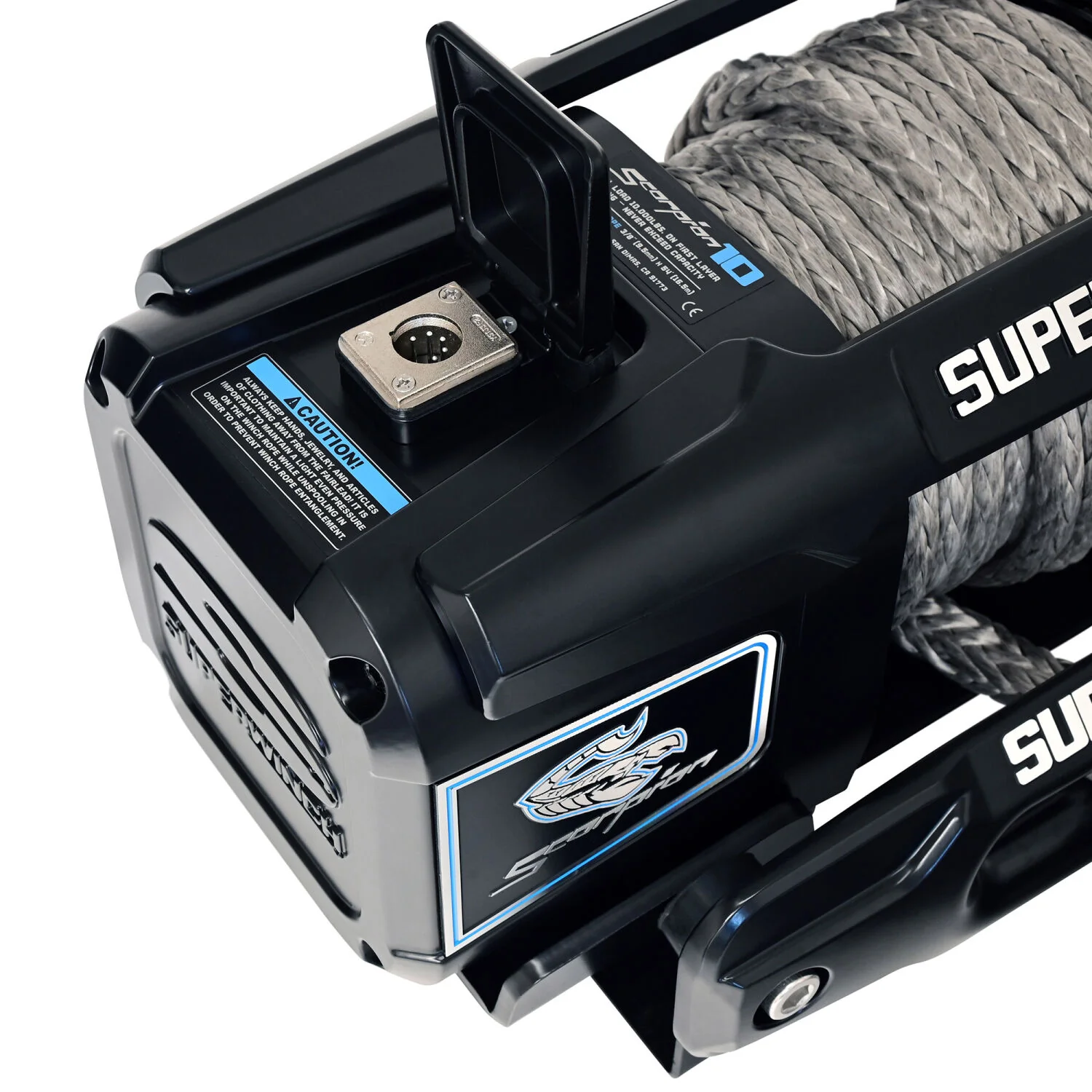

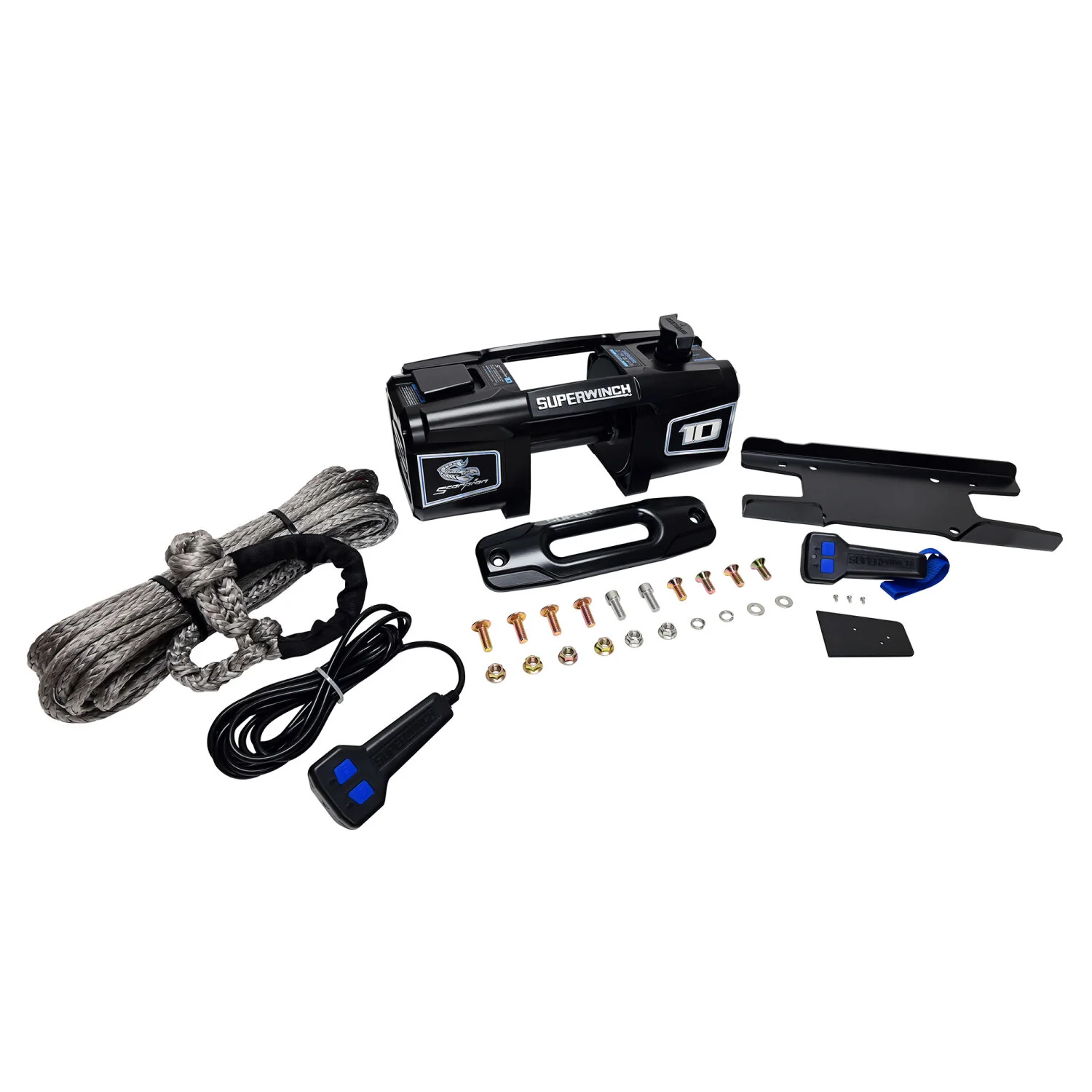

• Control: wired remote + wireless remote
• Ingress protection: IP68 (waterproof & dustproof)

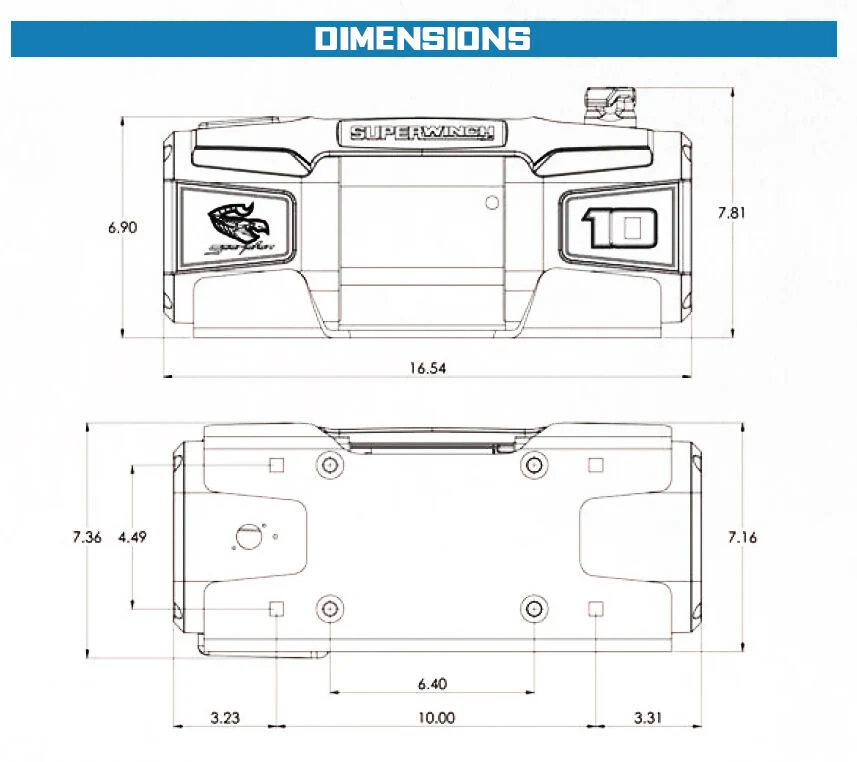

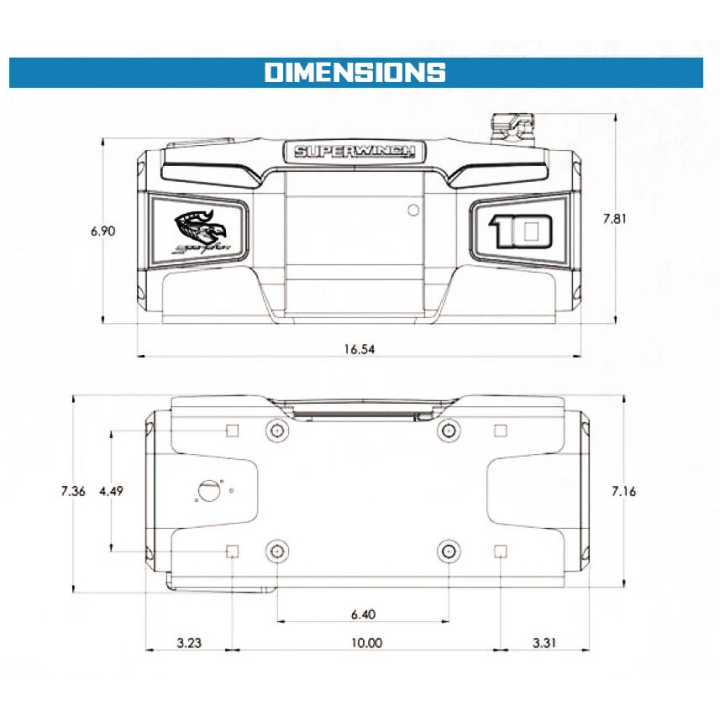

• Mounting pattern: 254 × 114 mm and 162 × 114 mm
• Dimensions: 42 x 18,2 x 19,8 cm
• Weight: 22.2 kg

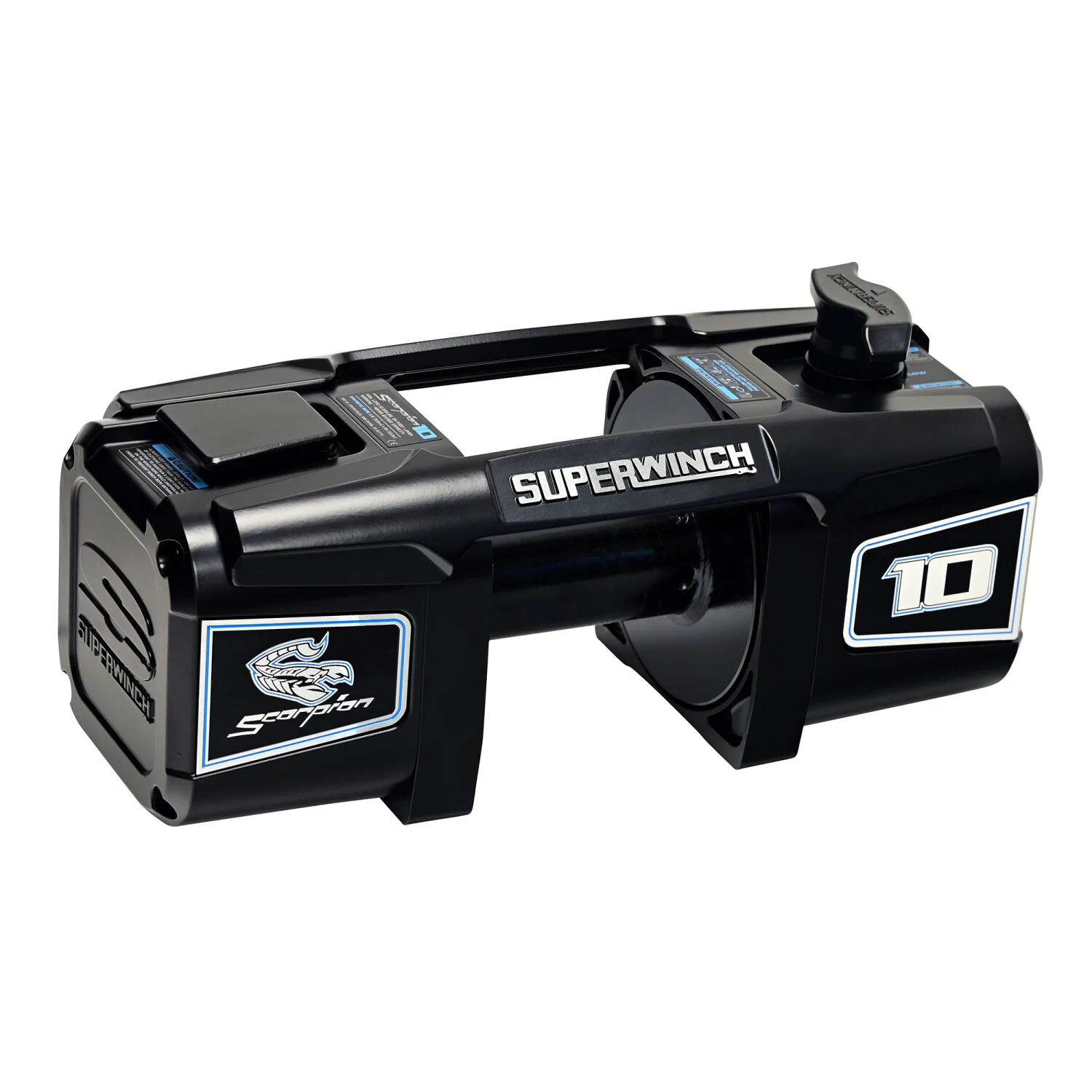

• Drum: fully welded steel
• Color: black
