Hydraulic winch Superwinch H8P-PRO with a long drum

Reference: SUP5060PRO

7 270 00 zł

Podmiot odpowiedzialny za ten produkt na terenie UE:

WESTIN SUPERWINCH Zobacz adres

Description

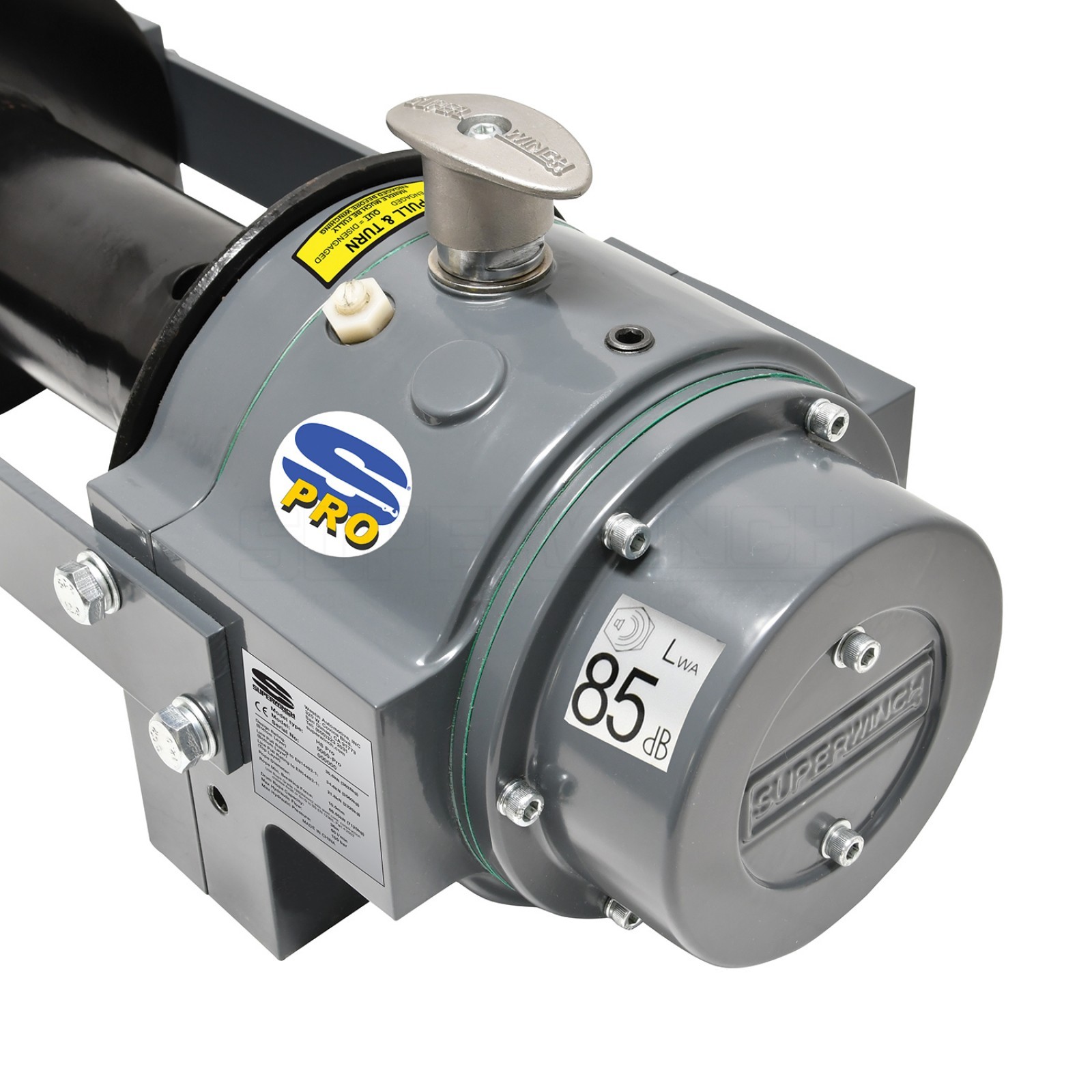

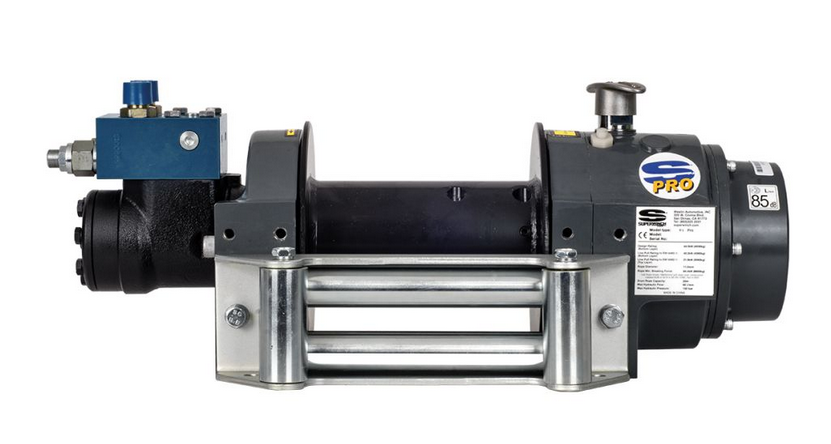

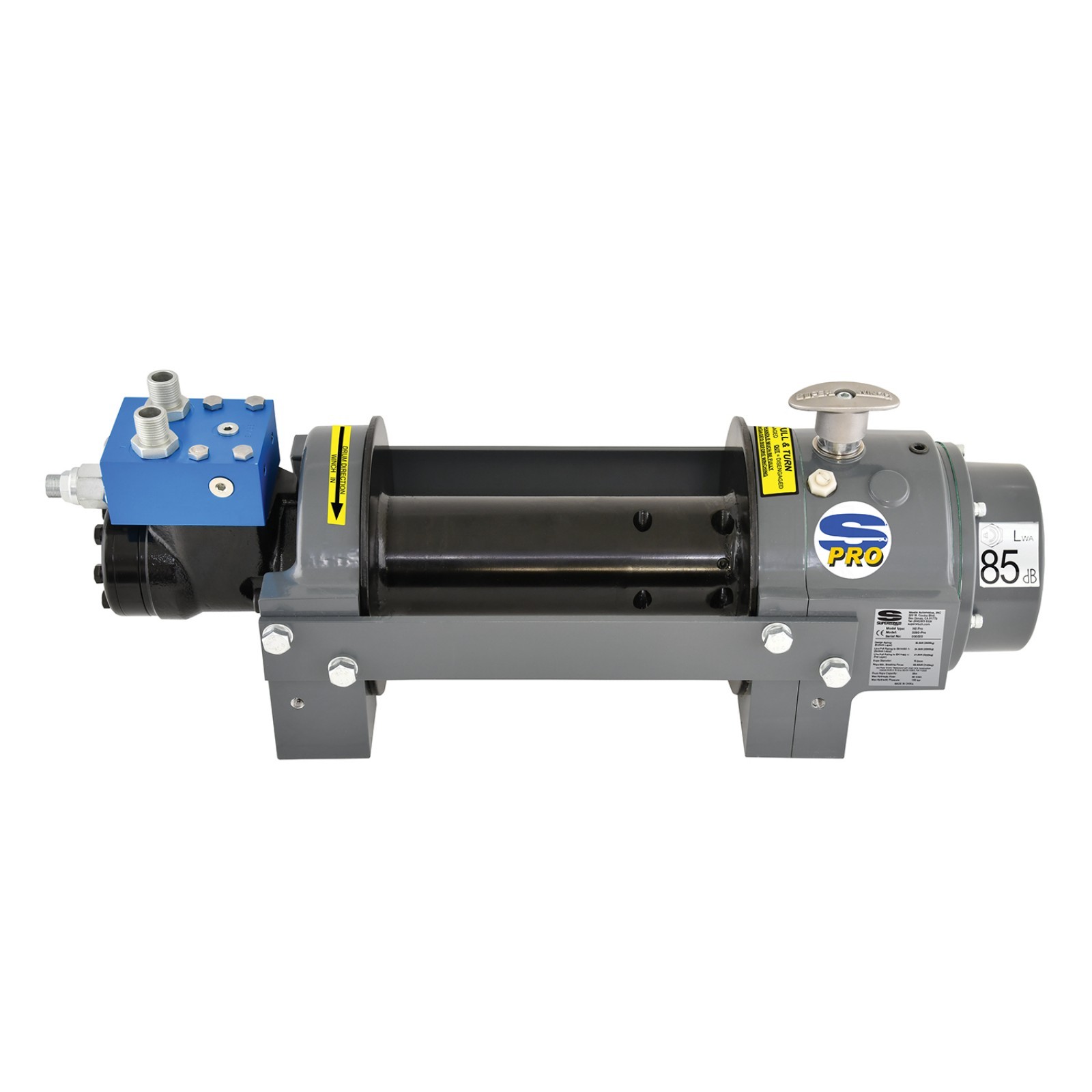

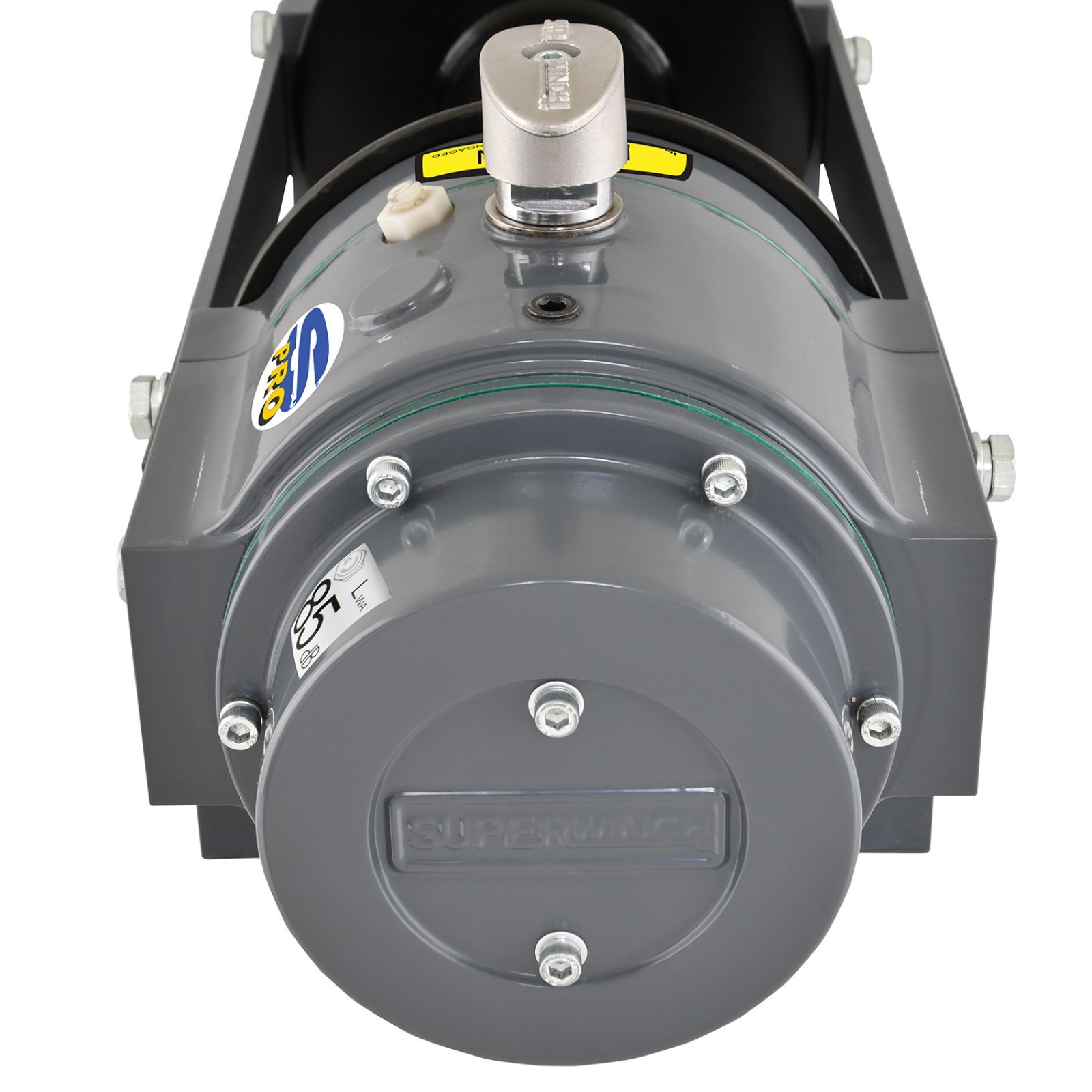

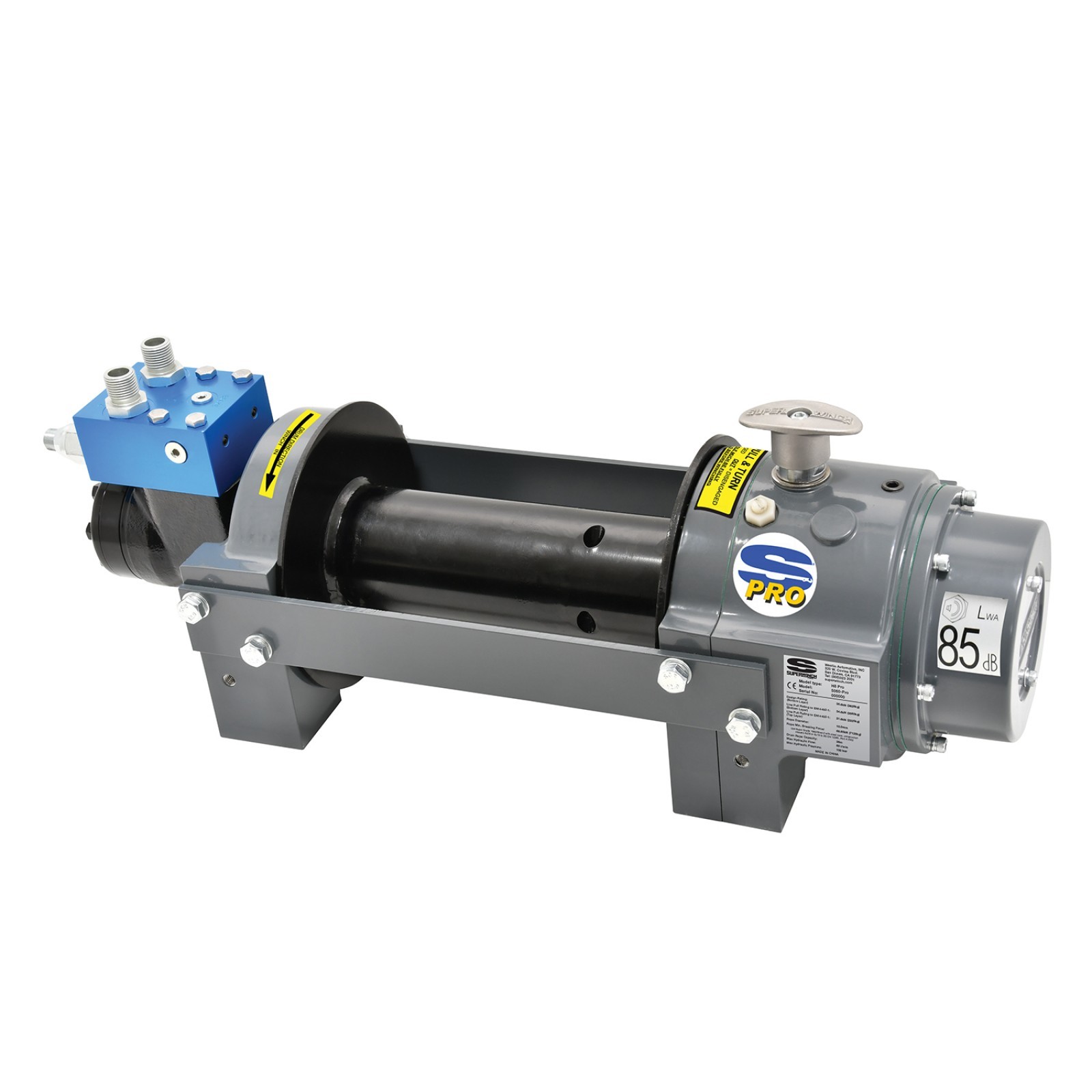

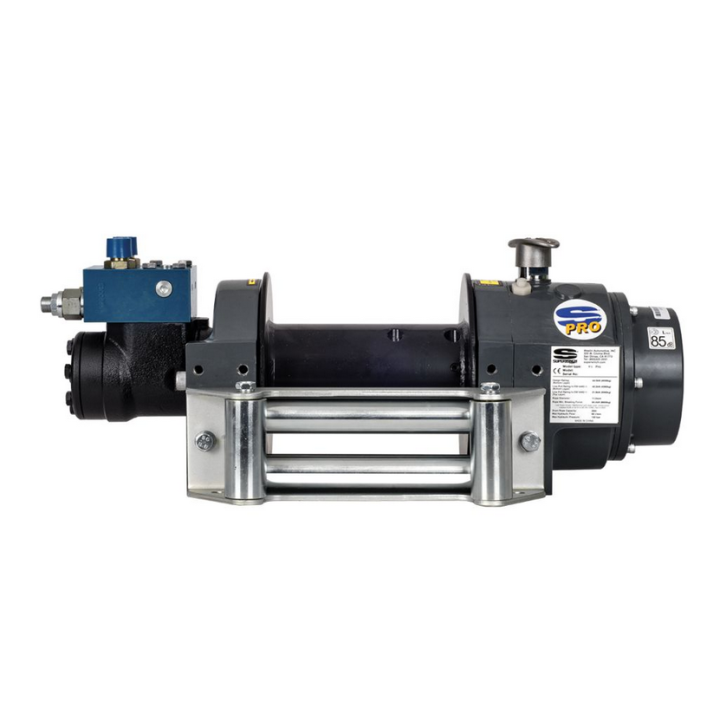

Hydraulic winch Superwinch H8P-PRO with a long drum

The hydraulic winches, the PRO series, from the manufacturer Superwinch meet the European standard according to EN 14492-1. The winches are offered in different versions. The H8P-PRO has a maximum pulling force of 3.5 tons and the H10P-PRO has a maximum pulling force of 4.3 tons. Depending on the required rope length, it is possible to choose between a drum width of 190 mm or 253 mm. The load on the winch cable is reliably held by an integrated mechanical brake. The power transmission from the hydraulic motor to the rope drum is provided by a multi-stage planetary set. The mechanical freewheel allows the rope to be unwound by hand. All hydraulic winches of this series are supplied with a counterbalance valve and a roller fairlead.

Set contains

- roller fairlead

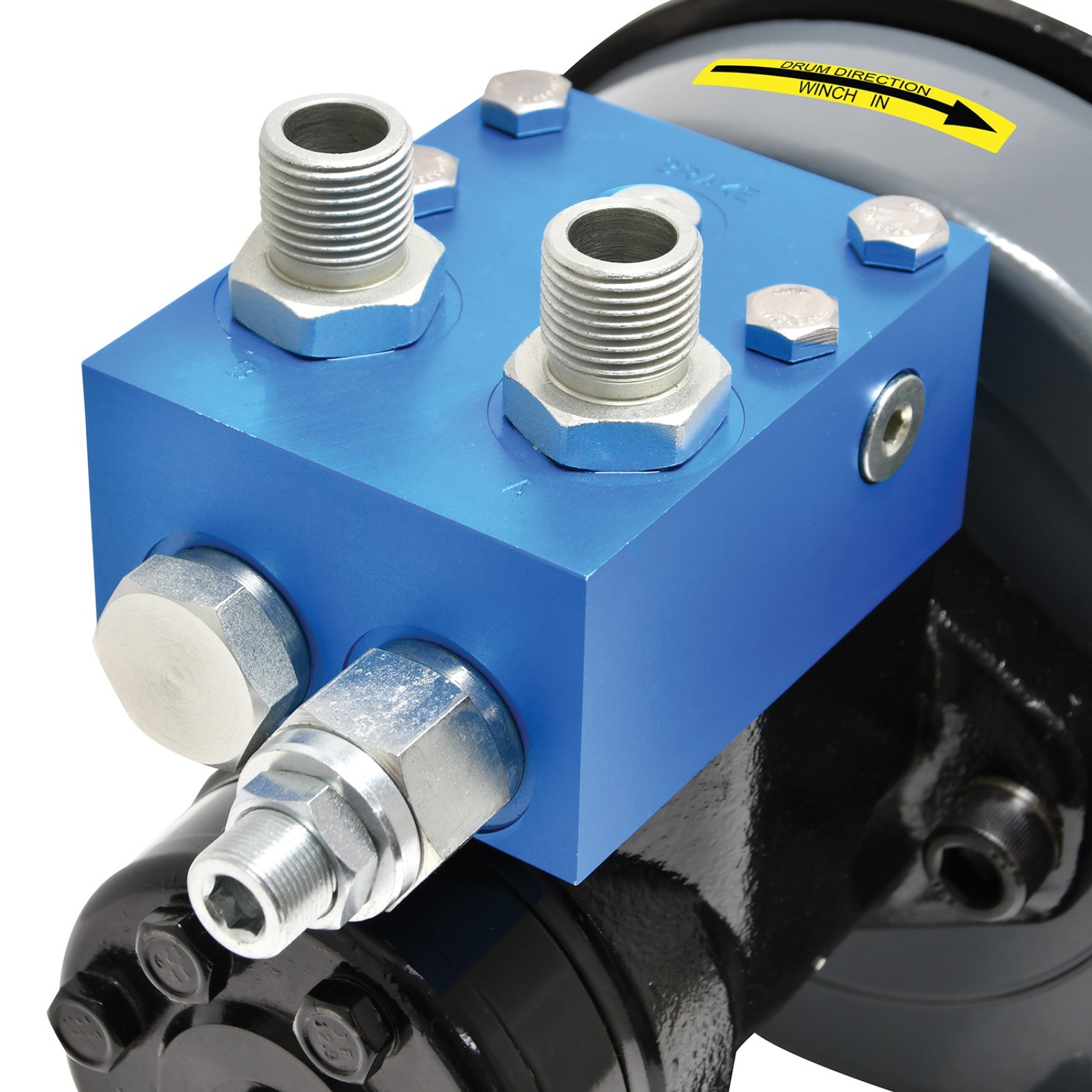

- lowering brake valve

Max. Traction force [t]	3.5
Disengage	manual
Pressure [bar]	150
Oil flow [l/min]	60
Rope speed [m/min]	14.7
Number of mounting holes	16
Hole pattern [mm]	291.5 x 114/171 374 x 114/171
Width [mm]	665
Depth [mm]	209
Height [mm]	228
Weight [kg]	45
