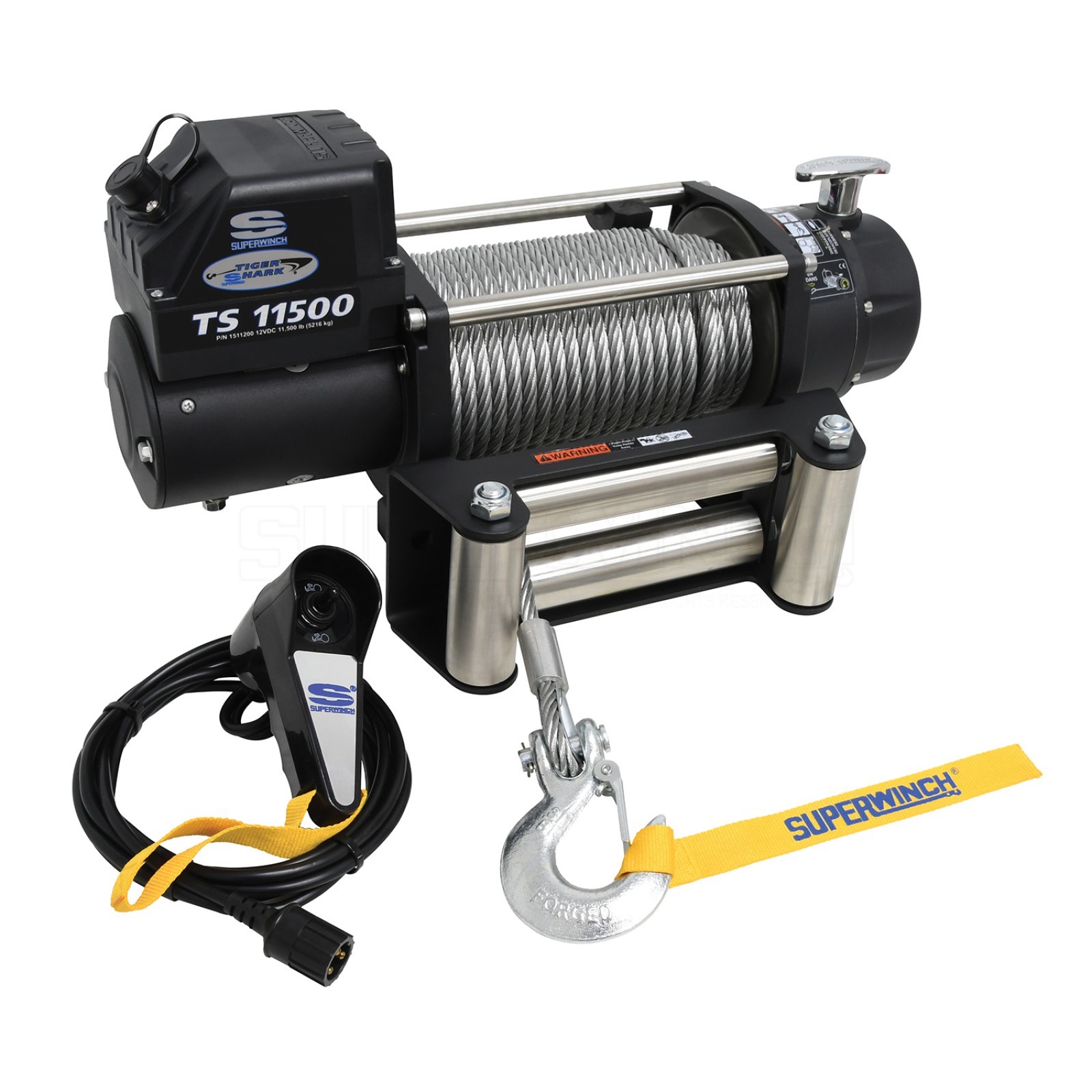

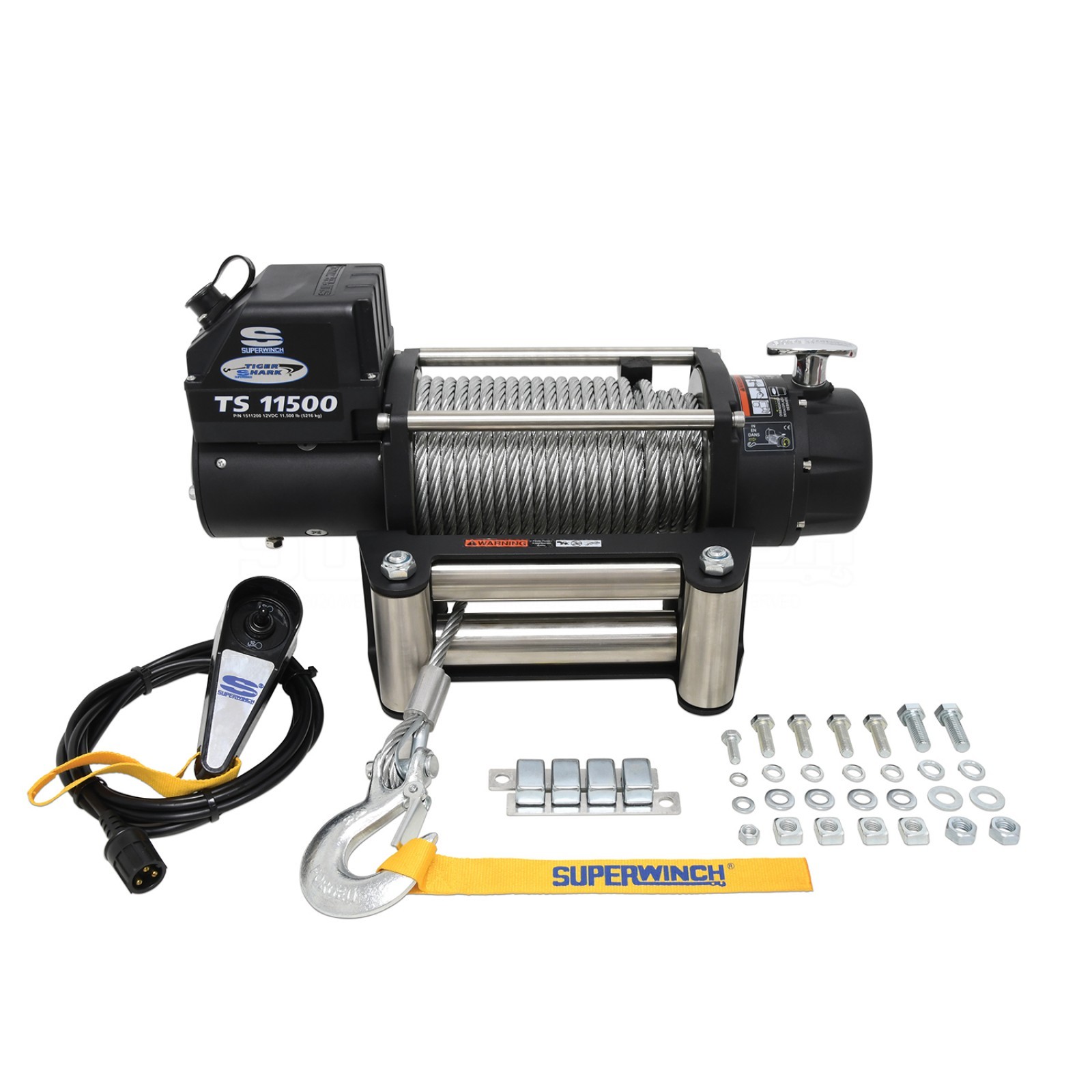

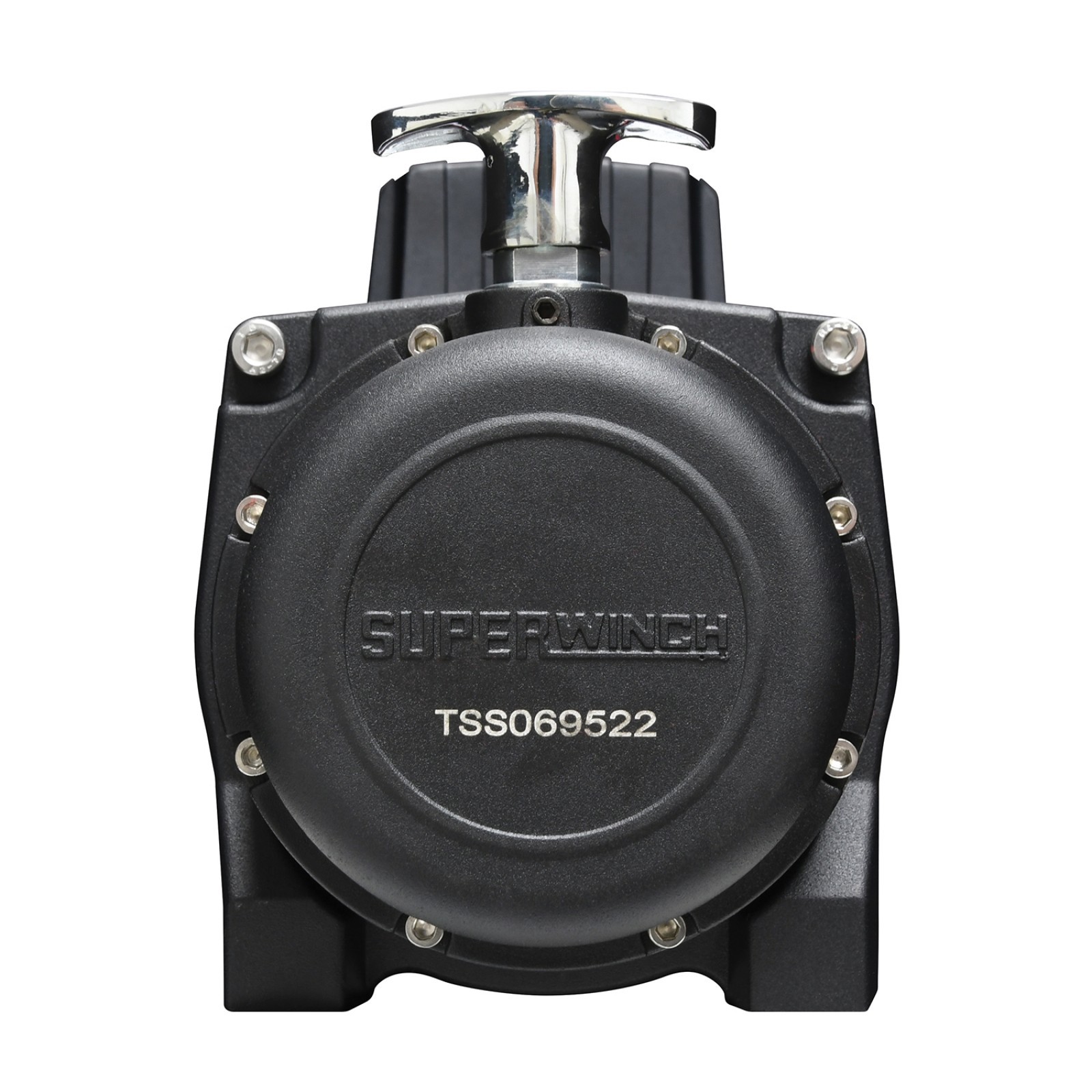

Superwinch TigerShark 11500 12V electric winch
Reference: SUP1511200
EAN: 022705003612
Description
Superwinch TigerShark 11500 12V
The Superwinch Tiger Shark was created as the next generation entry-level winch. Superwinch Engineers took lessons learned over the past 20 years and poured in clever design to produce a winch that earns the "standard issue" title. This is the winch that sets the bar for value - and performance.
The Superwinch TigerShark 11500 is a heavy-duty 12V electric winch equipped with a durable steel rope, designed for serious off-road recovery, utility work, and commercial vehicle applications. Built to handle tough environments, it delivers reliable pulling power and long-lasting performance.
Key features:
Pulling capacity: 11,500 lbs (5,216 kg)
Motor: Powerful 12V DC motor

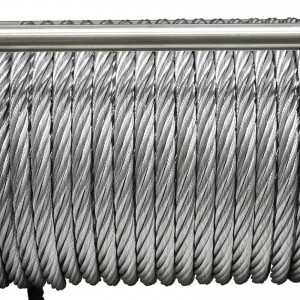

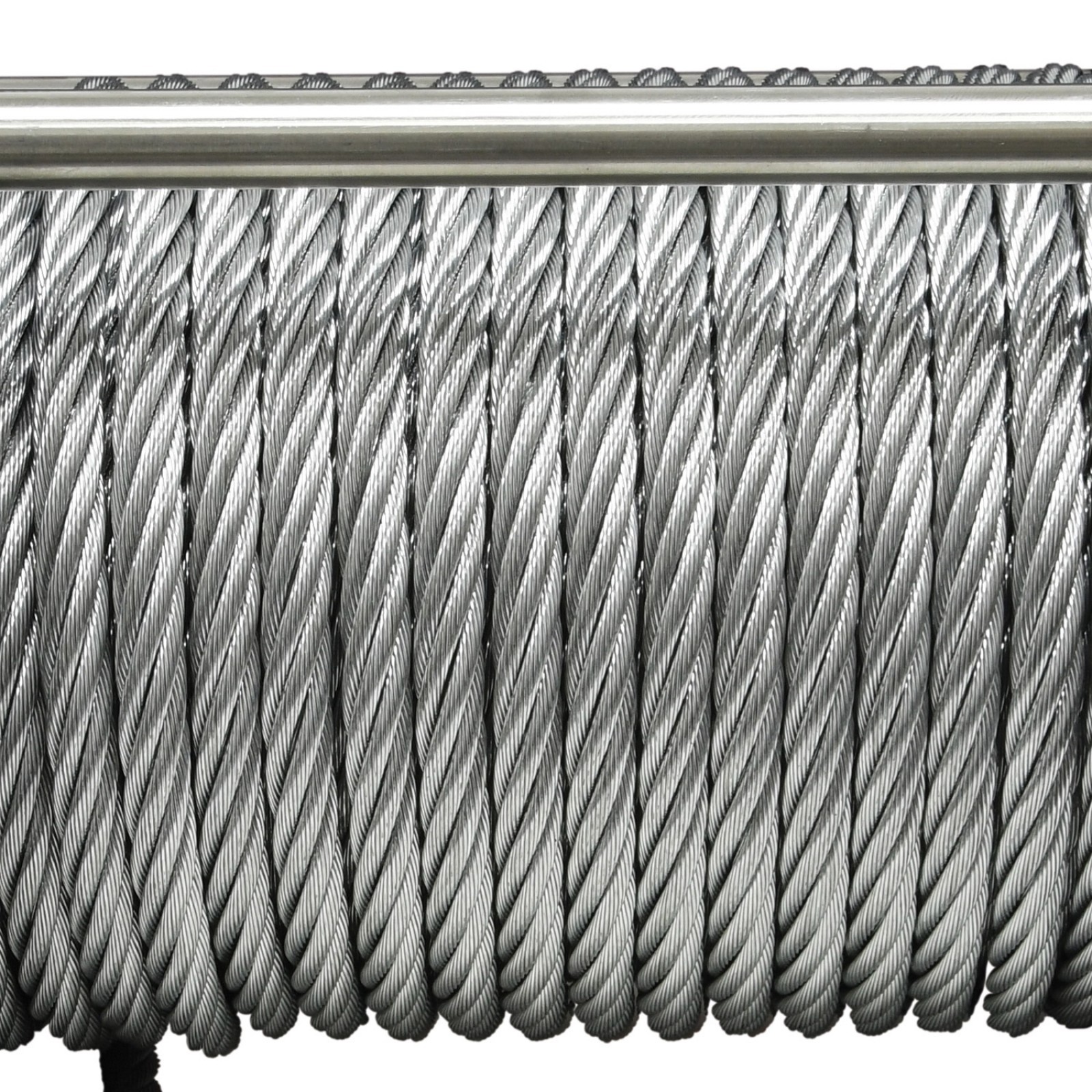

Rope type: Steel rope – highly resistant to abrasion and wear
3-stage planetary gearbox – for smooth and efficient operation
Automatic load-holding brake – ensures safety during use
Weather-sealed housing – ideal for all-weather conditions
Includes wired remote control – for safe and easy operation
Whether you're tackling extreme off-road terrain or need a dependable recovery tool for your work vehicle, the TigerShark 11500 is built to get the job done.
Models | Tiger Shark 11,500 1511200 | Tiger Shark 11,500 SR (Synthetic) 1511201 |
Rated Line Pull | 11,500 lbs (5,216 kg) |
Motor | Sealed 6.0 HP Series Wound |
Gearing | 3-Stage Planetary |
Gear Ratio | 218:1 |

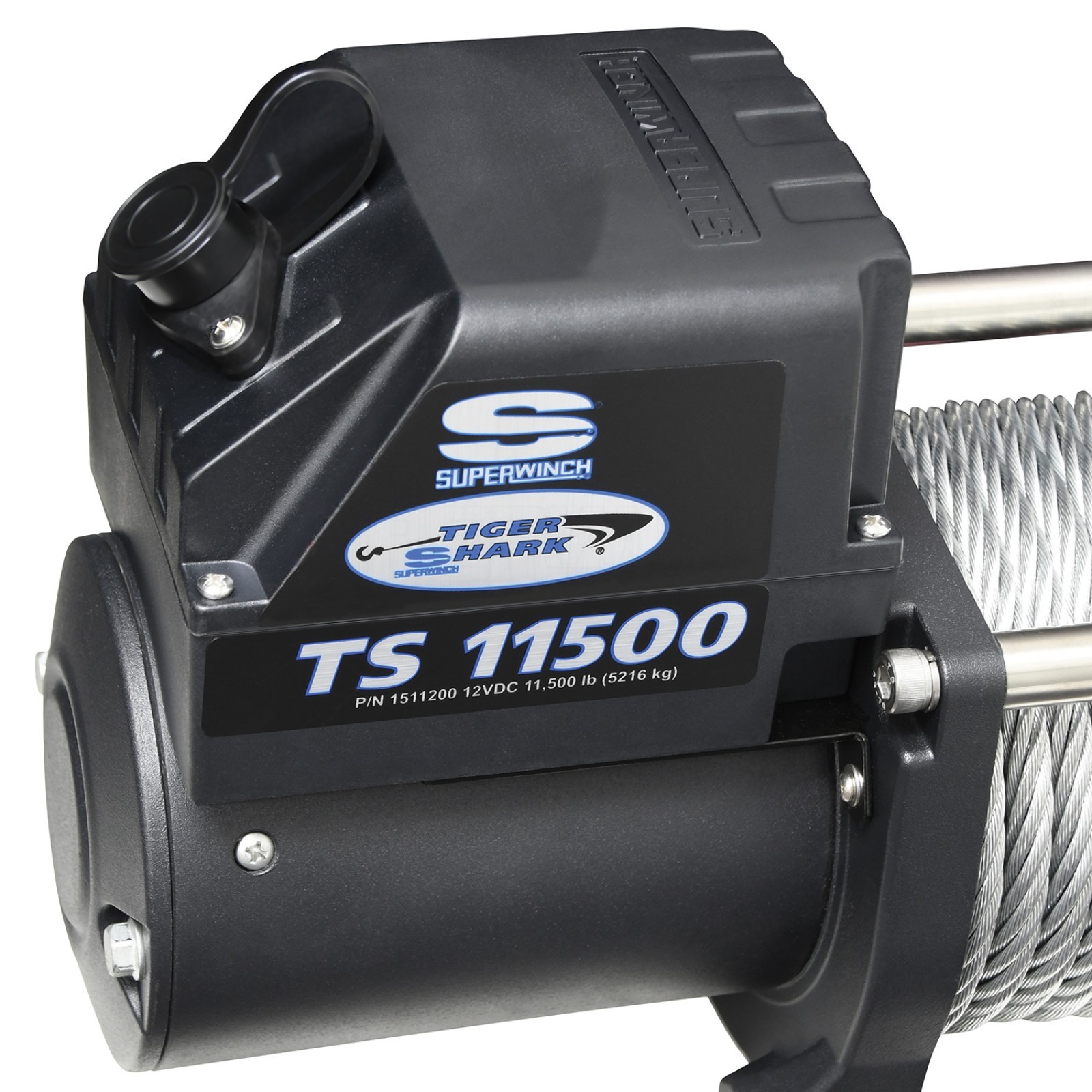

Solenoid | Weather Sealed Solenoid and Circuit Breaker Protected |

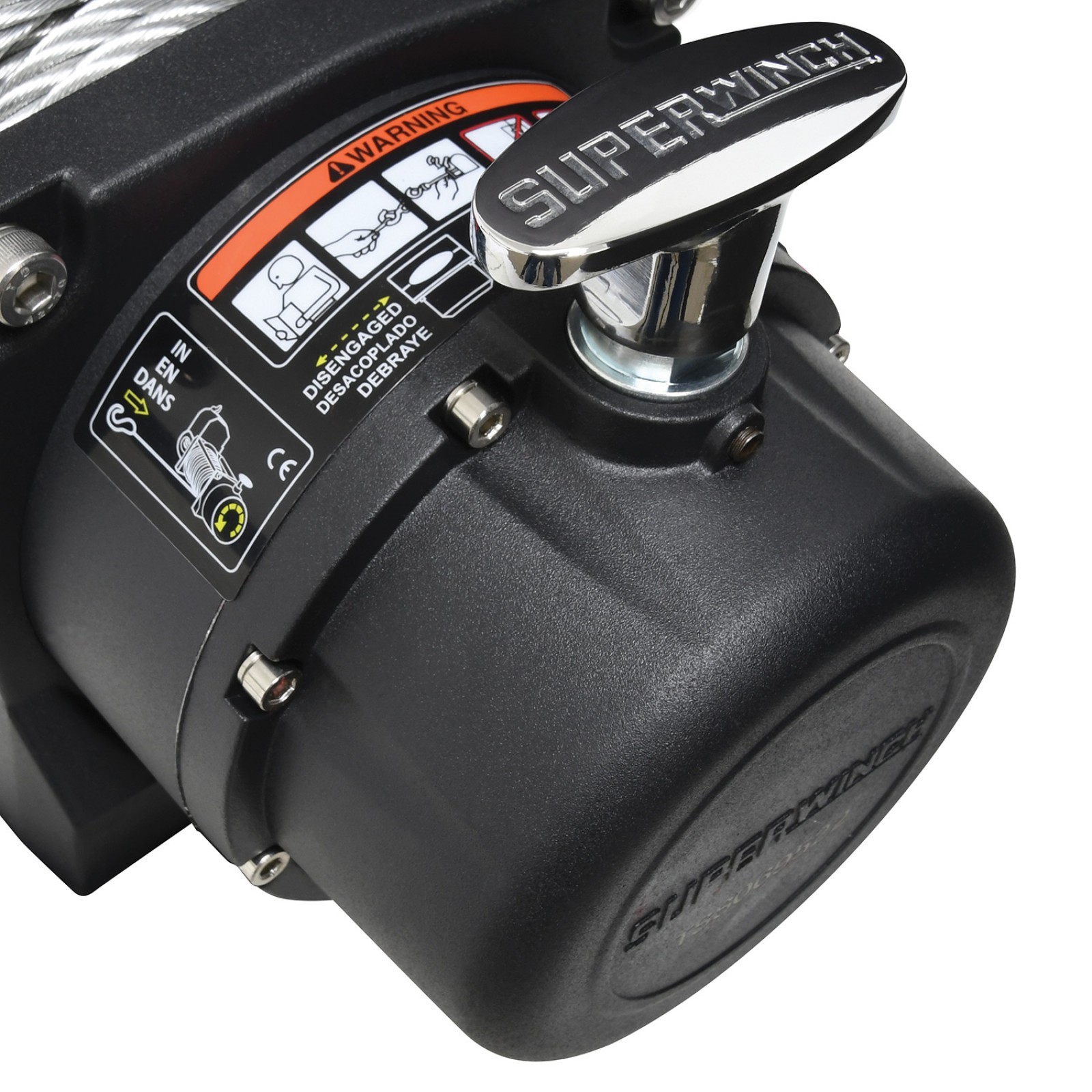

Clutch | Pull and Turn, Ergo |
Brake | Mechanical, Automatic Load Holding |
Rope | Wire 3/8" x 84' (9.5mm x 26m) | Synthetic 80' x 3/8" Dyneema |

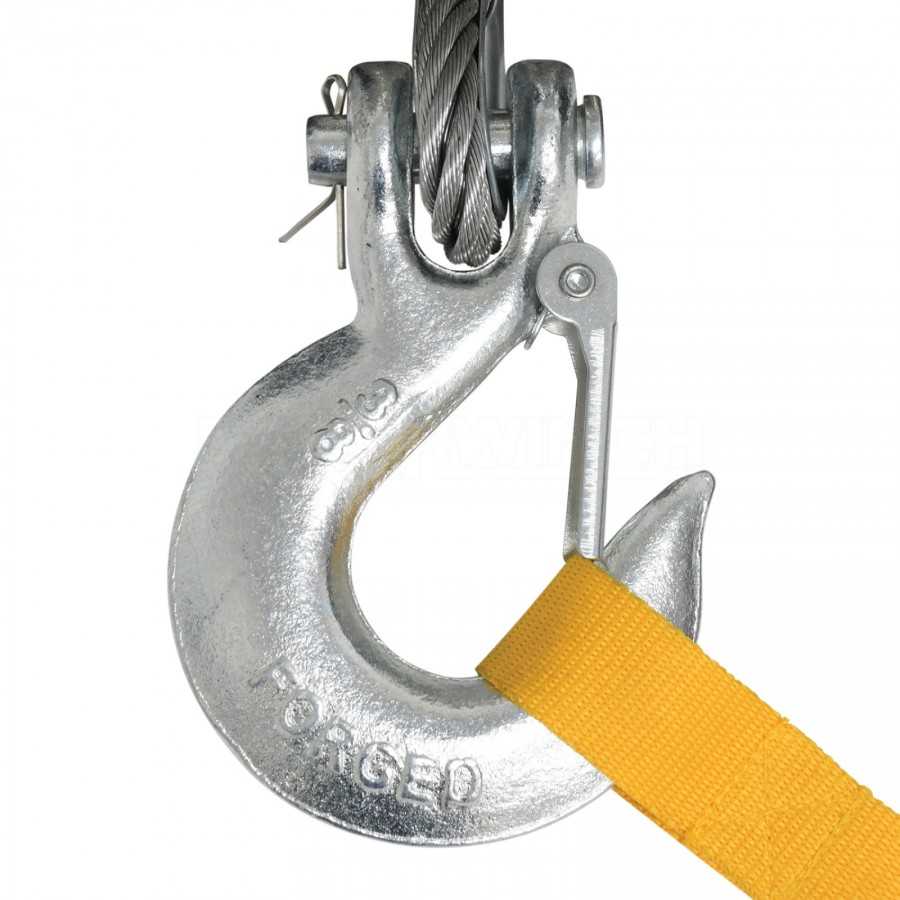

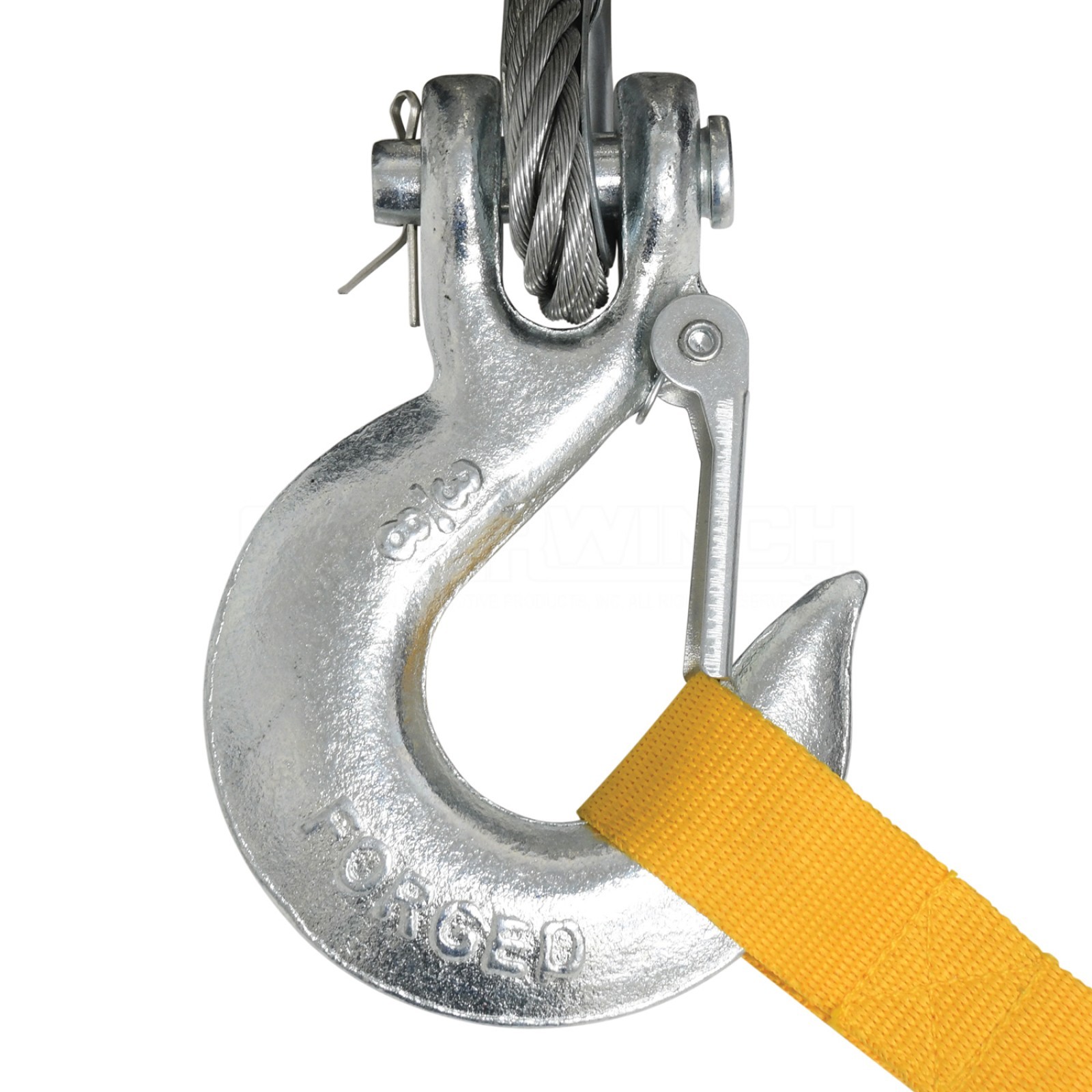

Hook | Heavy Duty Clevis Pinned Latched |
Fairlead | Heavy-Duty, Stainless Steel 4-Way Roller | CNC'd Billet Aluminum Hawse |
Remote | 12' Rubber Sealed Hand-held |
Dimensions | 20.8" L x 6.3" W x 9.2 H (529mm L x 160mm W x 234.5mm H) |
Drum Diameter | 2.5" (64mm) |
Drum Length | 9" (228.6mm) |
Installed Weight | 94 lbs. (42 kg) | 63 lbs. (28.6 kg) |
Shipping Weight | 98 lbs (44 kg) | 67 lbs (30.4 kg) |
Warranty | Limited 2 Year Warranty |
UPC | 0 22705 00361 2 | 0 22705 00367 4 |
Line PUll: 0 lbs (0 kgs) | 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed |
Line Pull: 11,500 lbs (5,216 kgs) | 410 Amps Motor Draw/2 FPM (0.6 M/M) Line Speed |
Lead Wires | 6' (1.8m) x 4 gauge (25mm ) |
