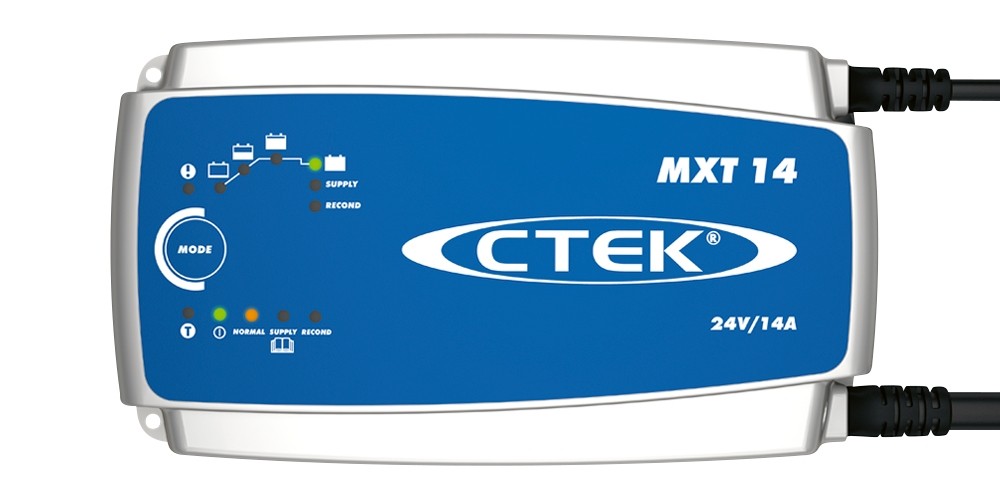

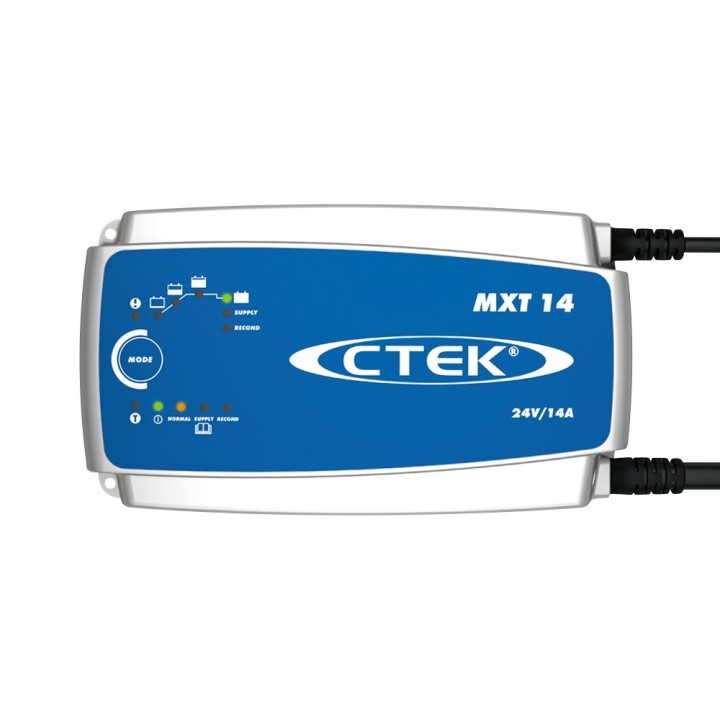

CTEK MXT 14 EU

CTEK MXT 14 EU

Professional 24V battery charging

The ideal 24V solution

The MXT 14 is designed for batteries that are put under a lot of strain, making it ideal for commercial vehicles, buses, trucks and CV workshops.

The MXT 14 professional 8 step 24V battery charger delivers 14A to 24V batteries from 28-300Ah and is suitable for maintenance charging up to 500Ah. Its features include battery diagnosis to establish whether the battery can receive and retain a charge, a Recond mode for restoring and reconditioning stratified and deeply discharged batteries, and a built in temperature sensor for optimised charging regardless of weather conditions. The MXT 14 also has a ‘Supply’ mode so it can be used as a 24V power source.

• Charges 24V batteries from 28-300Ah
• Recond program
• Temperature sensor to compensate for cold conditions
• Can be used as a 24V power source
• IP44 classified for outdoor use

• Fully automatic ‘connect and forget’ 8 step charging
• Patented maintenance charging up to 500Ah
• Easy to read LED display
• Safe spark free operation
• Reverse polarity protected
• Short circuit proof
• 2-year warranty

Input

220–240VAC, 50–60Hz, 2.9A max

Output

28.8V/31.6V/27.2V, 14A max

Start voltage

2.0V

Back current drain*

Corresponding to less than 1Ah/month

Ambient temperature

-20˚C to +50˚C

Battery types

All types of lead-acid batteries, 24V, WET, MF, Ca/Ca, AGM, GEL

Battery capacity

28–500Ah

Warranty

2 years

Insulation class

IP44

Ripple**

Less than 4%
