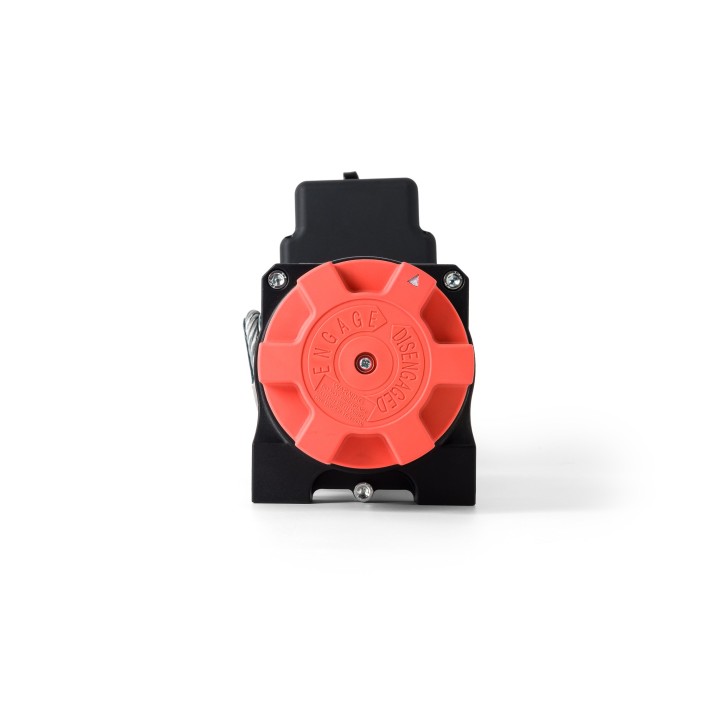

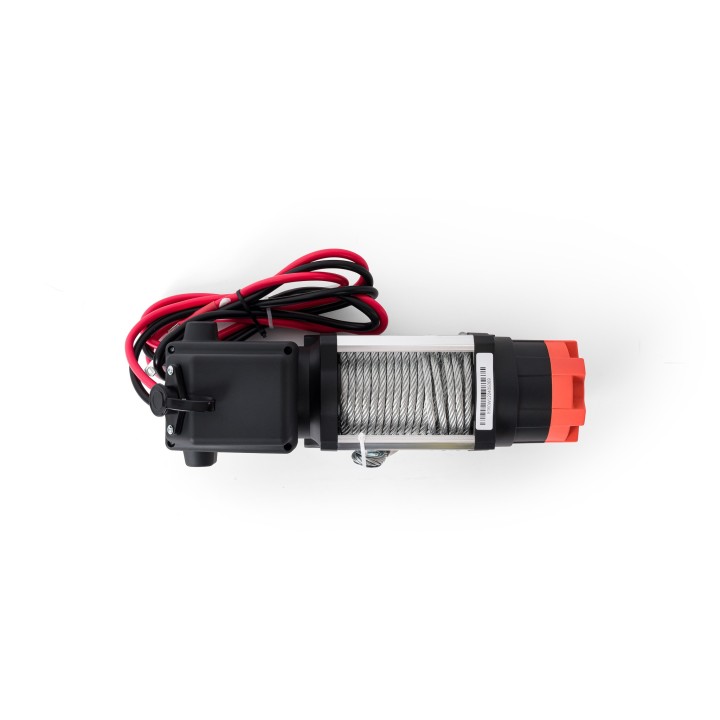

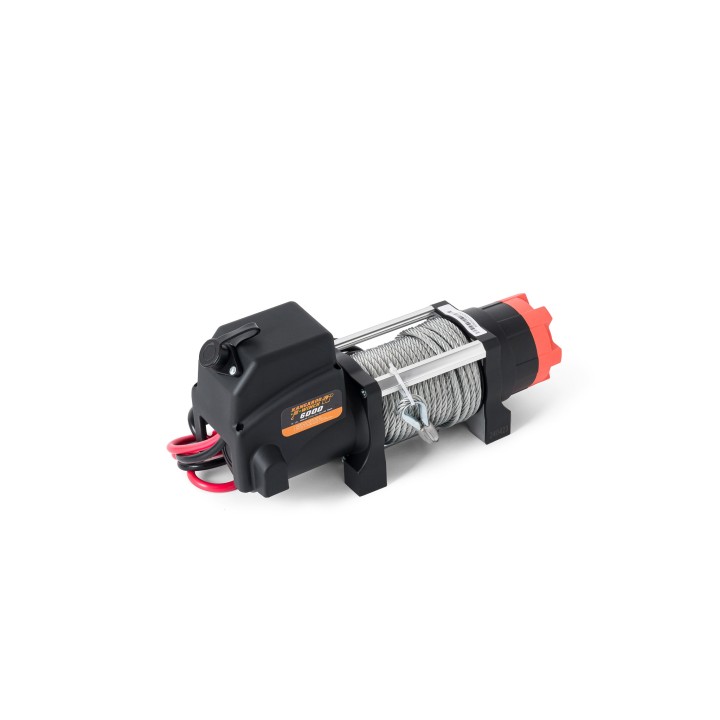

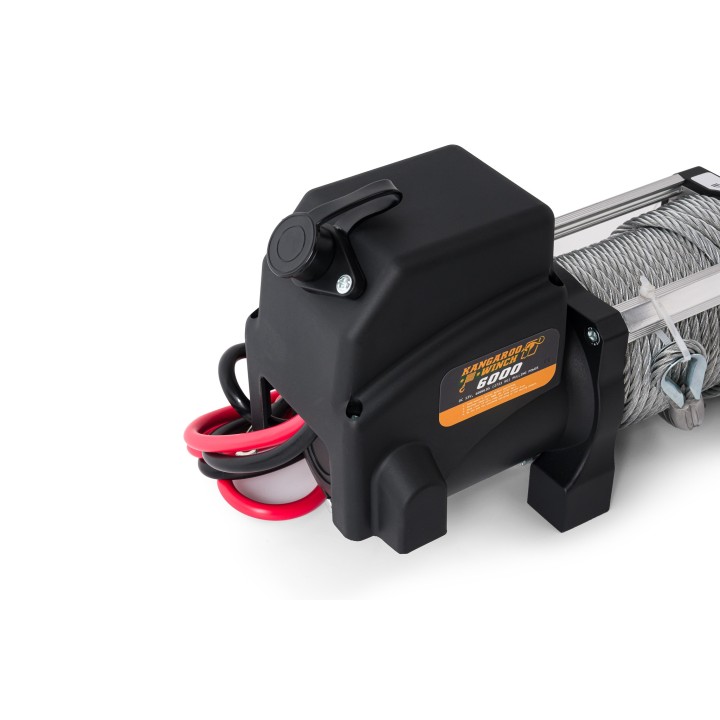

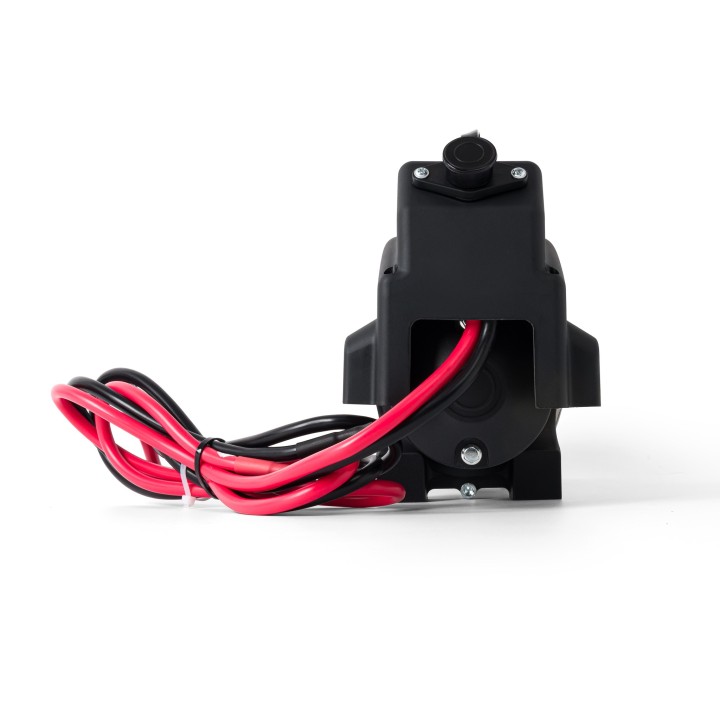

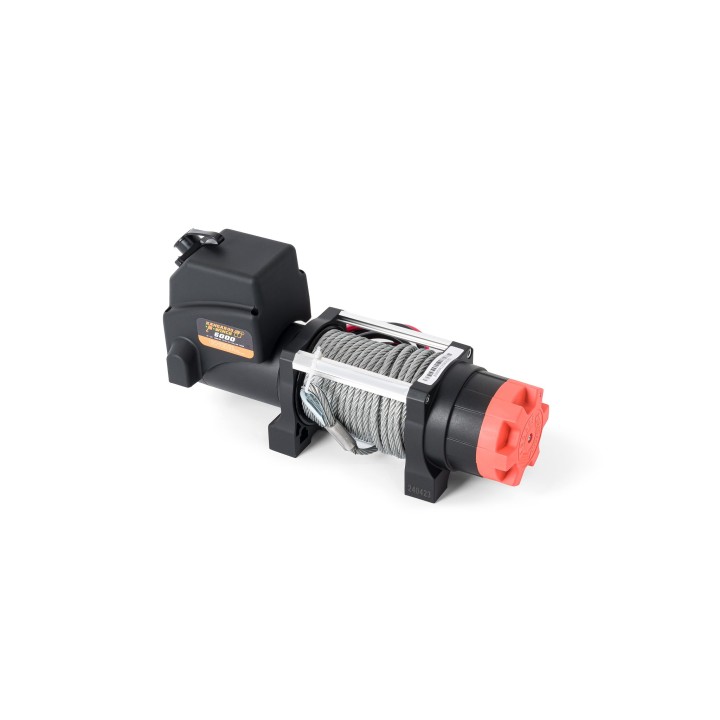

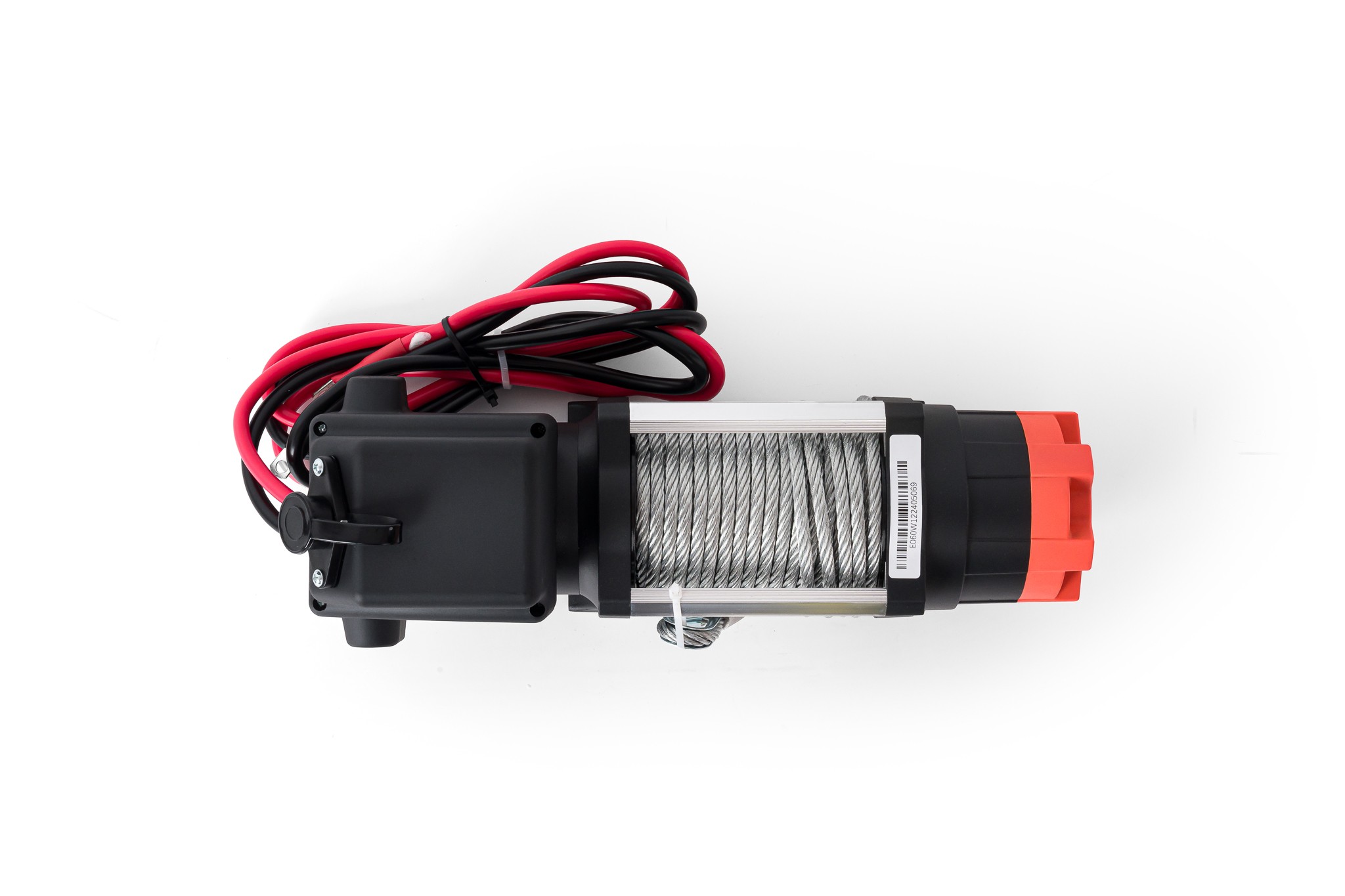

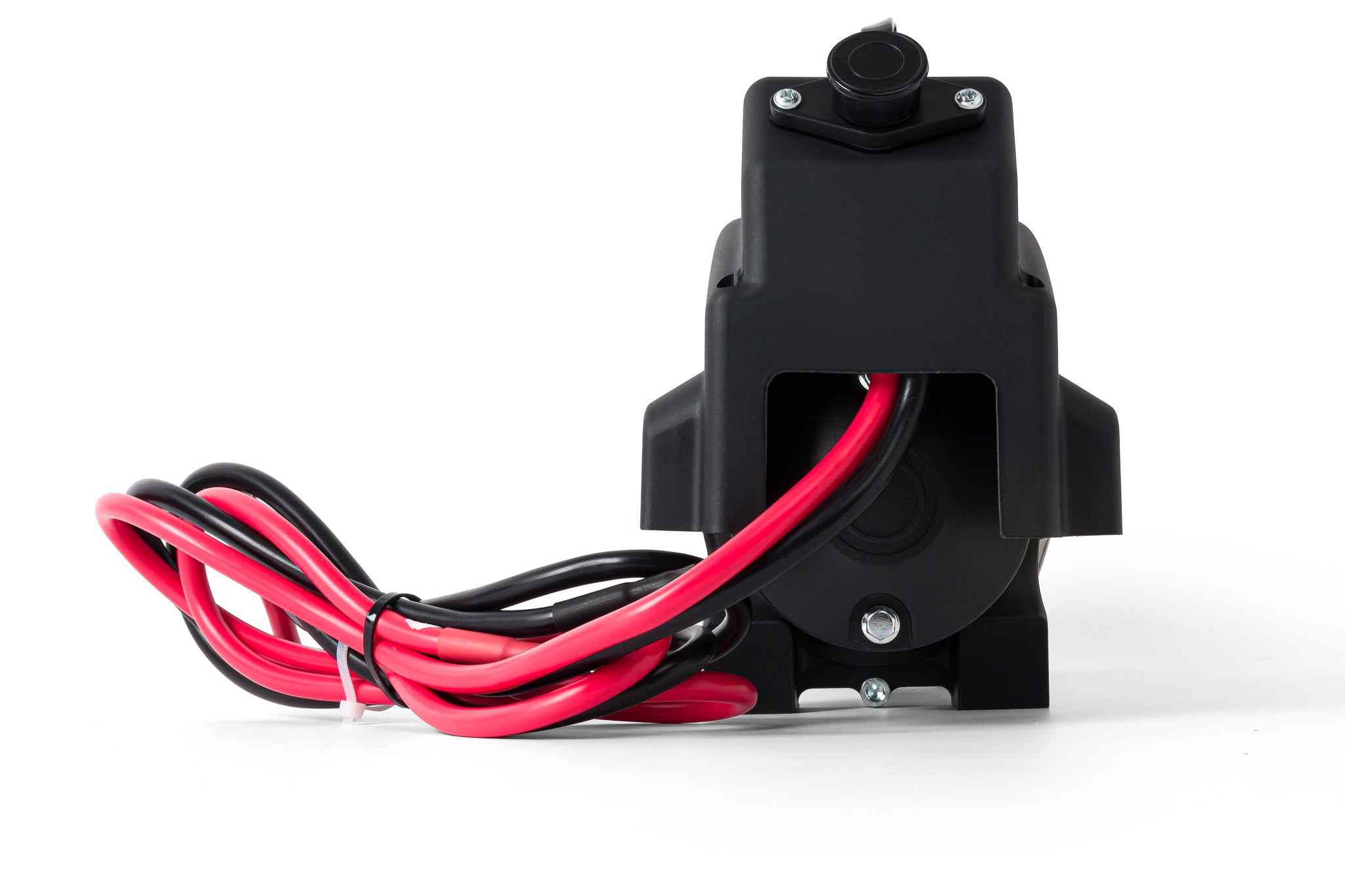

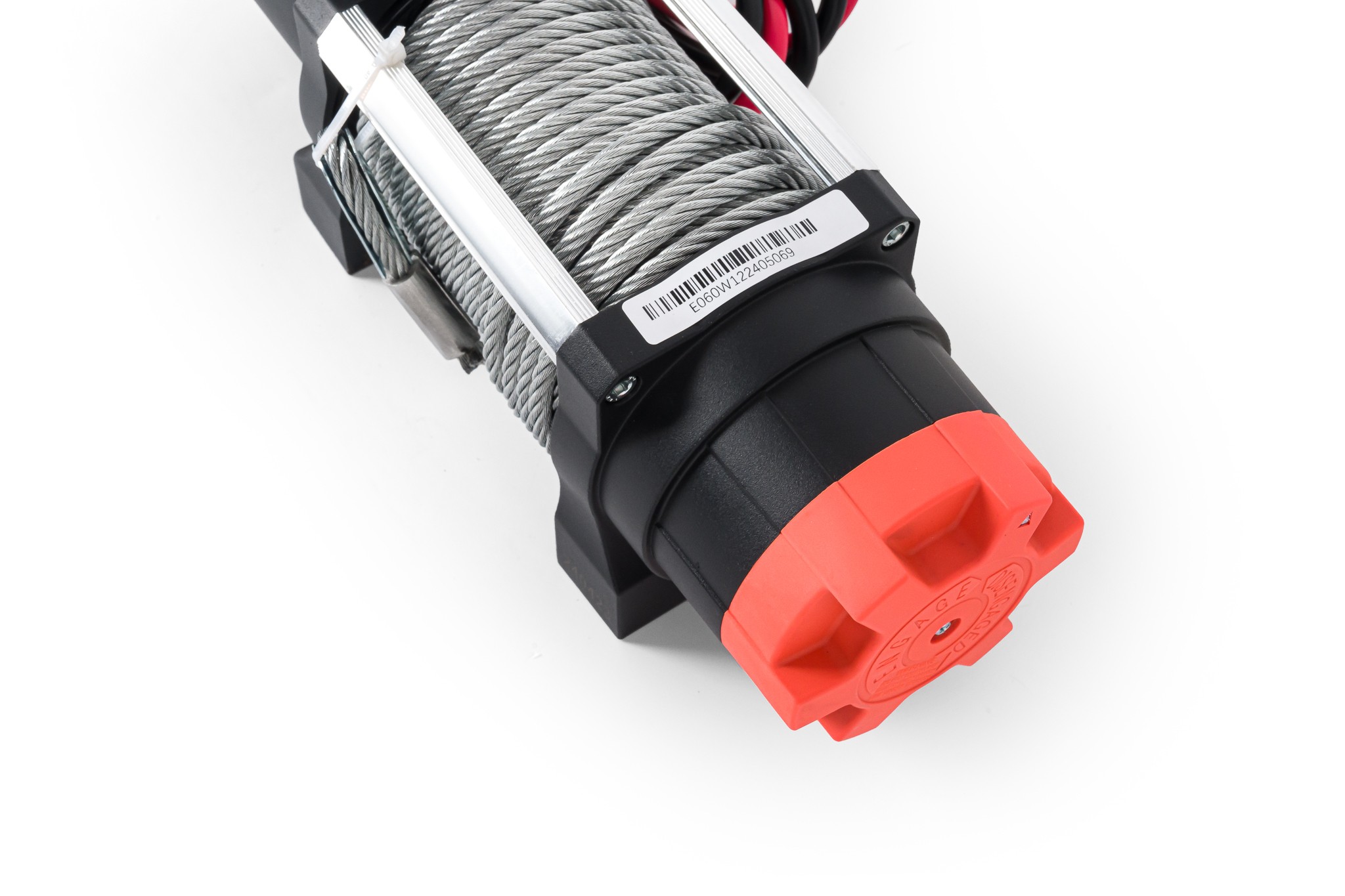

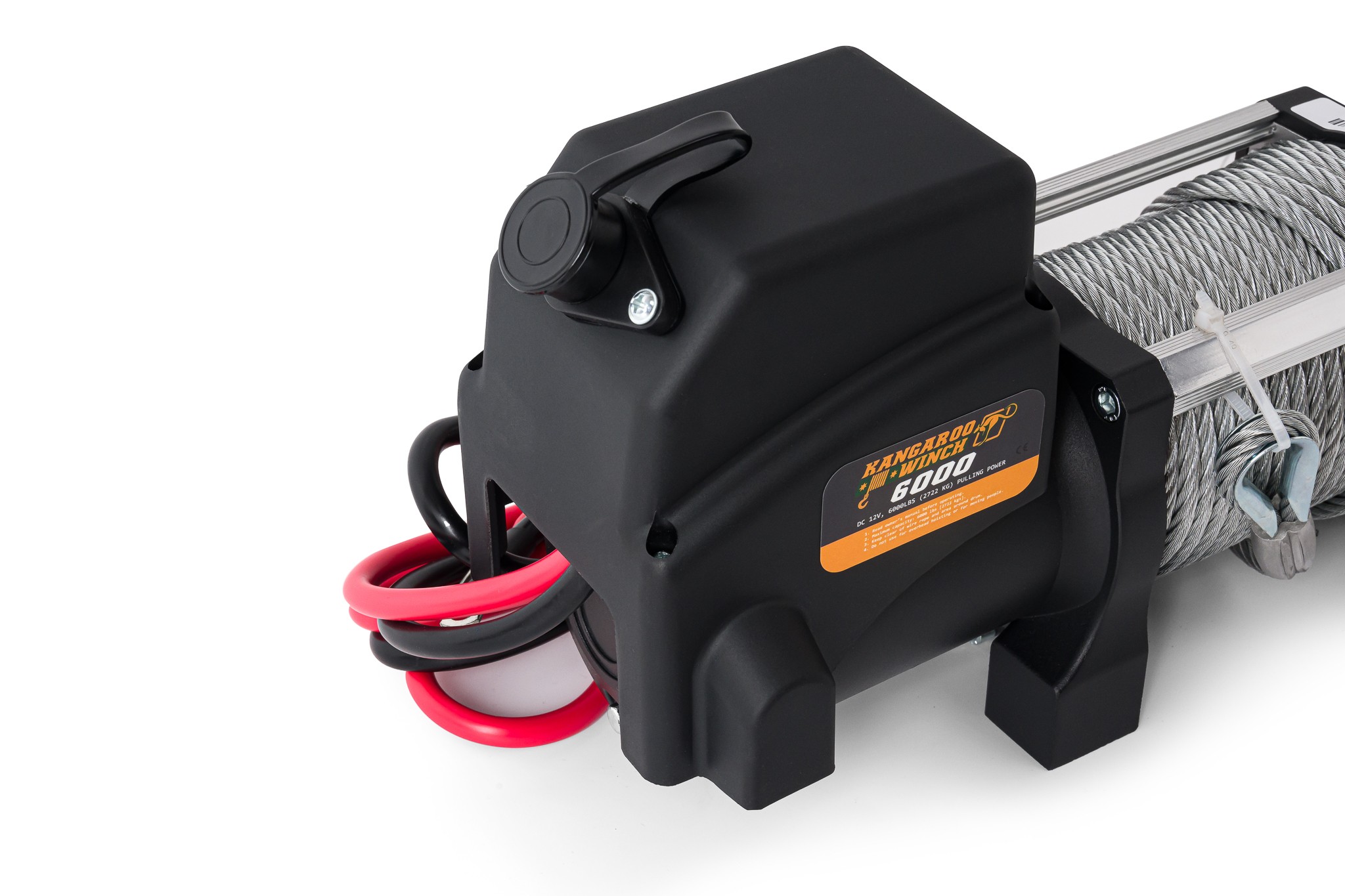

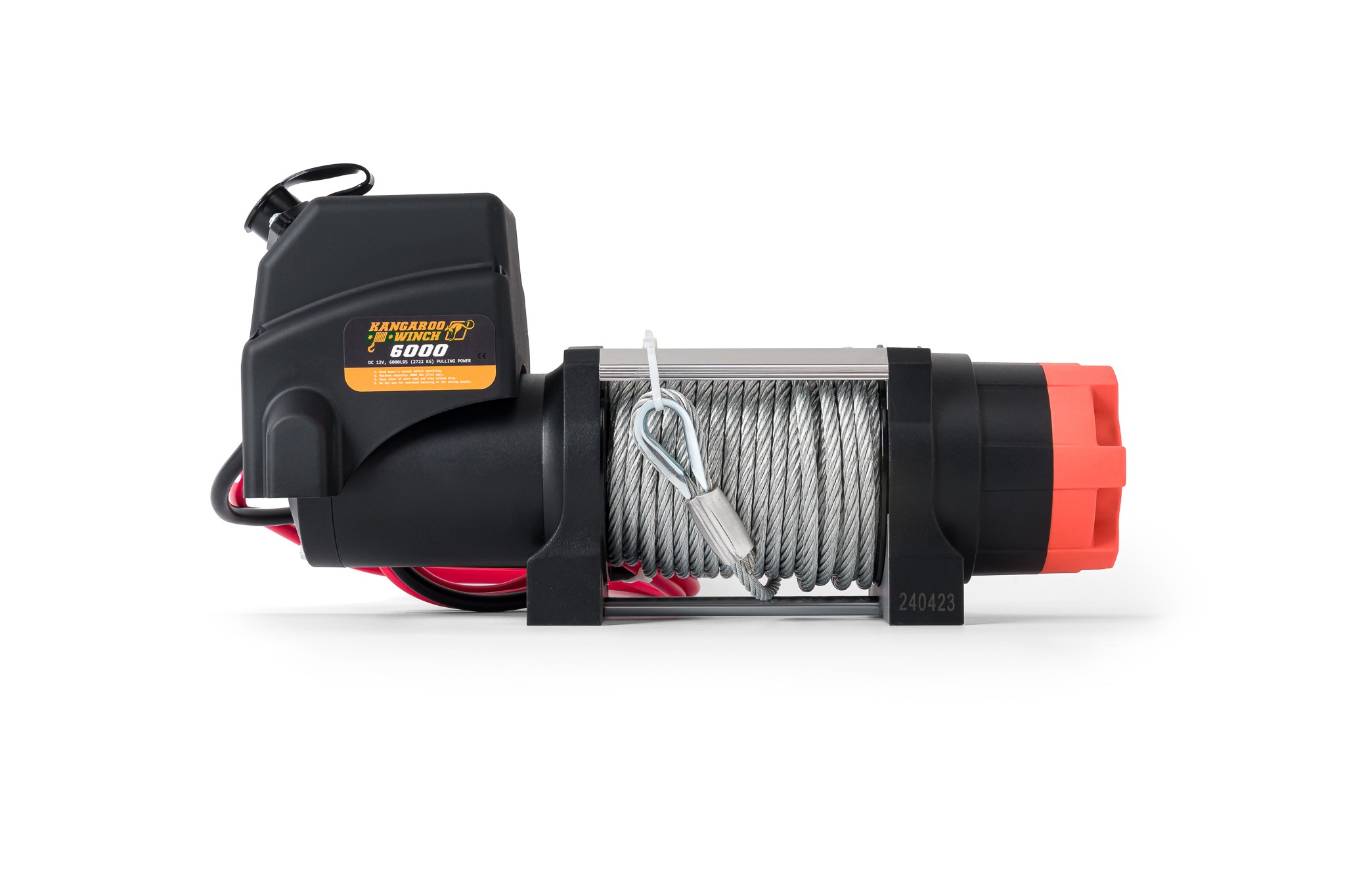

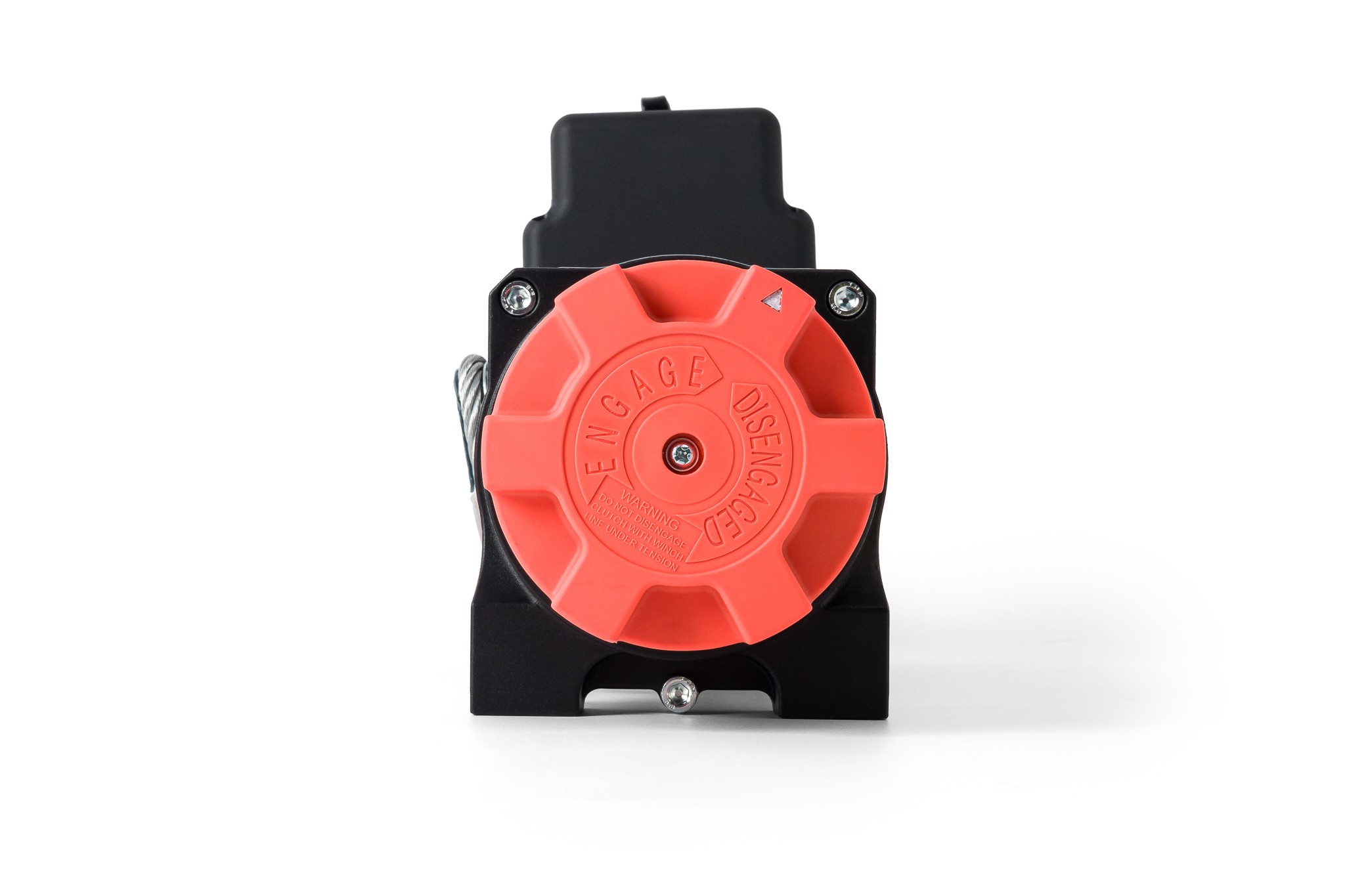

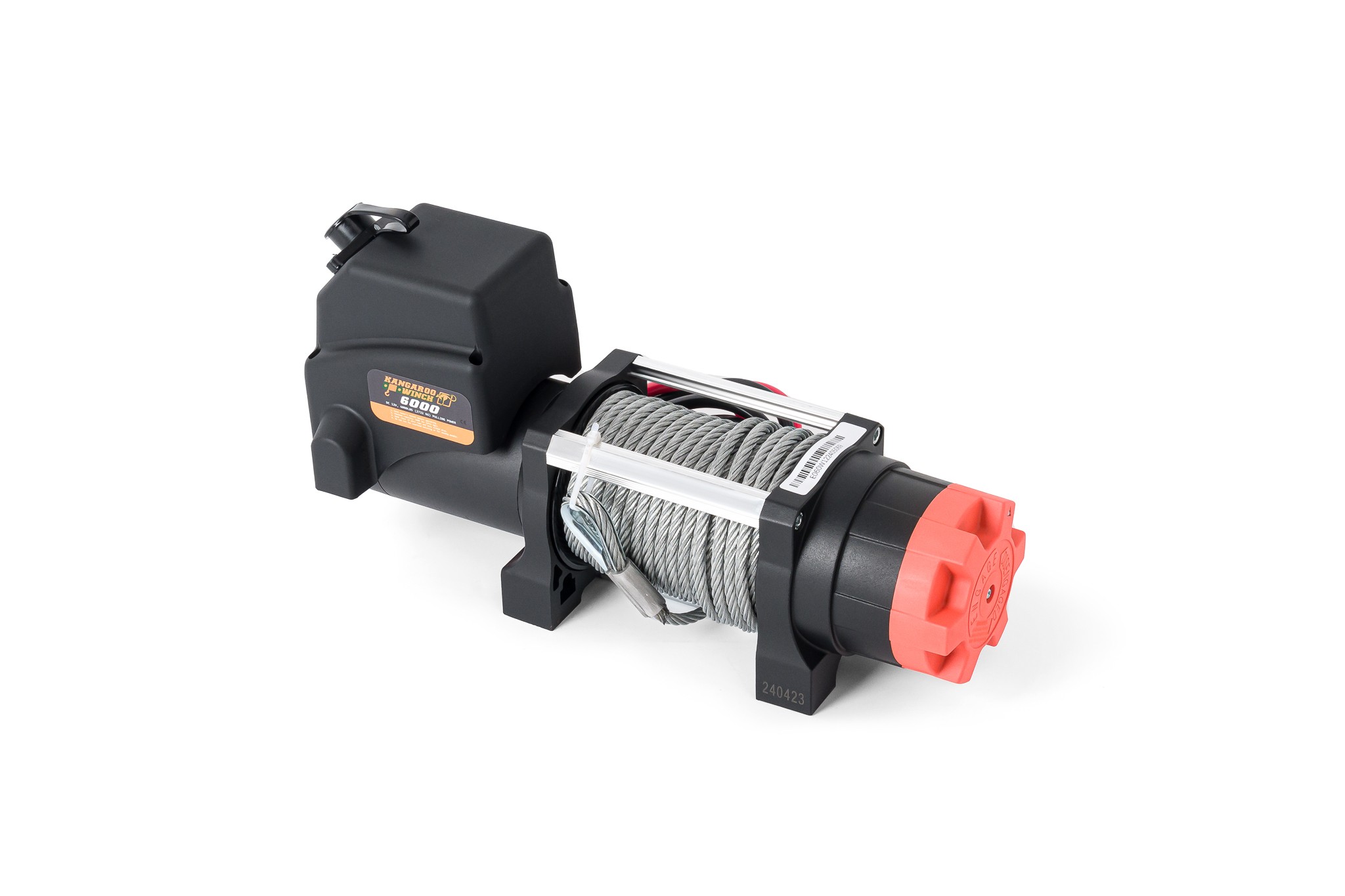

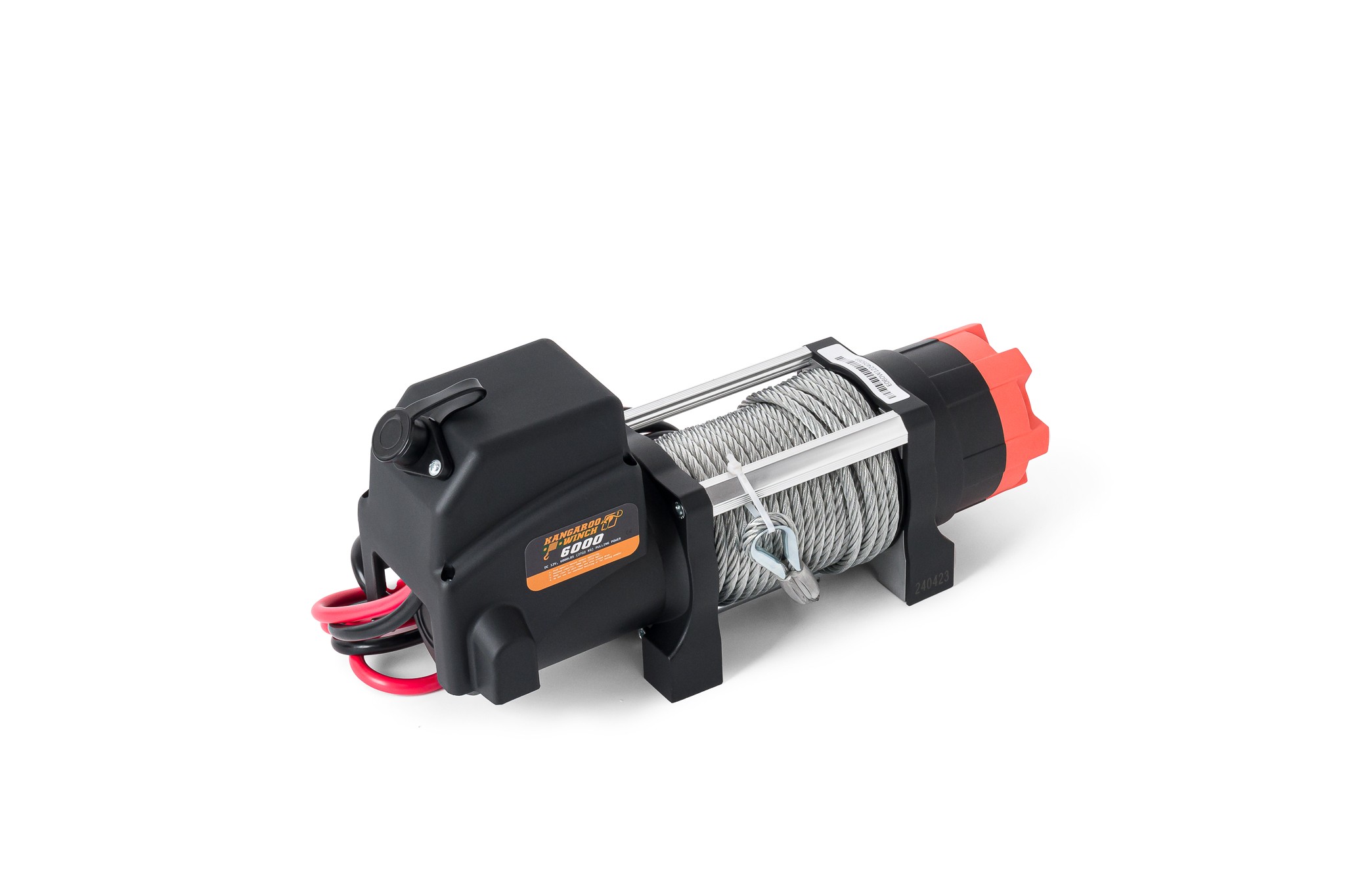

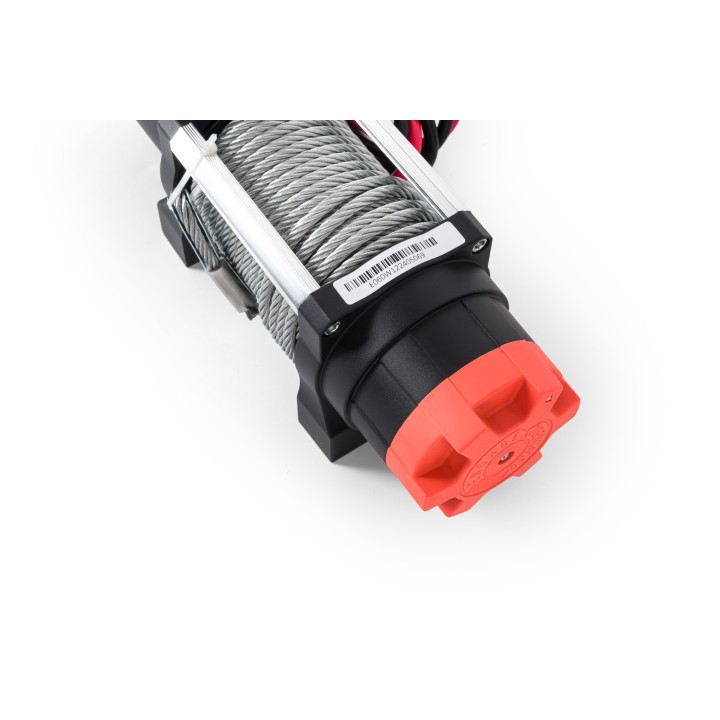

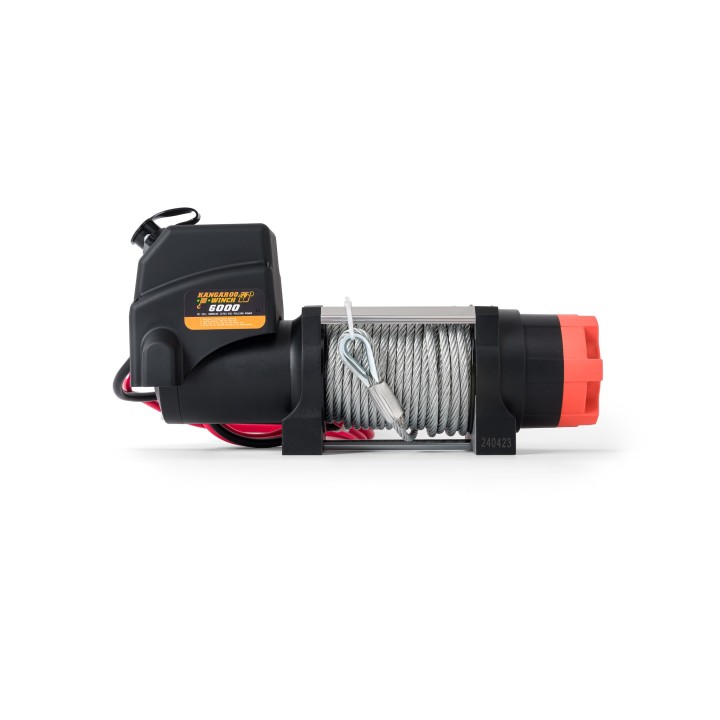

This winch has a premium series wound 12V DC 1.87 hp (1.4 kw) motor, powers load in and out with automatic load holding brake, and free spooling clutch for quick wire rope deployment. The winch housing is made from heavy-duty steel for maximum strength, durability and reliability.

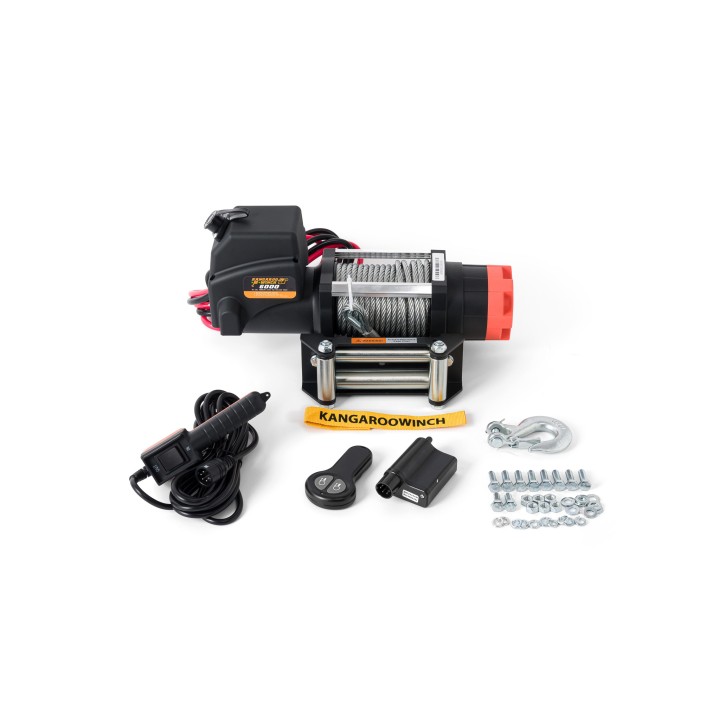

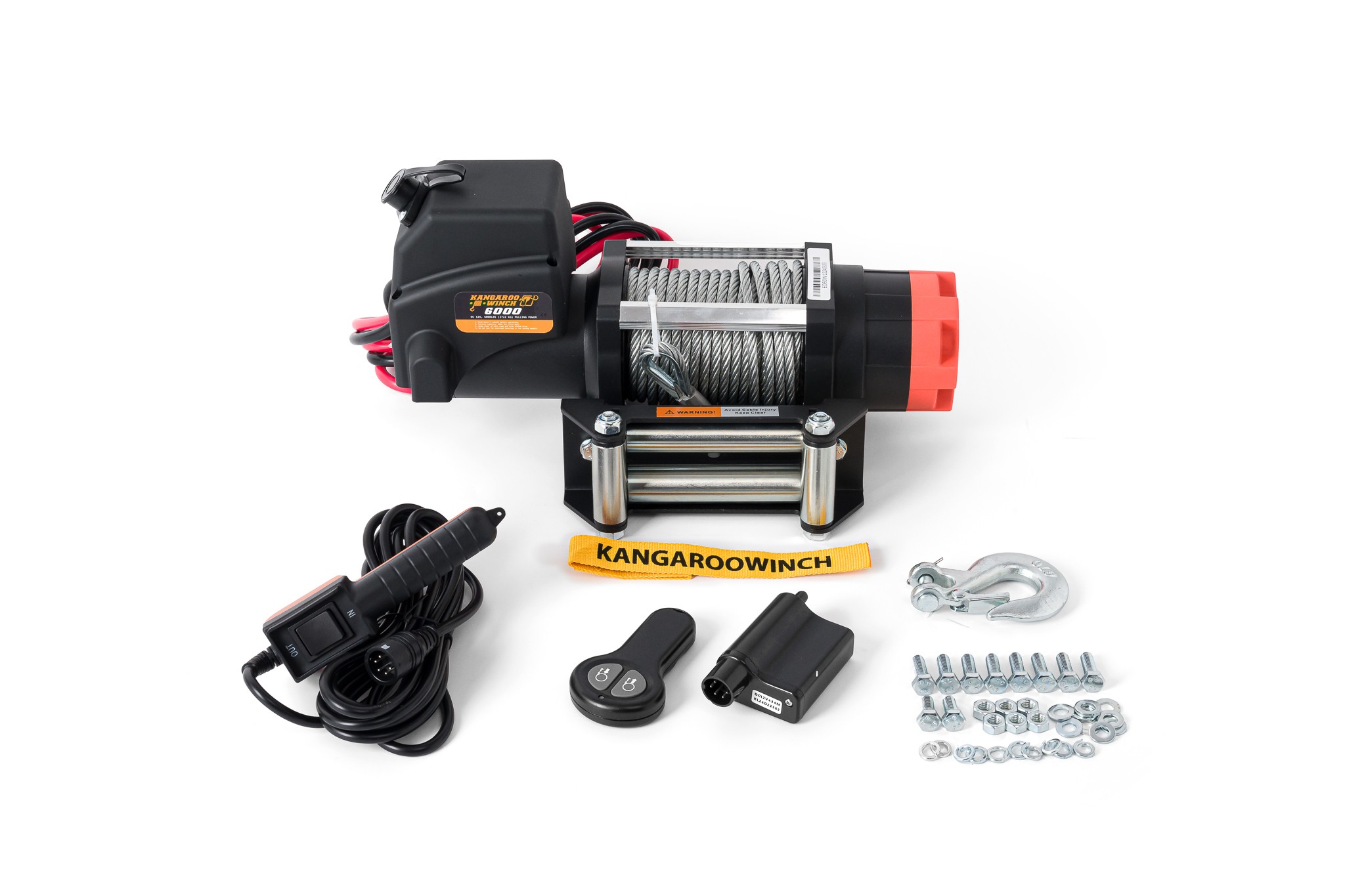

With winch you get:
– Wire rope 6,4 x 16,8 m
– Hook
– Roller fairlead
– Control box
– Cables set
– Wire remote control
– Mounting screws set
– User manual
– Warranty card
| # | Specs | Value |
|---|---|---|
| 1 | Rated line pull | 2722 kg |
| 2 | Motor | 1,9 HP |
| 3 | Gearing | 3-st. planetary |
| 4 | Gear ratio | 226:1 |
| 5 | Voltage | 12V |
| 6 | Solenoid | 350A |
| 7 | Brake | Automatic in the drum |
| 8 | Rope | Wire 6,4 mm x 16,8 m |
| 9 | Fairlead | Roller |
| 10 | Dimensions | 380 x 115 x 190 mm |
| 11 | Drum dimensions | Length – 120 mm |
| 12 | Mounting bolt pattern | 168 mm x 76 mm |
| 13 | Weight | 14.5 kg |
| 14 | Current draw | 12V 0kg – 40A, 2722kg – 250A |
| 15 | Line speed | 2722 kg – 1,2m/min |
