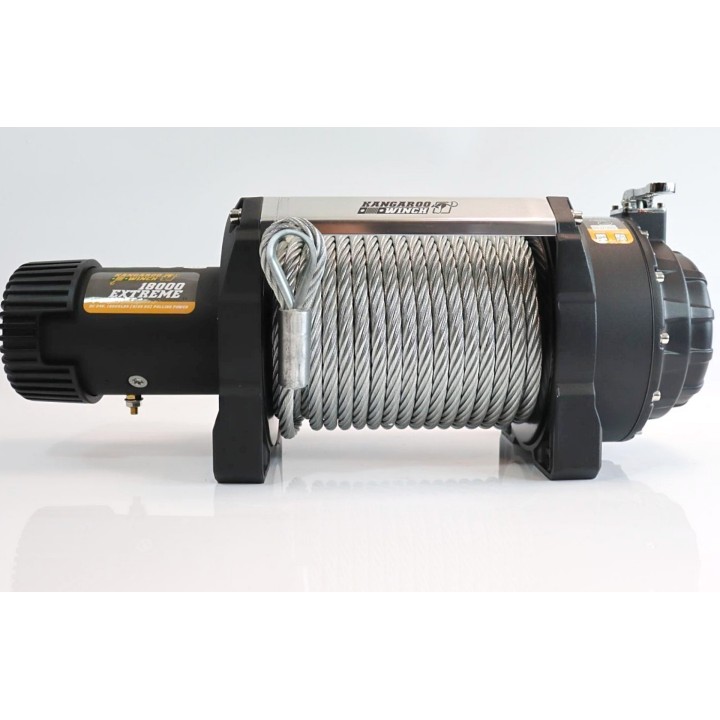

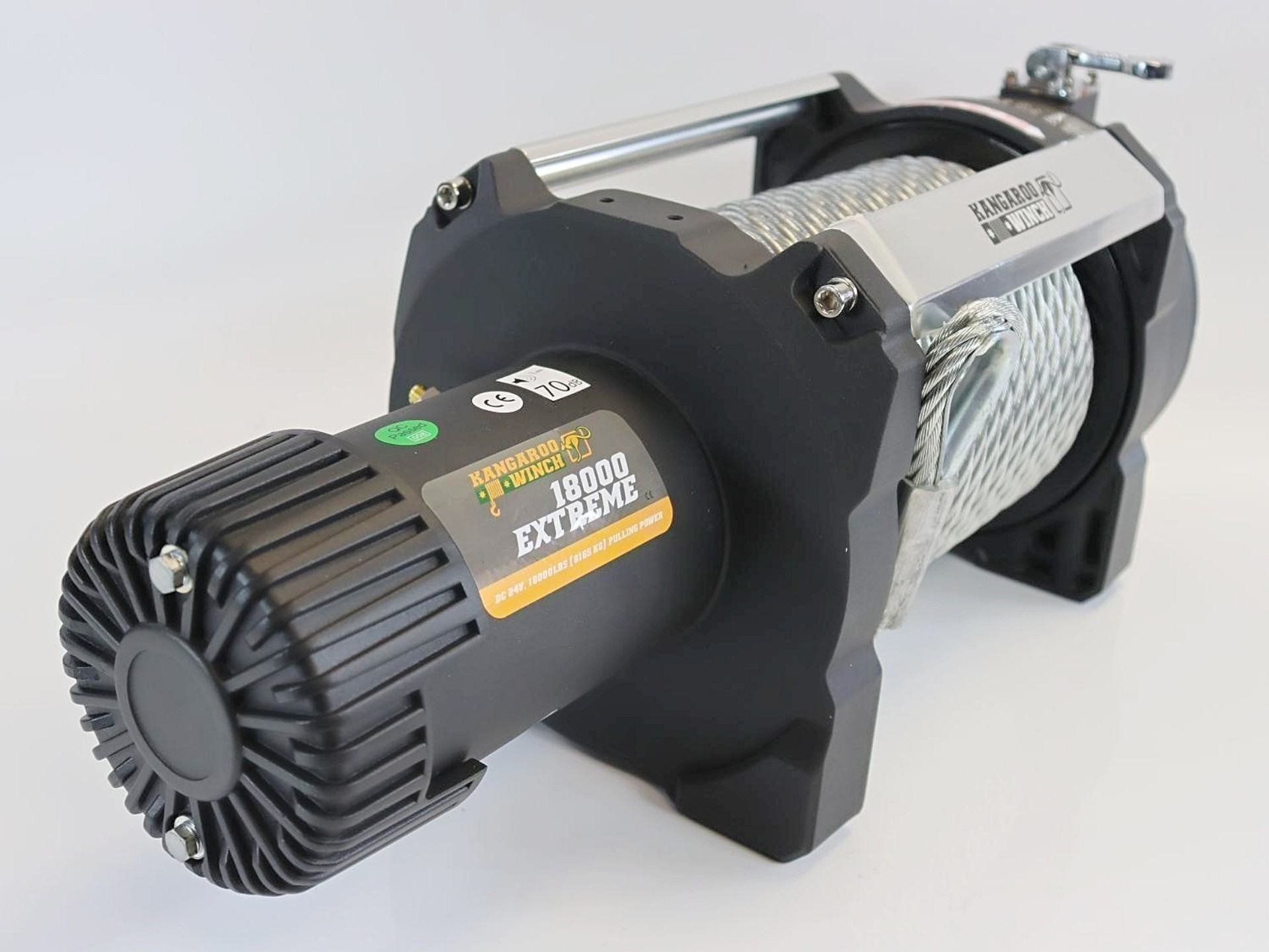

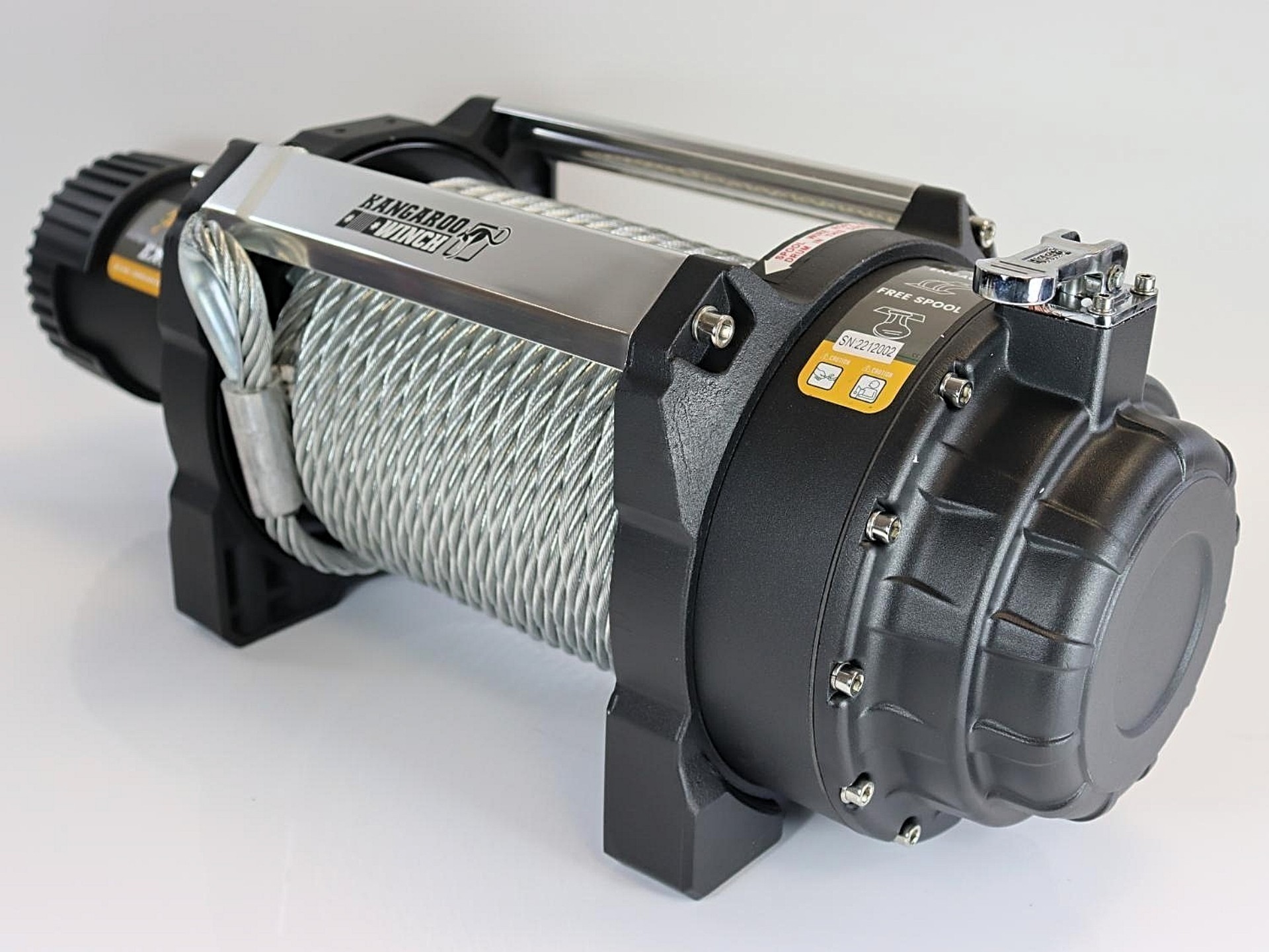

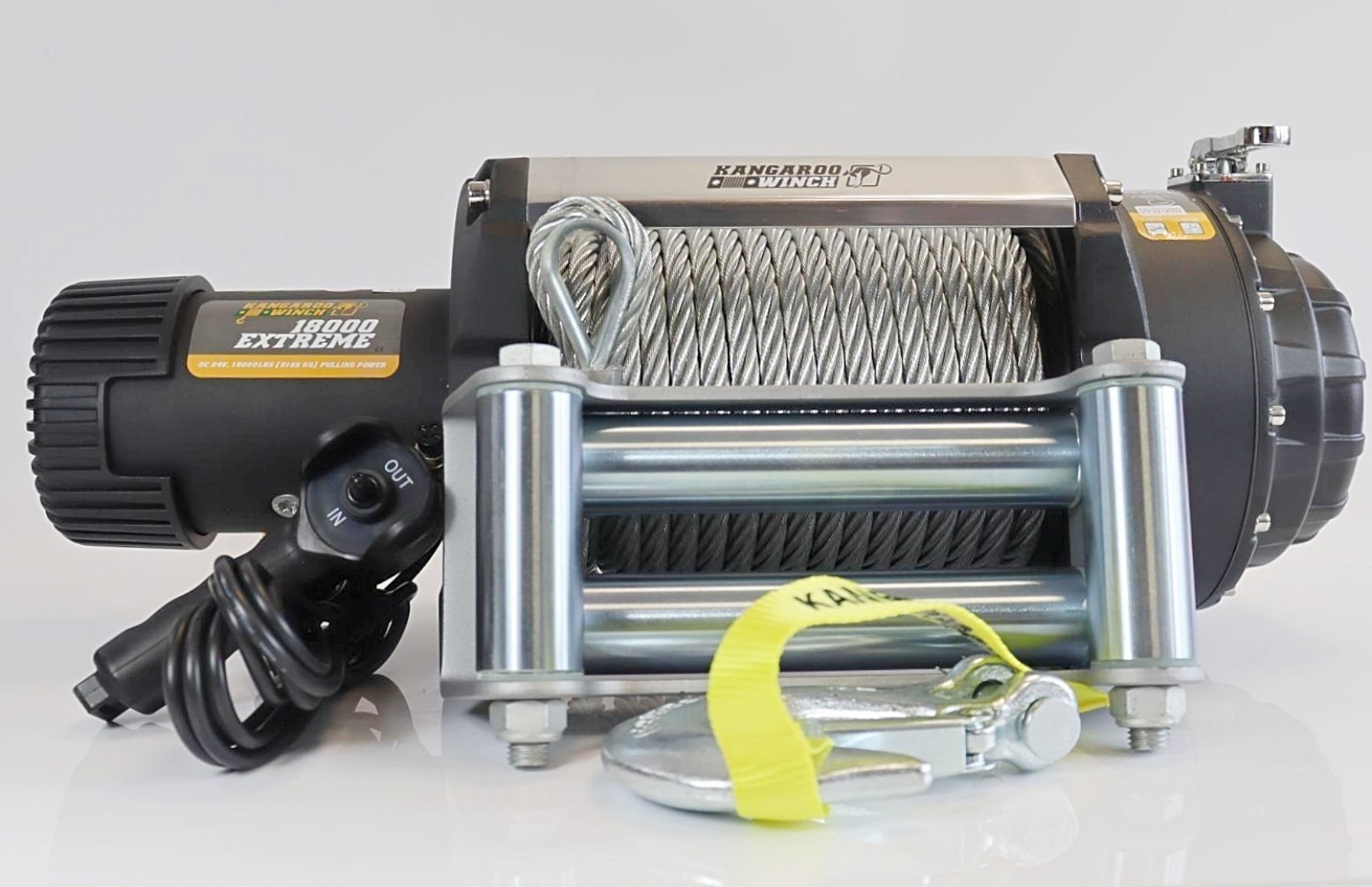

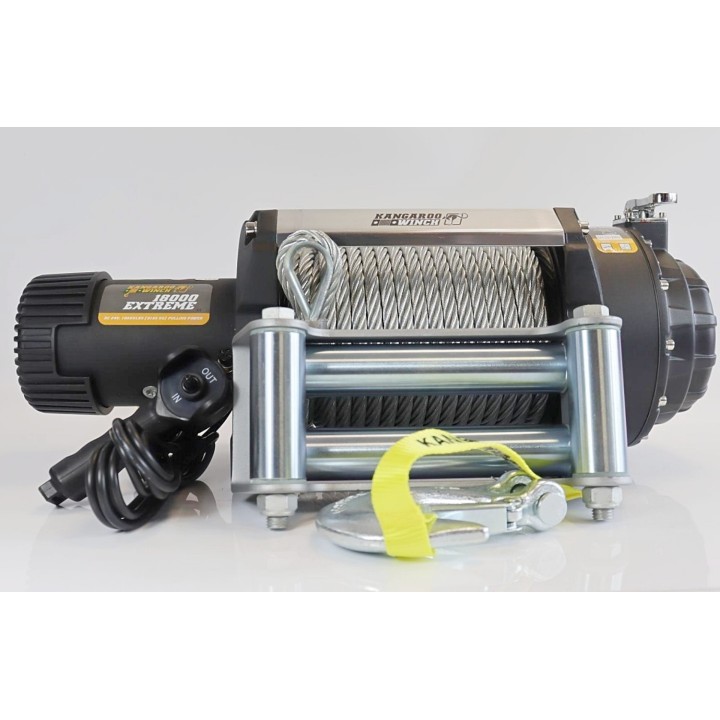

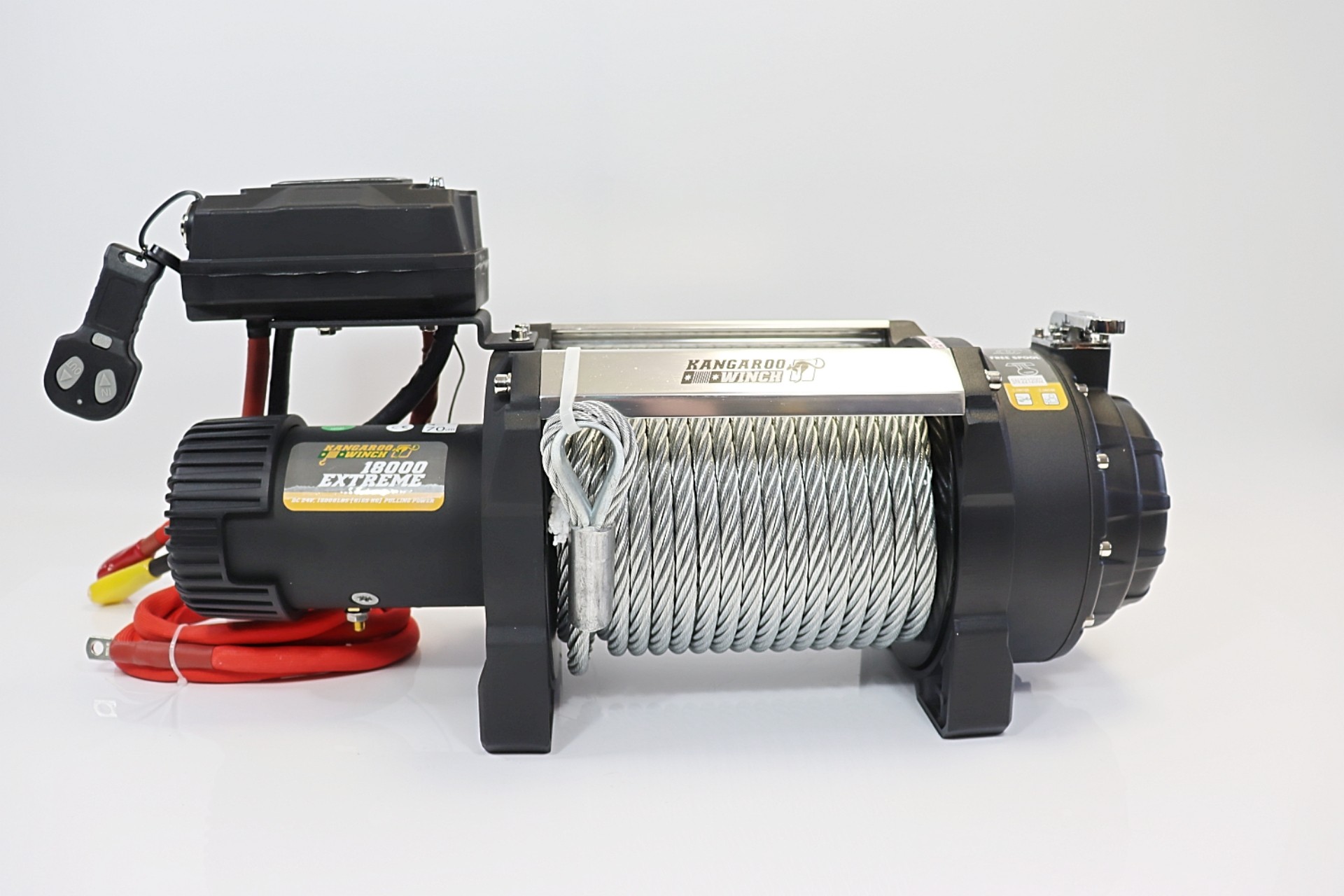

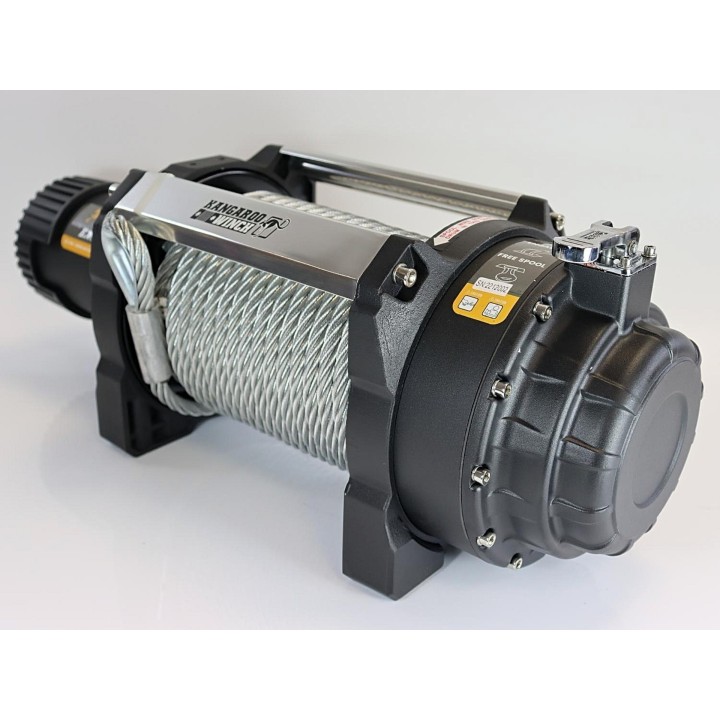

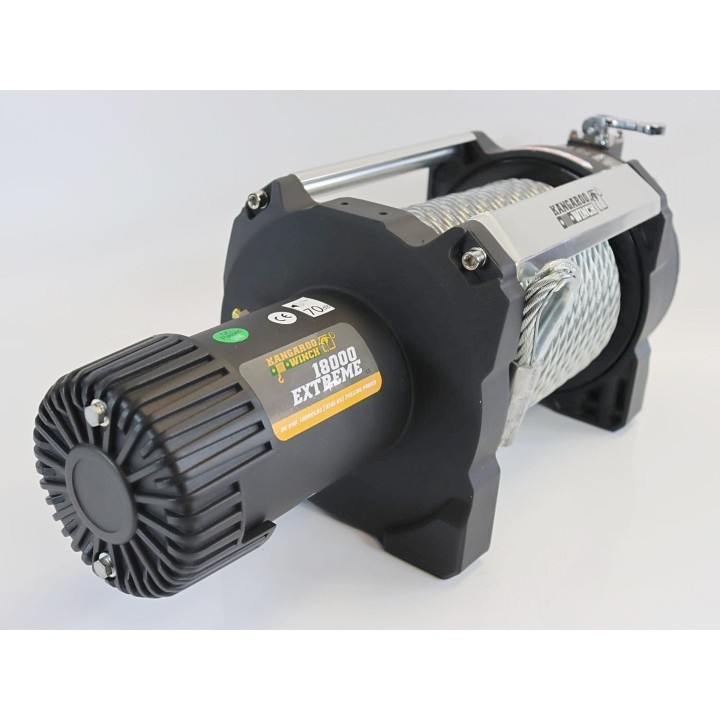

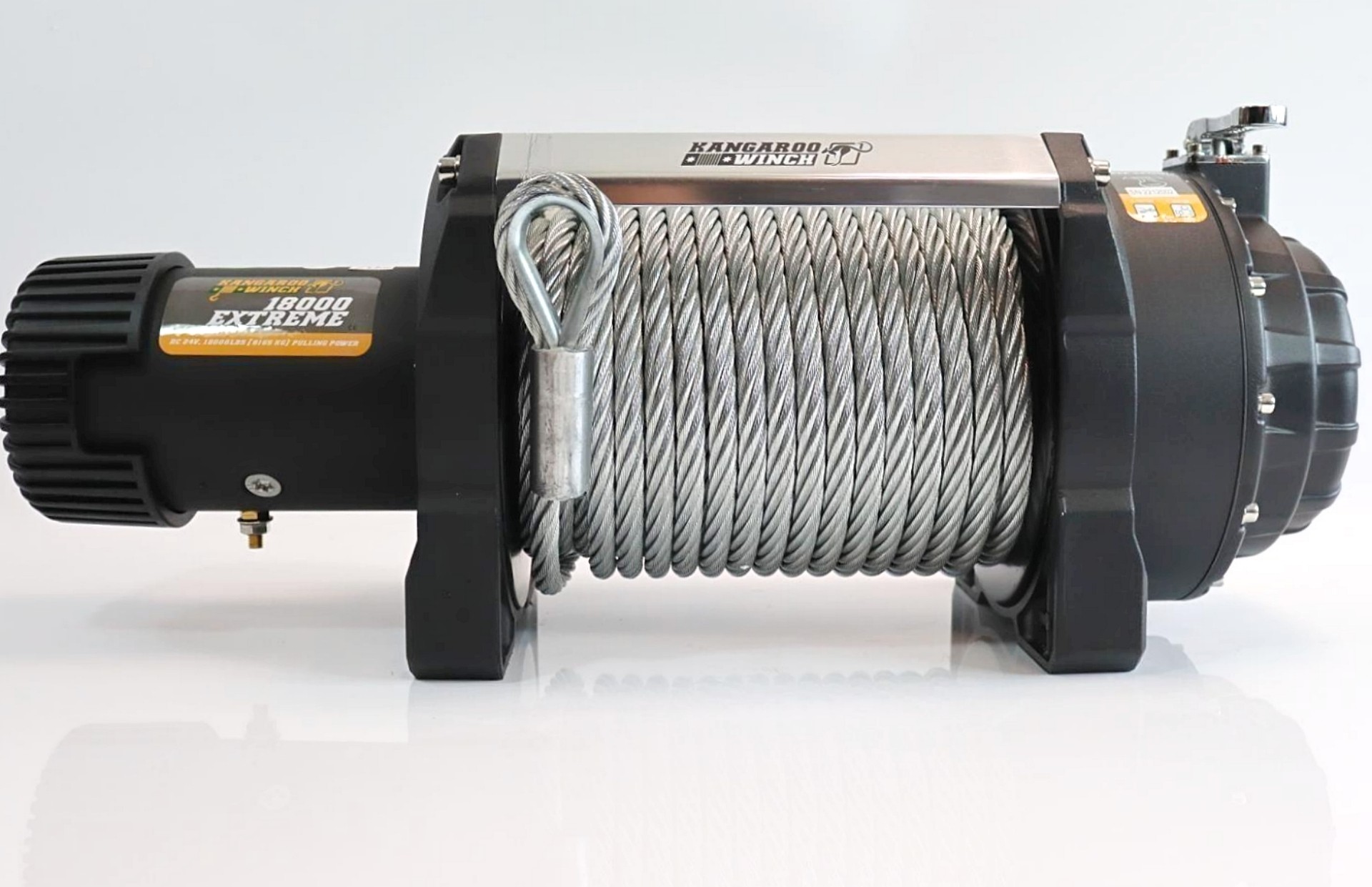

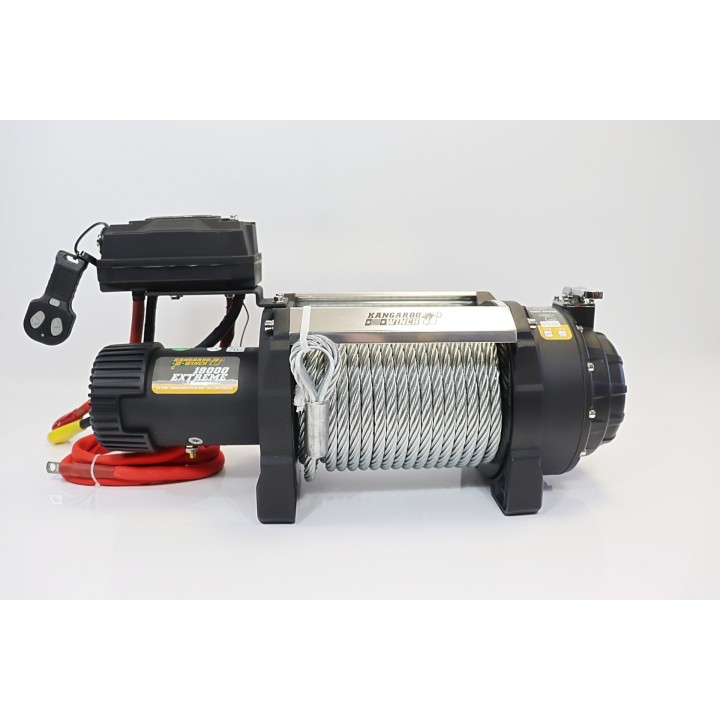

Kangaroowinch K18000 Extreme 24V
Reference: K18000XT-24V
EAN: 5905527760893
Description
Kangaroowinch K18000 Extreme 24V
A large, massive winch for mounting on trucks, the real power of over eight tons will make this winch you can do any, even the hardest work. It doesn't matter if it's getting yourself out of the mud or another car out of a ditch.
An industrial series of winches for professional users. The strong steel construction of the 3-stage planetary gear and the powerful motor connected by two tie rods to the rope roller hold-down device is made for the toughest work in the most difficult conditions. Reliable automatic brake in the drum maintains 100% of the load and allows for safe pulling in and lowering of the load, and the winch connection cables are in a special, additional cover. The set also includes a fuse to protect our engine.
When designing the Kangaroowinch K18000 winch, we made sure that all the elements contributing to the trouble-free operation of the winch were made only of high-quality materials. The winch has mounting feet with mounting holes with Helicoil threaded inserts, super strong, sealed inline ribbed motor, heavy duty brake, "Pick up and Flip" clutch lever, one of the best relays on the market.
# | Spec | Value |
---|---|---|
1 | Pull rate | 8163 kg / 18000 lbs |
2 | Motor | 6,8 KM (5 kW) |
3 | Gear | 3-st. planetary |
4 | Gear ratio | 345:1 |
5 | Voltage | 12V |
6 | Solenoid | 500A |
7 | Brake | Automatic in the drum |
8 | Rope | Wire 11.5mm x 26m |
9 | Fairlead | 4-way roller |
10 | Dimensions | 608 x 216 x 239 mm |
11 | Drum dimensions | 88 x 224 mm |
12 | Mounting bolt pattern | 254 mm x 114,3 mm |
13 | Weight | 60 kgs |
14 | Speed | 3,4 - 7,5 m/min | 11,2 - 24,6 ft/min |
