Radio control LODAR 12-24V, 2-functional, Mini RX master (mini transmitter)
Reference: LOD110002
EAN: 2010000024546
Description
Radio control LODAR 12-24V, 2-functional, Mini RX master (mini transmitter)
Type 9V Alkaline manganese (GP 1604A - JIS 6LF22 - IEC 6LF22 - Eveready 522 - Duracell MN1604)
Power consumption:
At rest: 15 microamperes
During service: 20 milliamps
Protection: IP 55 Registration codes, over 16 million
Temperature range from -10 ° C to + 40 ° C (from 13 ° F to + 104 ° F)
Nominal range 60 meters (200 feet) from the receiver, while driving with instantaneous output without signal loss
The power transmitted 1 mW
EMC exceeds ETSI 300 220. Compliant E11 10R-037601

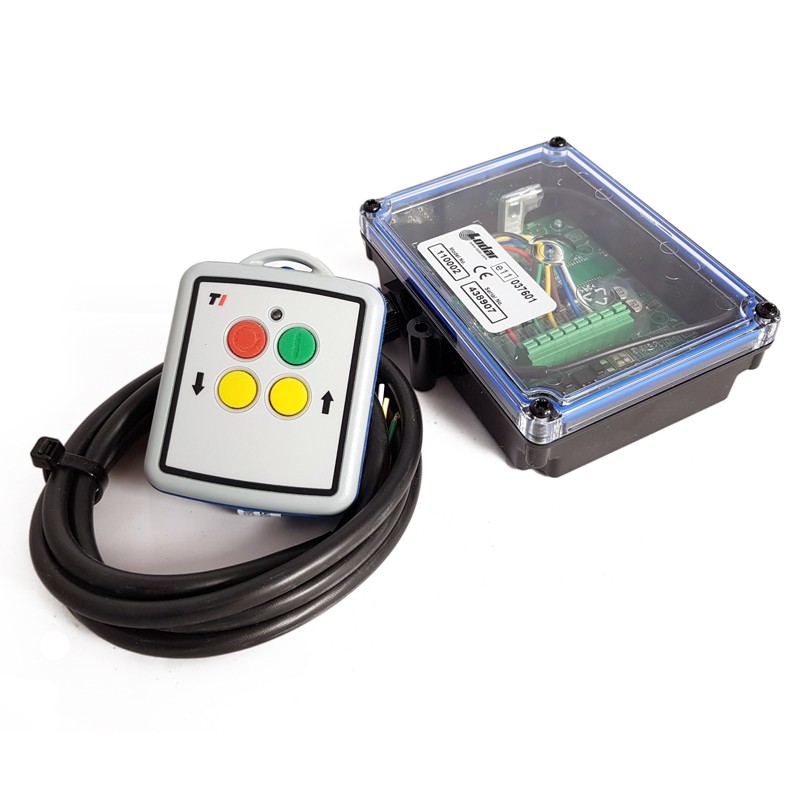

CONTENT
1 x Receiver
1 x Standard transducer
1 x lanyard
1 x LoCover
1 x Instructions
Nominal voltage 12/24 V DC
An absolute maximum of 40 volts DC
A minimum of 8 volts DC
Output switch Internal 12/24 V or external supply up to 80 V DC max
External requires an optional connector (see Accessories Part 9011)
